Service Tools

for use in the MG Series Y



Various special tools were specified for servicing the MG Y Type. Some of these were common to the MG Y, the Y/T and the YB, while others were specifically only required on one model. Unless otherwise specified, these were common to all. Most, but not all of these are documented in Section S of the workshop manuals.

Part number are confusing. The T. part numbers are the Nuffield Group part numbers prior to the 1953 merger into the BMC group. In some cases, with the introduction of the MG YB in 1952 these were revised to full numeric numbers only (no alpha characters. The 18G. part numbers here are the BMC part number codes post merger. Actual engineering drawings for certain of these tools can be found in both the MG Y and Y/T Workshop Manual and the MG YB Workshop Manual enabling them to be remanufactured by a competent tool maker. Both of these workshop manuals are available in electronic form on CD along with many other useful manuals and service books (as well as Let there be Ys by David Lawrence and MG Y Saloons and Tourers by John Lawson) from YZ Publications.

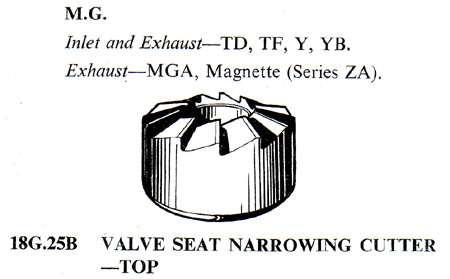

Valve Seat Narrowing Cutter - Top

included in 301075

18G.25B

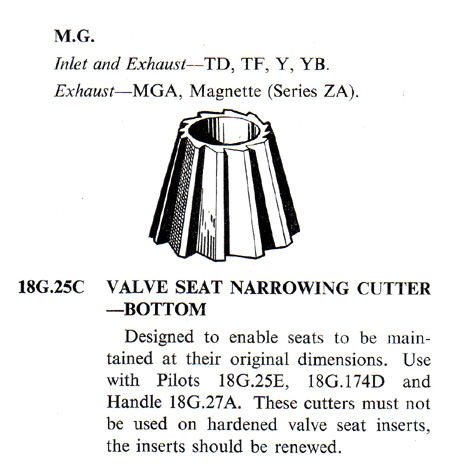

Valve Seat Narrowing Cutter - Bottom

included in 301075

18G.25C

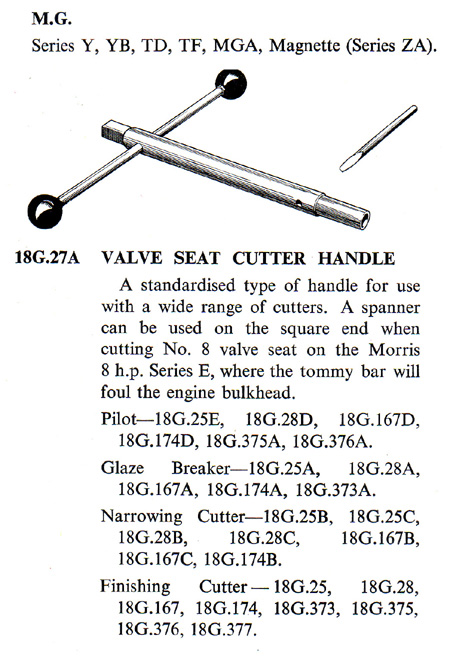

Valve Seat Cutter Handle

included in 301075

18G.27A

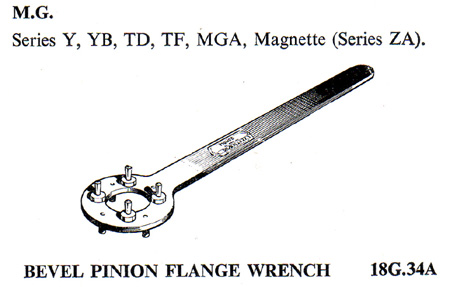

Bevel Pinion Flange Wrench

T.115

18G.34A

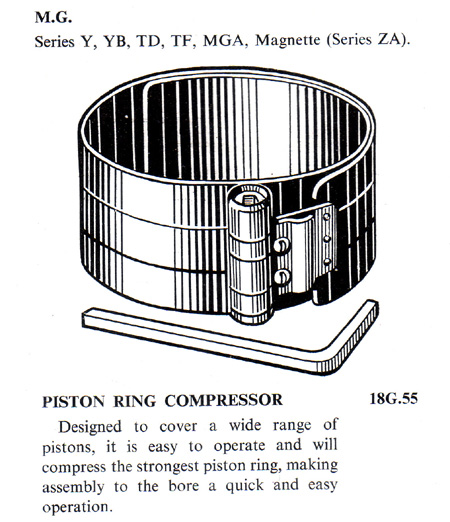

Piston Ring Compressor

18G.55

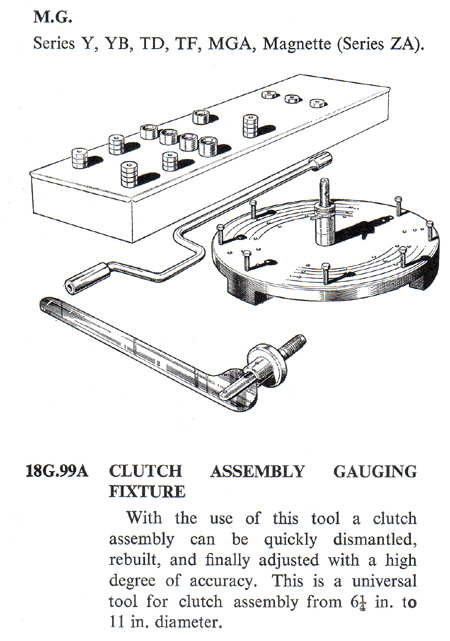

Clutch Assembly Gauging Fixture

18G.99A

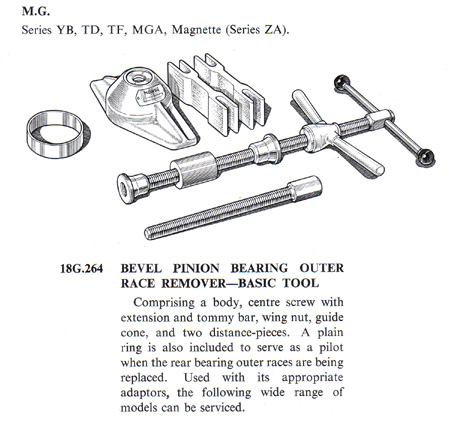

Bevel Pinion Bearing Outer Race Remover - Basic Tool

18G.264D

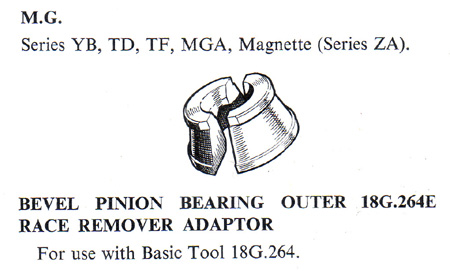

Bevel Pinion Bearing Outer Race Remover Adaptor

18G.264E

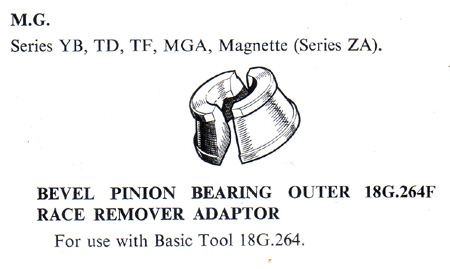

Bevel Pinion Bearing Outer Race Remover Adaptor

18G.264F

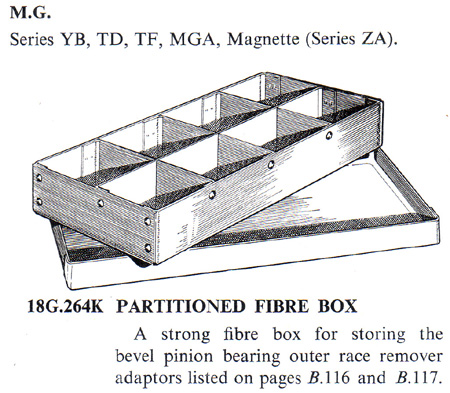

Partitioned Fibre Box

18G.264K

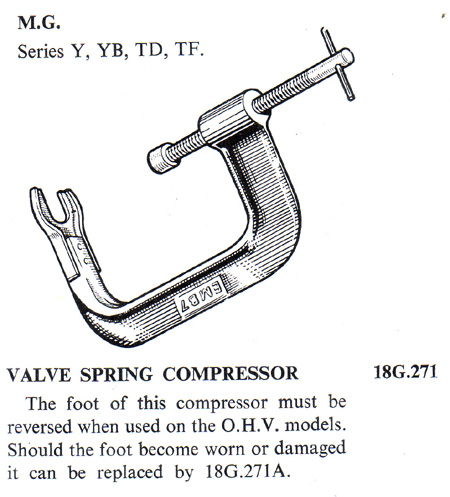

Valve Spring Compressor

18G.271

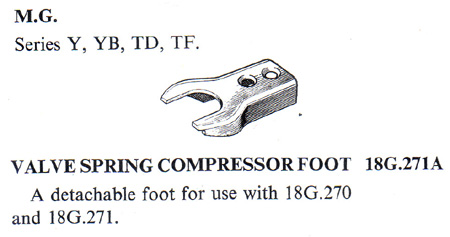

Valve Spring Compressor Foot

18G.271A

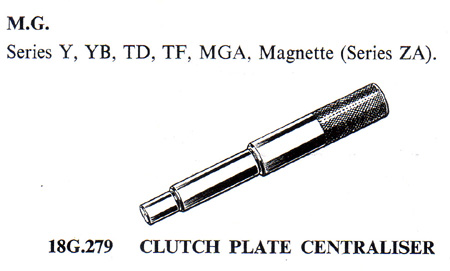

Clutch Plate Centraliser

T.124

18G.279

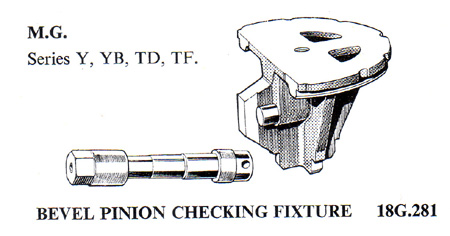

Bevel Pinion Checking Fixture

68829

18G.281

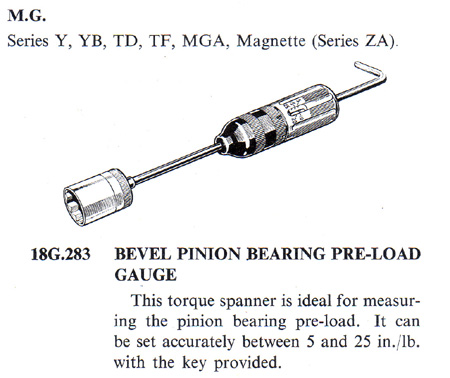

Bevel Pinion Bearing Pre-Load Gauge

68839

18G.283

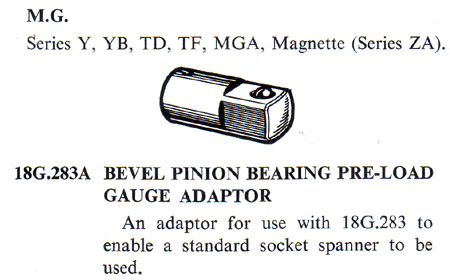

Bevel Pinion Bearing Pre-Load Gauge Adapter

18G.283A

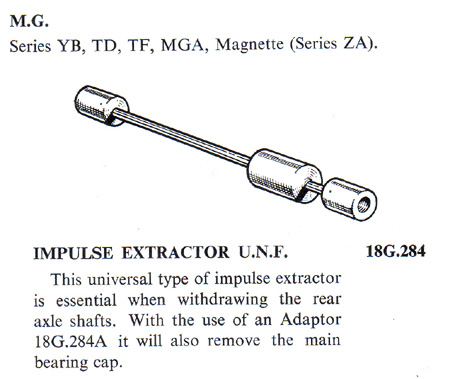

Impulse Extractor U.N.F.

68823

18G.284

YB only

For axles are fitted with ANF threads - use Tool 301203

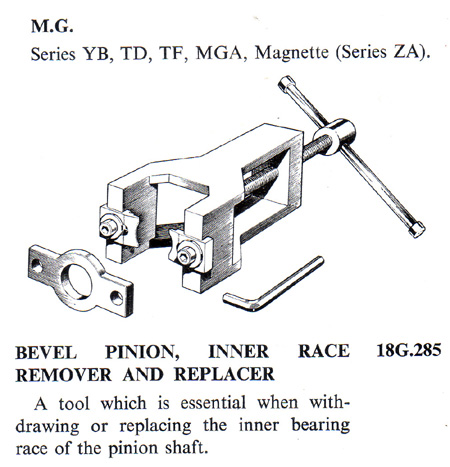

Bevel Pinion, Inner Race Remover and Replacer

301224

18G.285

YB only

Rear Hub Nut Spanner

T.106

18G.301A

YA Y/T only

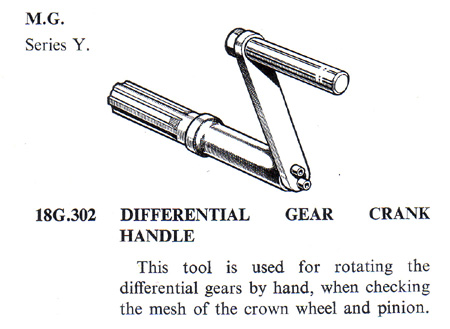

Differential Gear Crank Handle

T.121

18G.302

YA Y/T only

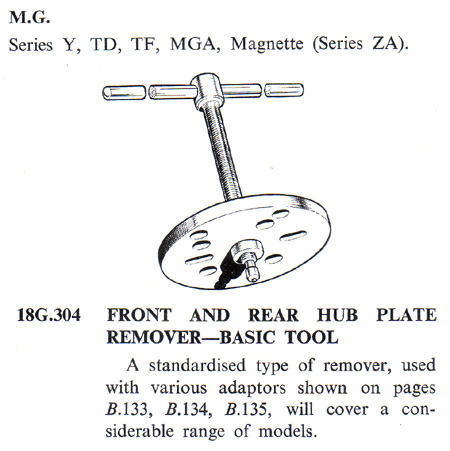

Front and Rear Hub Plate Remover - Basic Tool

68822

18G.304

YB only

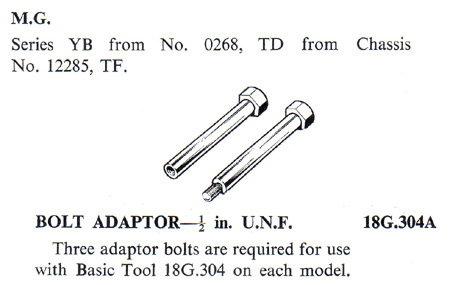

Bolt Adaptor - 1/2 in U.N.F.

301209

18G.304A

From YB 0286 onwards

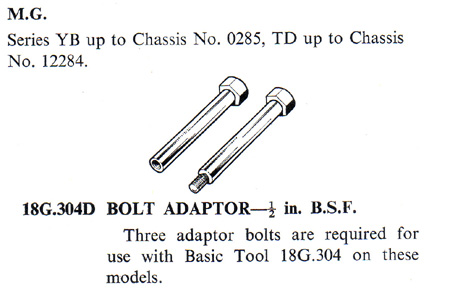

Bolt Adaptor - 1/2 in B.S.F.

18G.304D

YB 0251 - YB 0285only

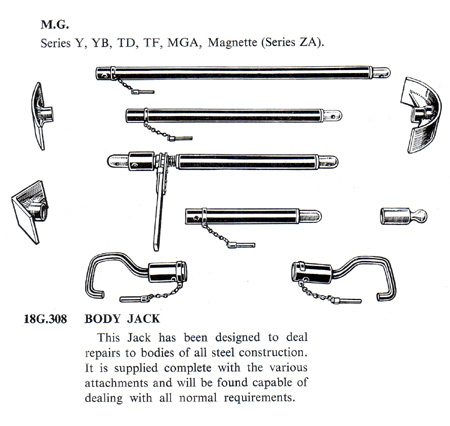

Body Jack

18G.308

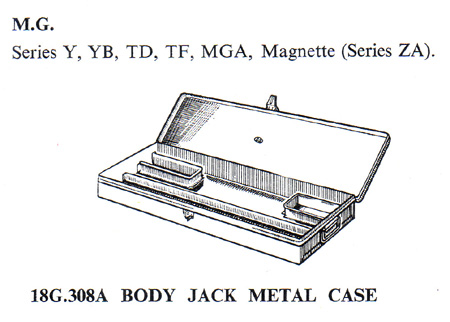

Body Jack Metal Case

18G.308A

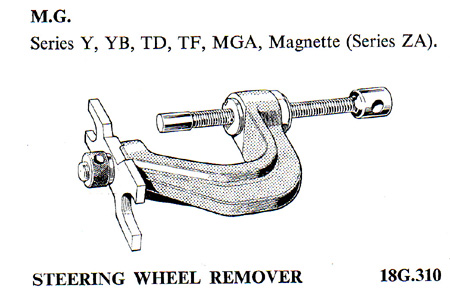

Steering Wheel Remover

68827

18G.310

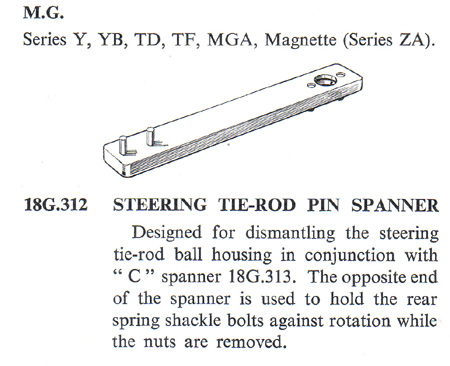

Steering Tie-Rod Spanner

T.122

18G.312

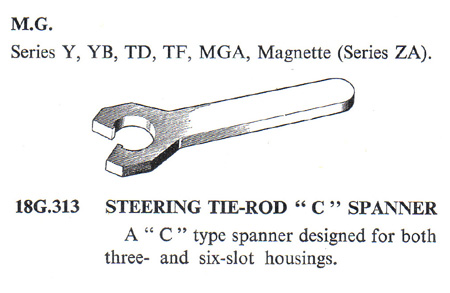

Steering Tie-Rod "C" Spanner

T.114

18G.313

300813 for three slot type

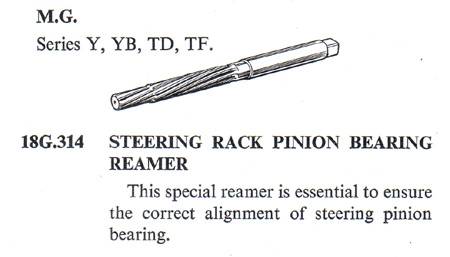

Steering Rack Bearing Pinion Reamer

T.112

18G.314

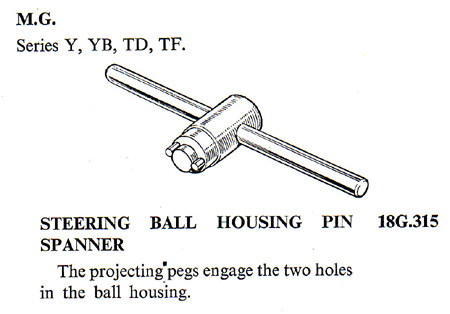

Steering Ball Housing Pin Spanner

T.113

18G.315

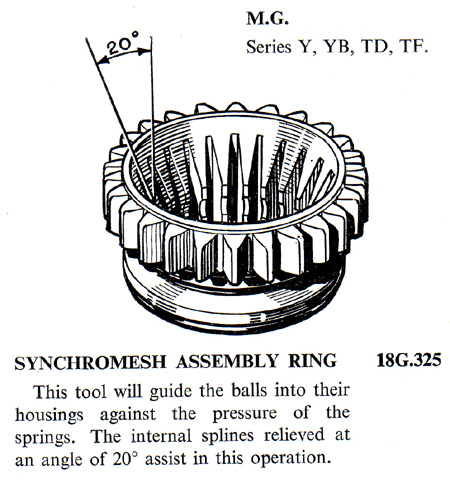

Synchromesh Assembly Ring

T.109

18G.325

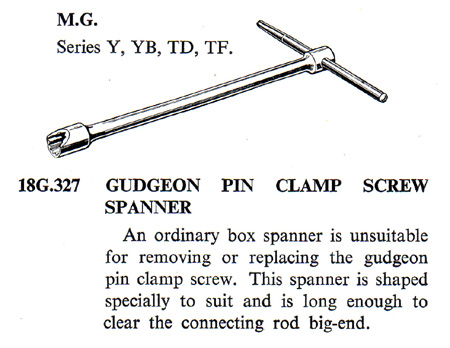

Gudgeon Pin Clamp Screw Spanner

68832

18G.327

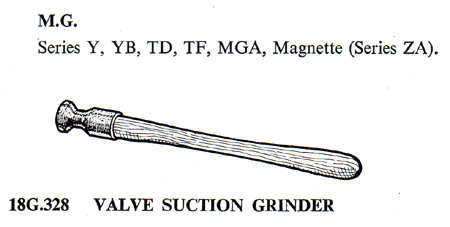

Valve Suction Grinder

66893

18G.328

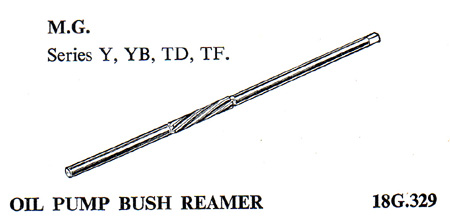

Oil Pump Bush Reamer

68828

18G.329

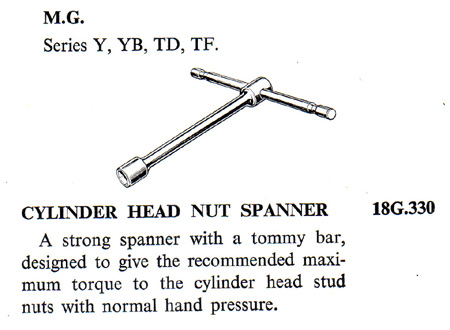

Cylinder Head Nut Spanner

68830

18G.330

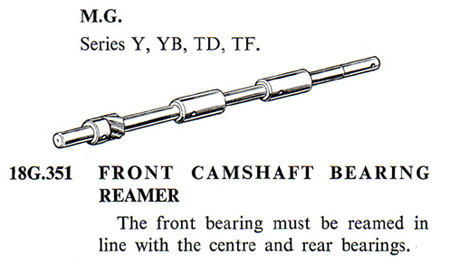

Front Camshaft Bearing Reamer

T.111

18G.351

Crank Shaft and Cam Shaft Gear Remover

T.123

18G.352

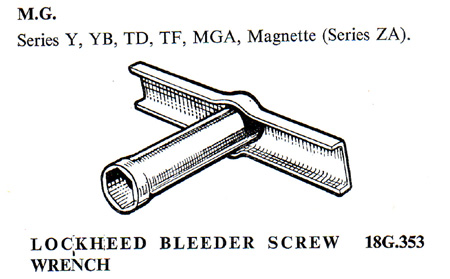

Lockheed Bleeder Screw Wrench

46746

18G.353

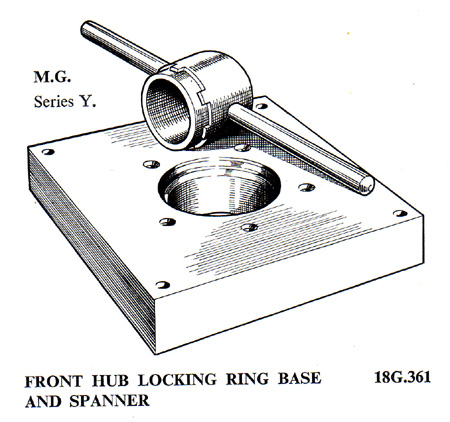

Front Hub Locking Ring Base and Spanner

T.107

18G.361

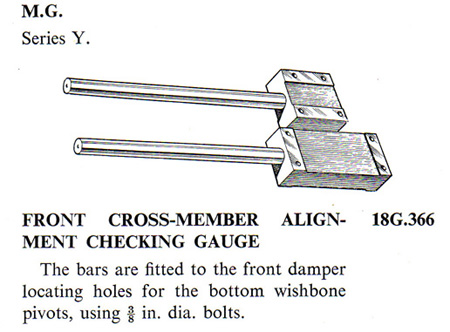

Front Cross-Member Alignment Checking Gauge

T.120

18G.366

YA Y/T only

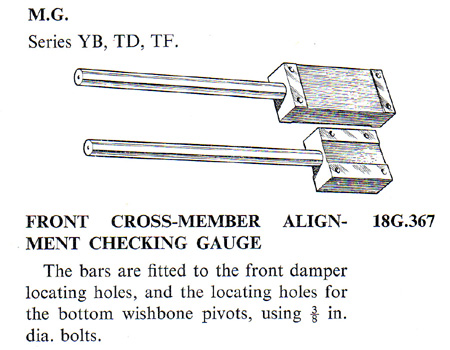

Front Cross-Member Alignment Checking Gauge

T.125

18G.367

YB only

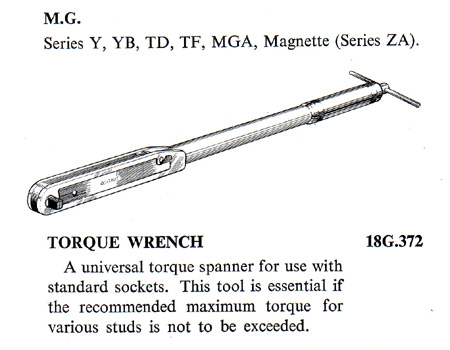

Torque Wrench

T.110

18G.372

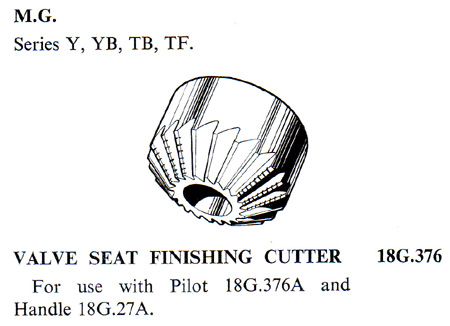

Valve Seat Finishing Cutter

included in 301075

18G.376

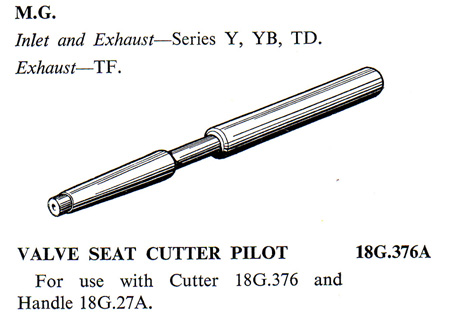

Valve Seat Cutter Pilot

included in 301075

18G.376A
