MG Y Type
Parts Cross Reference page

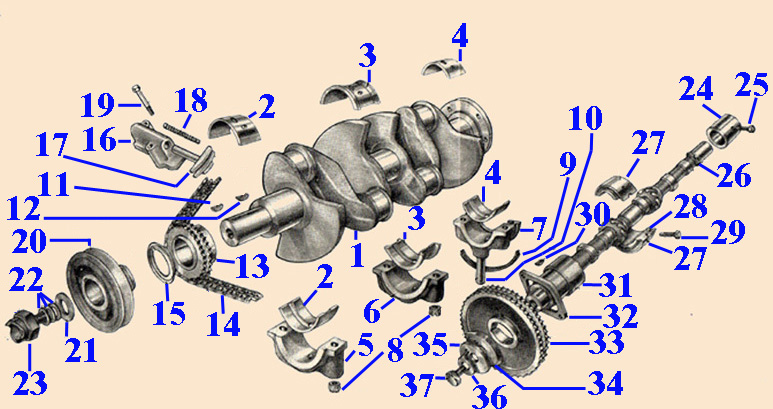

Engine Internal 1

Print

Print

If you find an - error please tell us

1 2 2 3 3 4 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 27 28 29 30 31 32 33 34 35 36 37 internals1

Ref #

Description

Original Equipment MG Part Number

NTG
Part
Number

Moss Europe Part Number

Moss USA Part Number

Amount Required

YA

YT

YB



1

Crankshaft - complete*

(Originally supplied with main and big end bearings - now just the crankshaft)

MG900/3

B165

AAA3105

451-490

1

1

1

Top

2

Crankshaft main bearing (front)

MG862/67

- see footnote.

1

1

1

Top

3

Crankshaft main bearing (inter.)

MG862/10

1

1

1

Top

4

Crankshaft main bearing (rear)

MG862/9

1

1

1

Top

5

Main Bearing Cap (front)

MG862/113

-

-

-

1

1

1

Top

6

Main Bearing Cap (centre)

MG862/112

-

-

-

1

1

1

Top

7

Main Bearing Cap (rear) with pipe

MG862/6

-

-

-

1

1

1

Top

8

Nut for bearing caps

MG679/478

B167

-

-

6

6

6

Top

9

Seal for main cap to sump

MG862/259

6905

291-200

291-200

1

1

1

Top

10

Pipe for rear cap

MG862/116

-

-

-

1

1

1

Top

11

Key (for crankshaft pulley)

P151/185

B262

327-050

327-050

1

1

1

Top

12

Key for chain sprocket

P151/185

1

1

1

Top

13

Chain sprocket

MG862/150

B246

AAA5664

433-440

1

1

1

Top

14

Timing Chain

MG862/170

B005

433-580

433-580

1

1

1

Top

15

Oil thrower for crankshaft

MG862/151

B165A

(Spiggot bush B165B, Cover plate B165C)

433-480

433-480

1

1

1

Top

16

Feed block for tensioner

MG862/428

B005D

(B005 complete)

433-578

complete

433-578

complete

1

1

1

Top

17

Tensioner for chain

MG862/427

B005A

(B005 complete)

433-570

433-570

1

1

1

Top

18

Spring for feed block bolt

MG827/129

B005C

(B005 complete)

329-370

329-370

1

1

1

Top

19

Bolt for feed block

MG862/429

B005B

(B005 complete)

320-150

320-150

2

2

2

Top

20

Pulley (on crankshaft)

B245

433-470

433-470

1

1

1

Top

21

Washer

MG862/154

B248B

433-460

433-460

1

1

1

Top

22

Shim for nut (.125 mm.)

MG862/155

B248C

-

-

As required

Top

Shim for nut (.250 mm.)

MG862/156

Shim for nut (.500 mm.)

MG862/157

23

Nut for crankshaft

MG862/153

B248

433-450

433-450

1

1

1

Top

24

Bearing for camshaft (rear)

MG862/167

B170

(set)

424-968

(set)

424-968

(set)

1

1

1

Top

25

Screwed dowel for bearings

MG862/168

B285C

320-900

320-900

2

2

2

Top

26

Circlip for camshaft (rear)

MG862/163

B261

326-060

326-060

1

1

1

Top

27

Bearing for camshaft (intermediate)

MG862/12

B170

(set)

424-968

(set)

424-968

(set)

1

1

1

Top

28

Plain dowel for bearings

MG679/173

-

-

-

2

2

2

Top

29

Screwed dowel for bearings

MG862/168

B285C

326-060

326-060

2

2

2

Top

30

Key for chain sprocket

P151/185

B262

327-050

327-050

1

1

1

Top

31

Bearing for camshaft (front)

MG862/164

B170

(set)

424-968

(set)

424-968

(set)

1

1

1

Top

32

Thrust plate for camshaft

MG862/169

B285A

433-400

433-400

1

1

1

Top

33

Chain sprocket

MG862/159

B247

AAA5666

433-430

1

1

1

Top

34

Oil thrower for camshaft

MG862/162

B260

433-390

433-390

1

1

1

Top

35

Washer for chain sprocket

MG862/160

B259

433-380

433-380

1

1

1

Top

36

Lock washer for chain sprocket

MG862/161

B284B

433-370

433-370

1

1

1

Top

37

Bolt for camshaft

MG862/366

B284C

320-670

320-670

1

1

1

Top



Crankshaft bearings, replacement sets.

Crankshaft bearings are only available as full set replacements and the part numbers vary according to oversize requirements.



Oversize

NTGPart Number

Moss Europe Part Number

Moss USA Part Number

Main Bearing Set

Standard

B200

424-650

424-650

0.010"

B201

424-750

424-750

0.020"

B202

424-800

424-800

0.030"

B203

424-850

424-850

0.040"

B204

424-900

424-900

0.050"

B205

424-905

424-905

0.060"

B206

424-910

-
