Brian Kraus

Images and text taken from Brian's Home Page, click here.

Click on the images for larger versions


Doner Cars - One disassembled and forgotten 1976 MG Midget bought for $500, and my freshly totaled 1976 Blaze Orange Midget.  Various Mazda RX-7's.

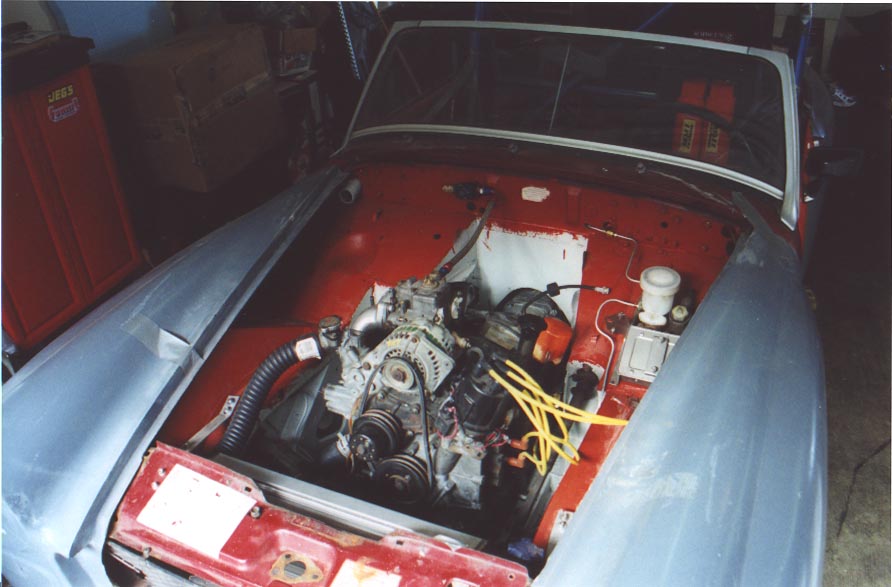

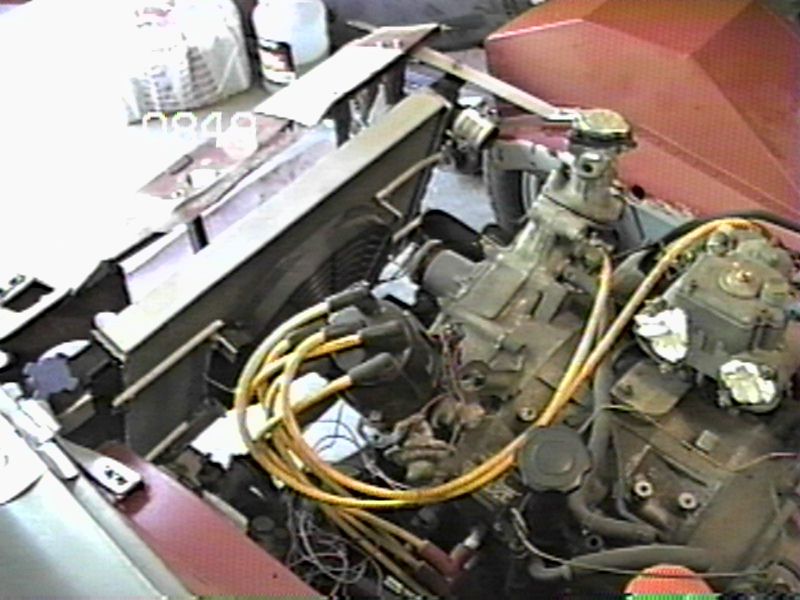

Motor – ’86 Mazda RX-7 13B Rotary

Transmission – ’86 Mazda RX-7 5 speed, 84 B2000 tailshaft housing and shift rod ends

Rear Axle – ‘84/85 Mazda RX-7 GSLE, 4.10 ratio, Limited Slip, narrowed to fit Midget

Front Suspension – Nylatron bushings, 30% stiffer shocks, lowered 2.5”, ” sway bar, 340 lb springs

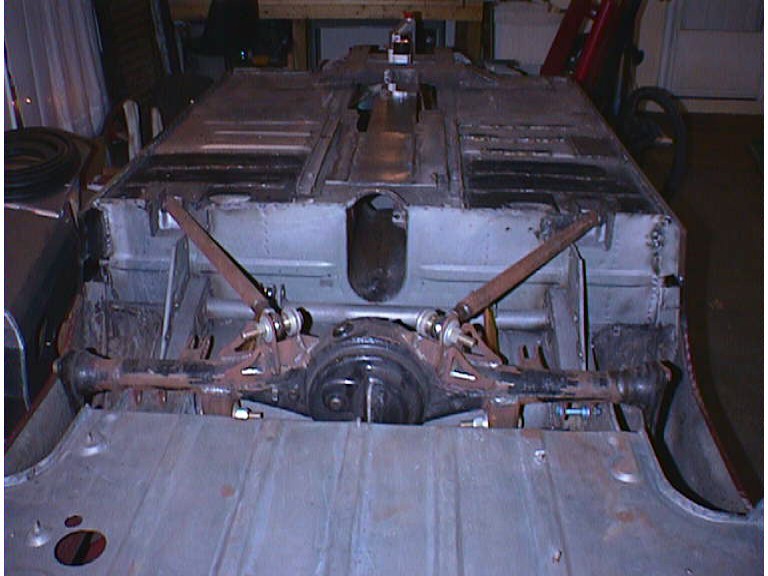

Rear Suspension – Custom 4-link with coil over shocks

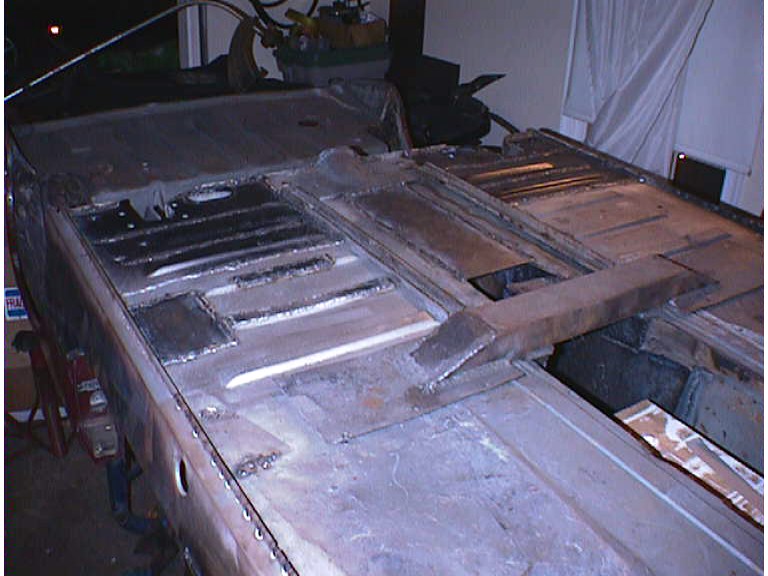

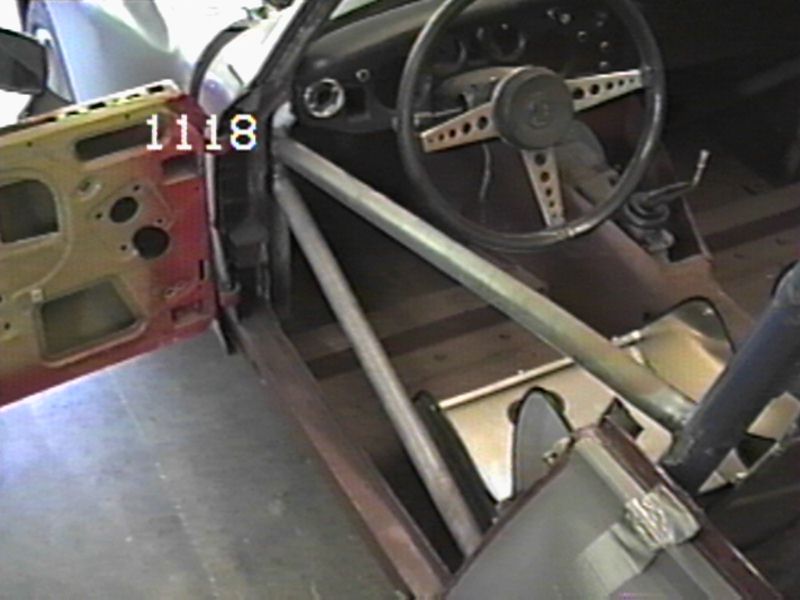

Chassis – slight modification for rear suspension, full roll cage to connect all suspension points

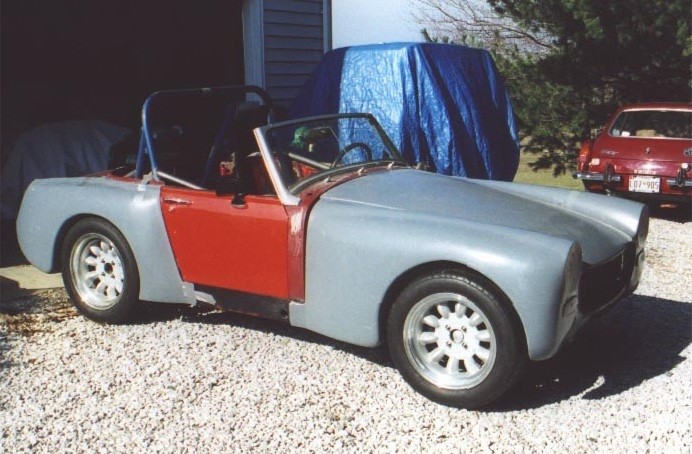

Body – Fiberglass fenders and hood from The Winners Circle

Wheels / Tires – 15x8” Superlite wheel, 225/50/15 Kumho R compound tires

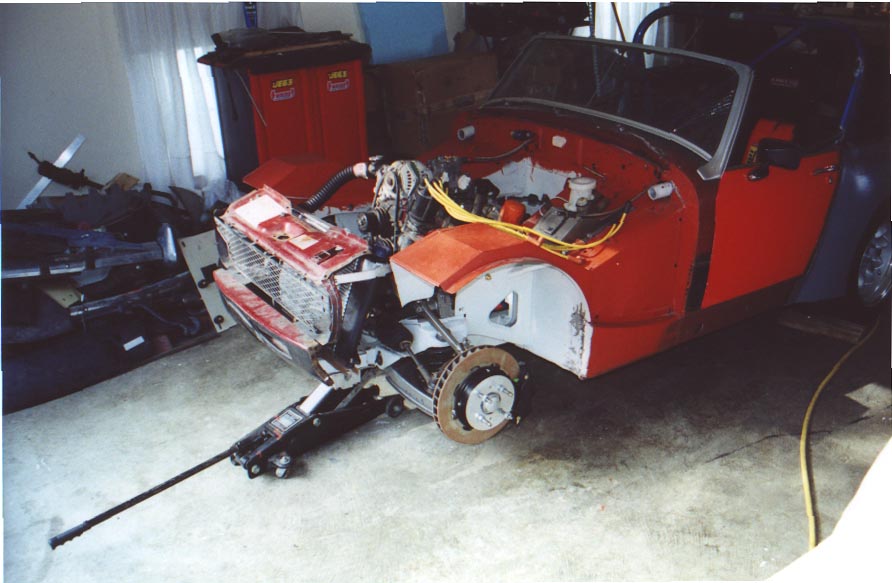

Brakes –  F - 11.75 x 1.24” Wilwood ultralight rotors, modified rotor hats,  Wilwood Dynalite II  calipers

               R - 10” X .8” vented Mazda rotors, stock Mazda rear calipers
