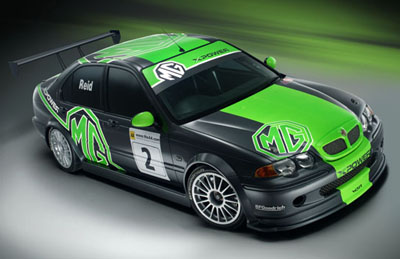

MG ZS EX259 Touring Car Technical Specifications
Engine |
KV6, 6-cylinder - naturally aspirated V6 24v with fuel-injection |
Capacity |
Two-litre, 1997cc |
Power |
c270Ps produced with max. revs at 8,500 rpm |
Oil system |
Wet sump with single oil/water heat exchanger |
Cooling system |
Single water radiator |
Transmission |
6-speed gearbox with sequential gear selection |
Clutch |
5½" triple-plate sintered metallic |
Chassis |
Fully seam-welded bodyshell, with integrated roll cage |
Suspension - front |
Double wishbones |
- rear |
Lower wishbones with camber and toe adjustment links |
Anti-roll bars front & rear |
|
Brakes - front |
343mm dia x 32mm thick ventilated discs with 6-piston calipers |
- rear |
290mm dia x 9.5mm thick solid discs with twin-piston calipers |
Wheels |
Aluminium alloy |
17" diameter on 9J rims |
|
Tyres - front & rear (cm/ratio) |
24/61 x 17" |
Steering |
Rack & pinion |
Instrumentation |
Digital dash display and date logging system |
Dimensions |
|
Length |
2650mm |
Width |
1700mm |
Wheelbase |
2620mm |
Weight |
1150kg (including driver) |
Fuel tank capacity |
60 litres |
