Radiomobile Manuals

An optional accessory for the MGTD and MGTF was a mobile radio called the Smiths Radiomobile. This was made by His Master's Voice. The early TD used the 100 model, the later the 4100 and the TF used the 4202/4203 models. The tuner and speaker was installed in the glovebox and the tube amplifier was mounted under the scuttle. The radio antenna was mounted just forward of the passenger door on the outside.

There is a good article from Hemmings on the Radiomobile's.

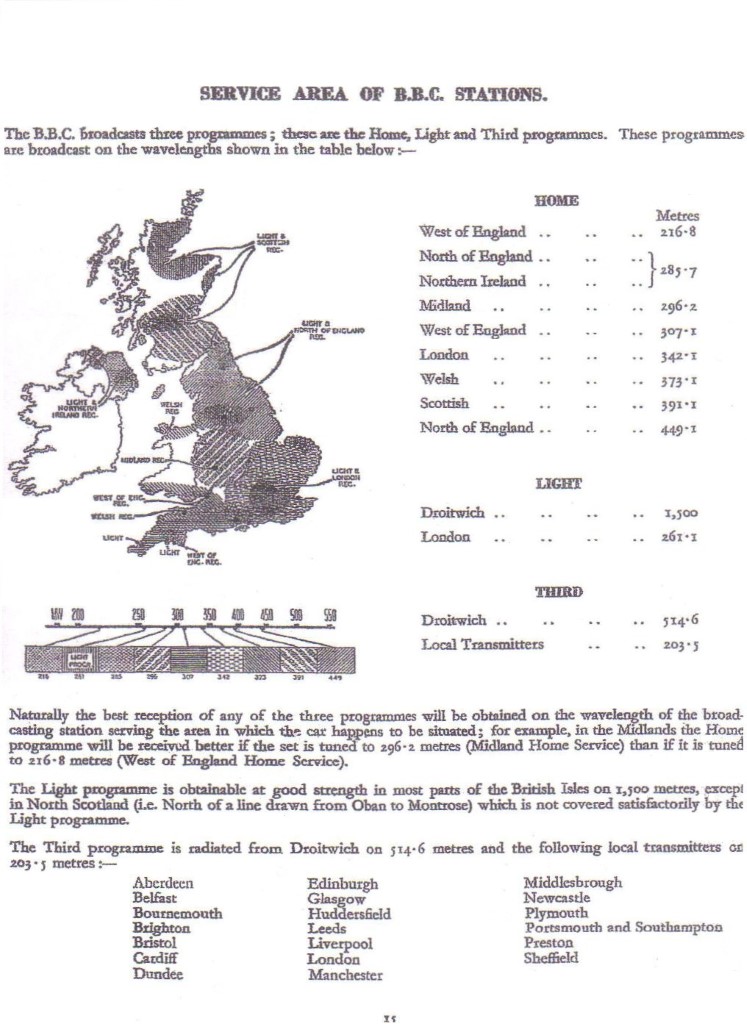

4100-4202 User Manual

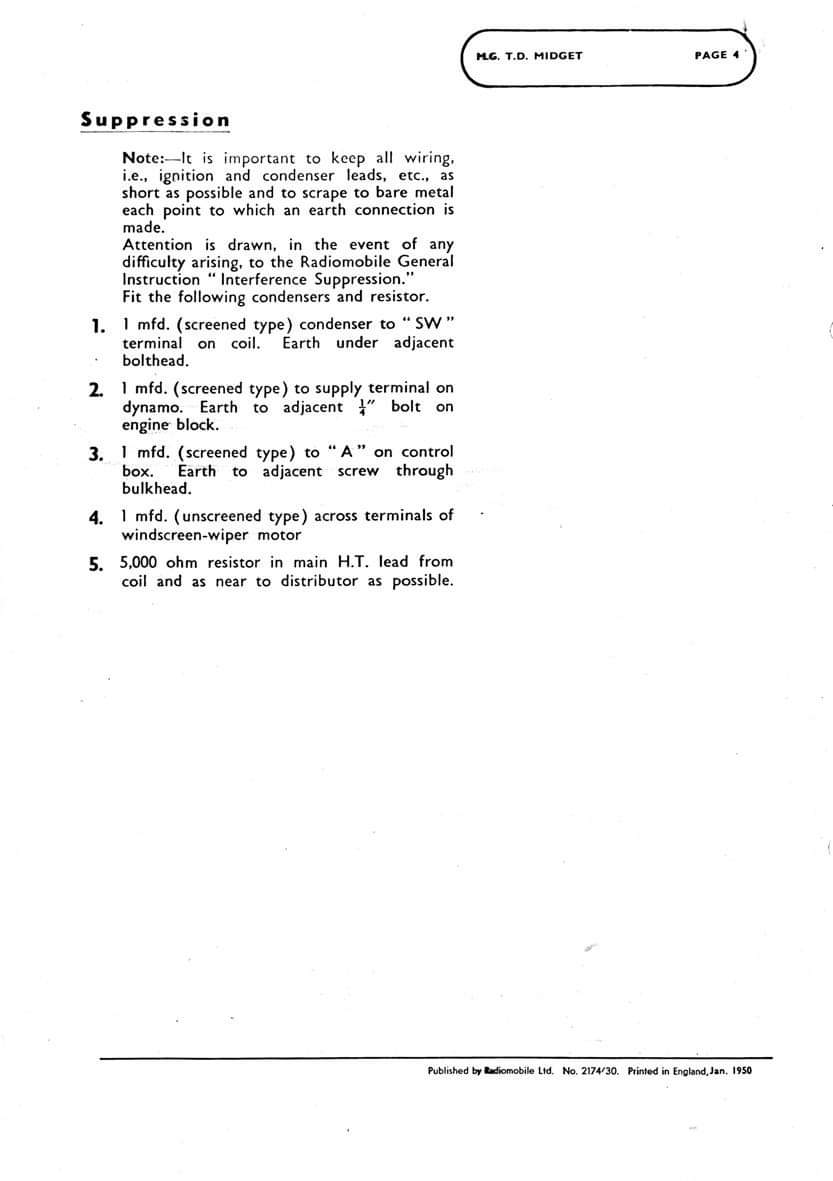

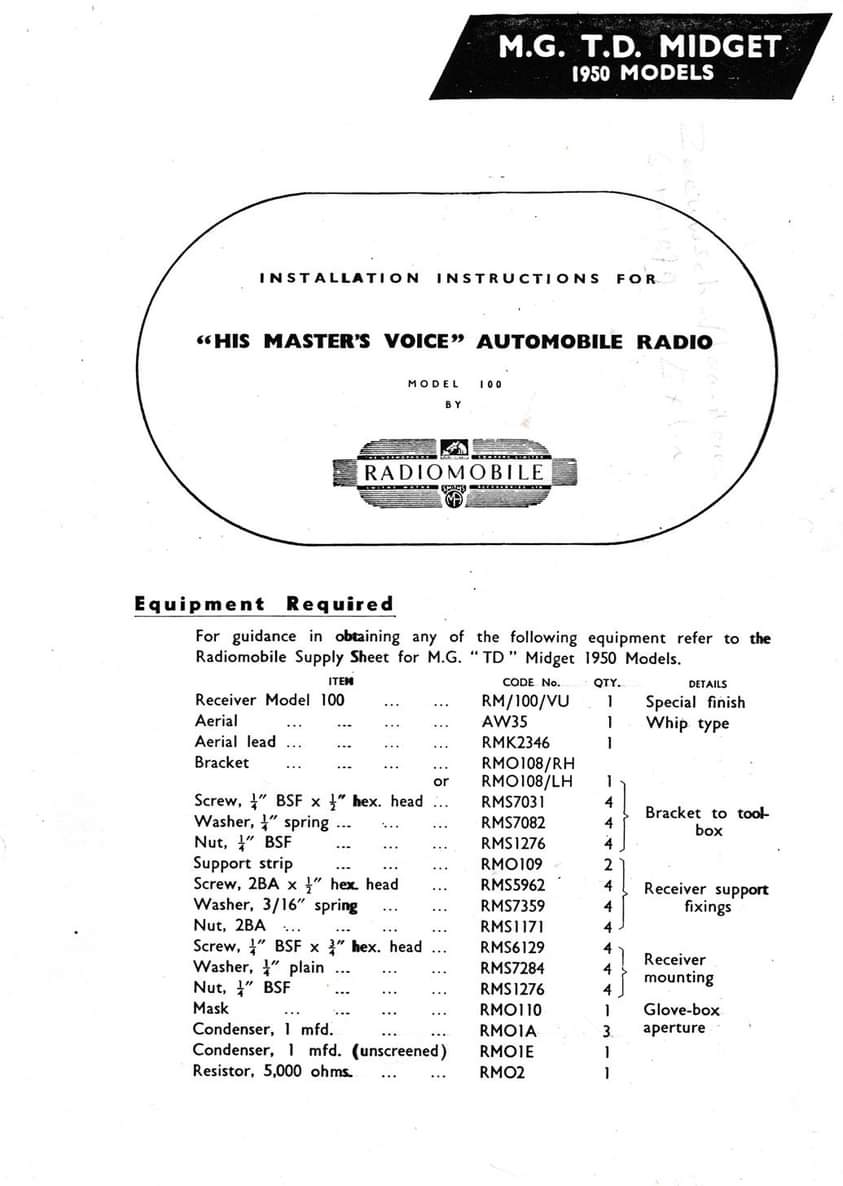

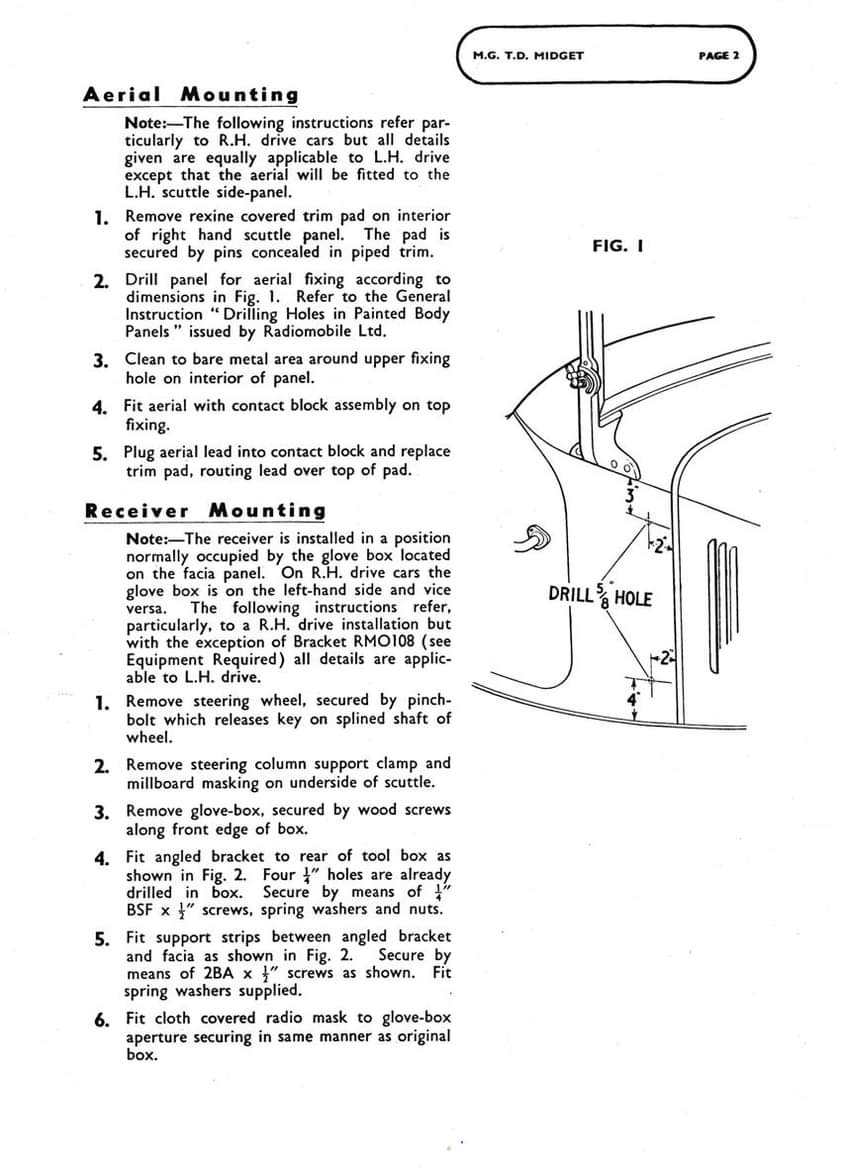

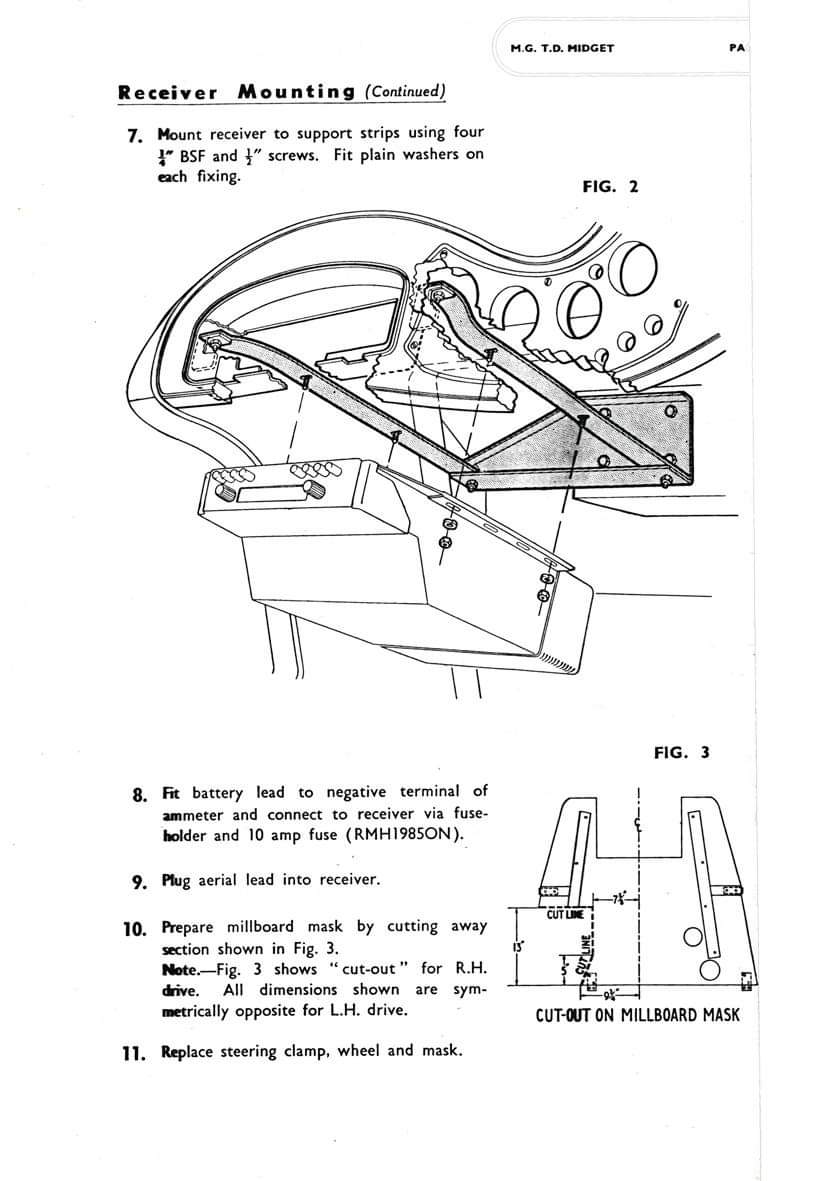

These are pages from the installation manual. I am still looking for the remaining pages if you can help.

The model 100 was on the market from 1948 to 1951 and was replaced in 1951 by model 4100. In that case, for the purist, if the car is around 1952 or later then the correct model is the 4100, if not then the model 100 should be used. John Scragg.

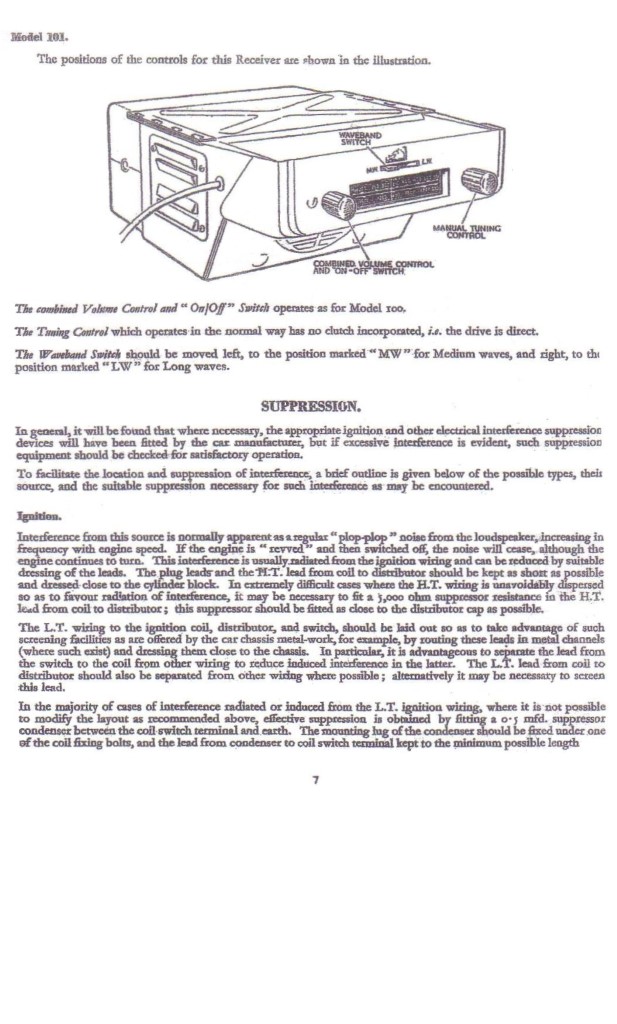

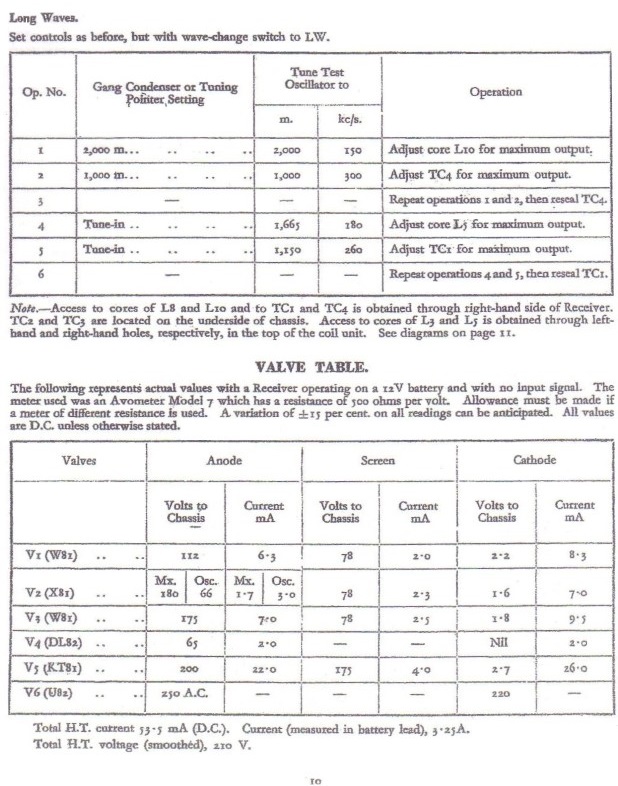

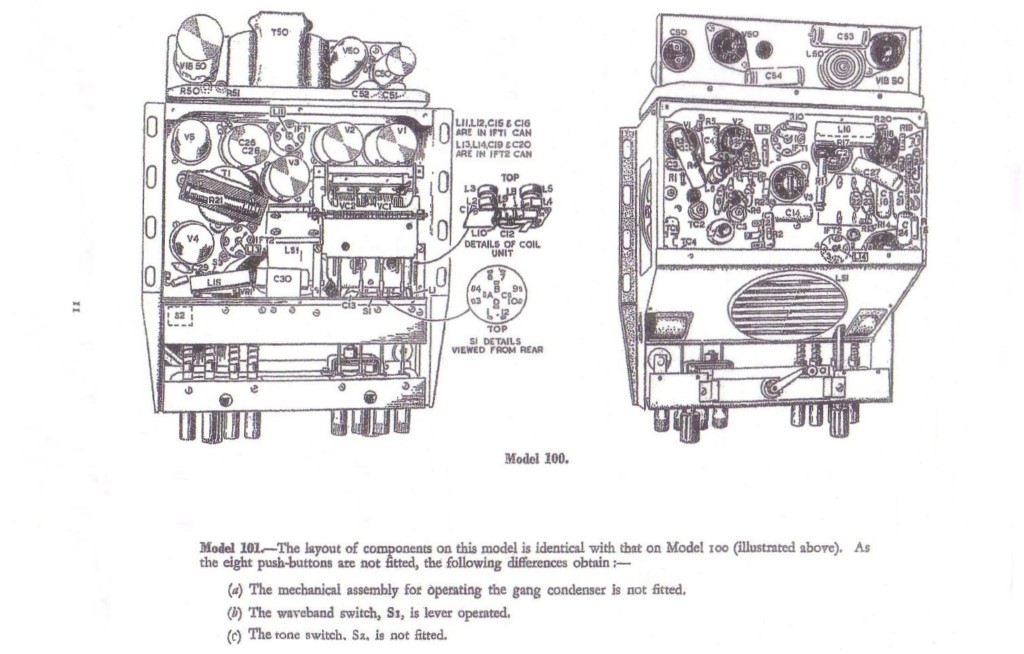

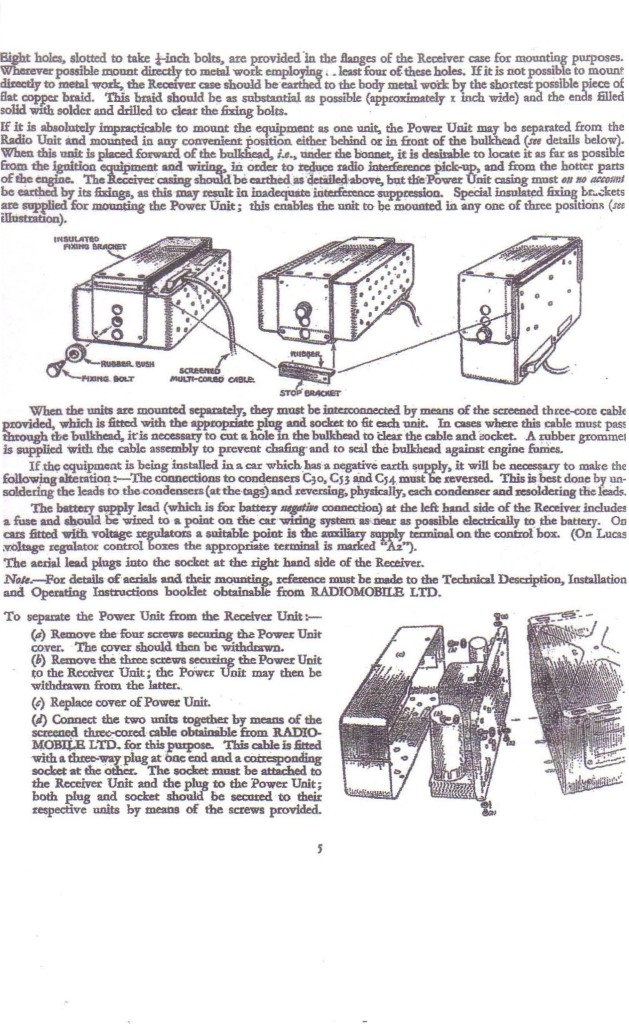

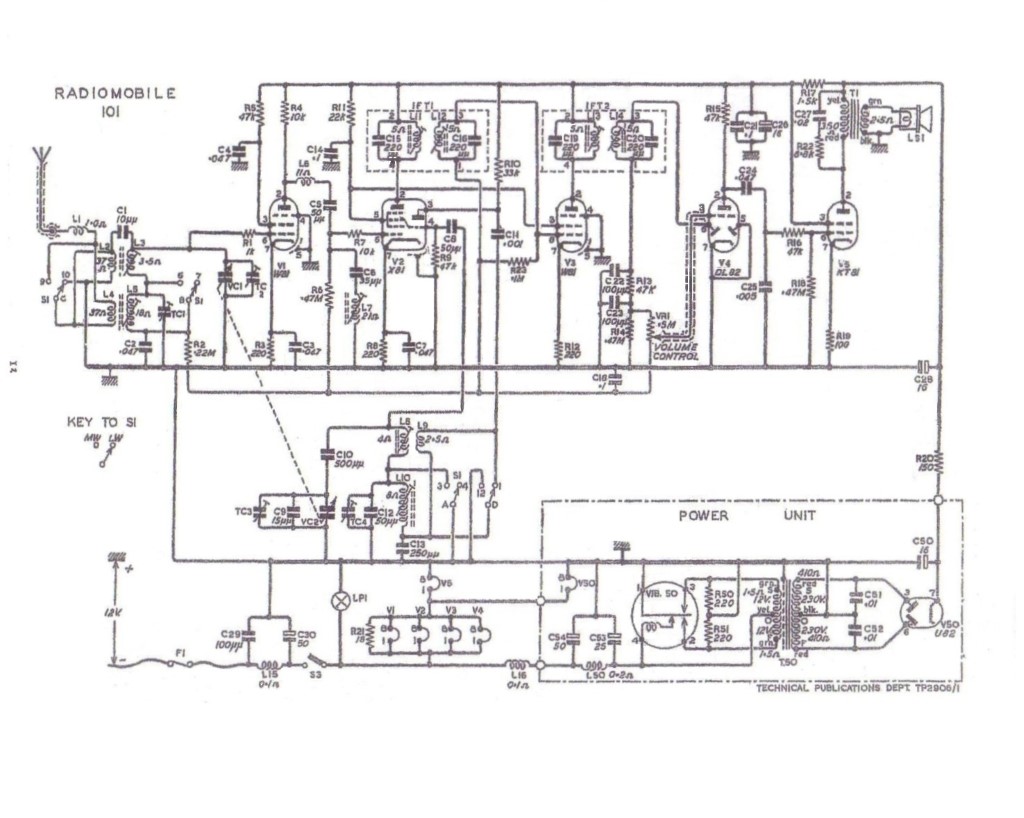

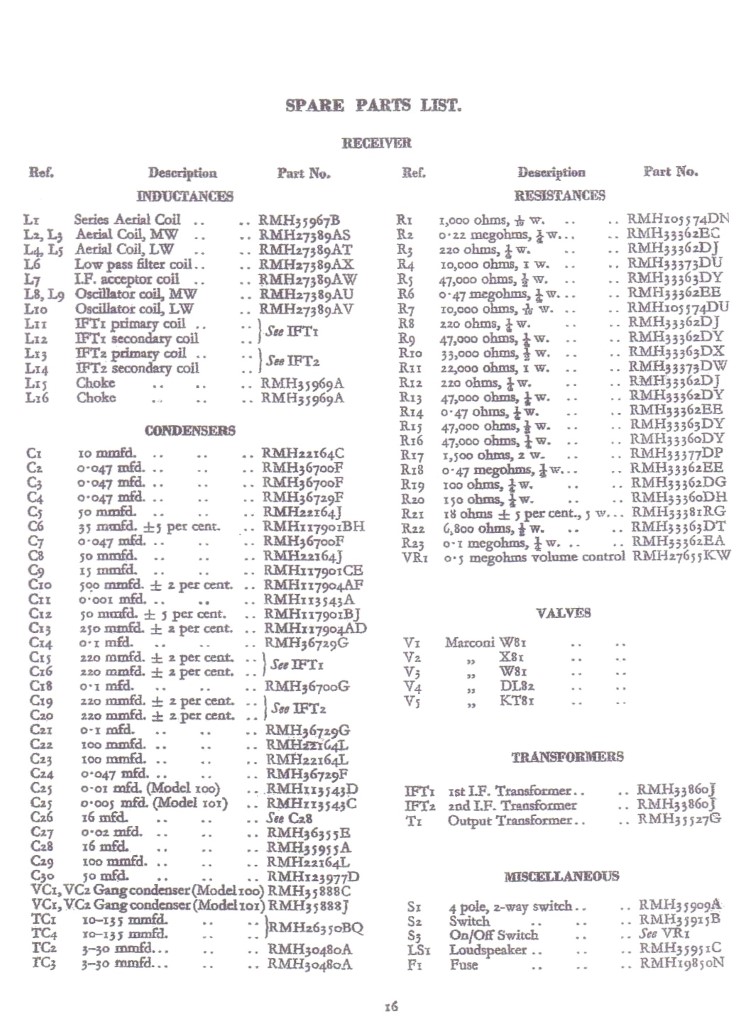

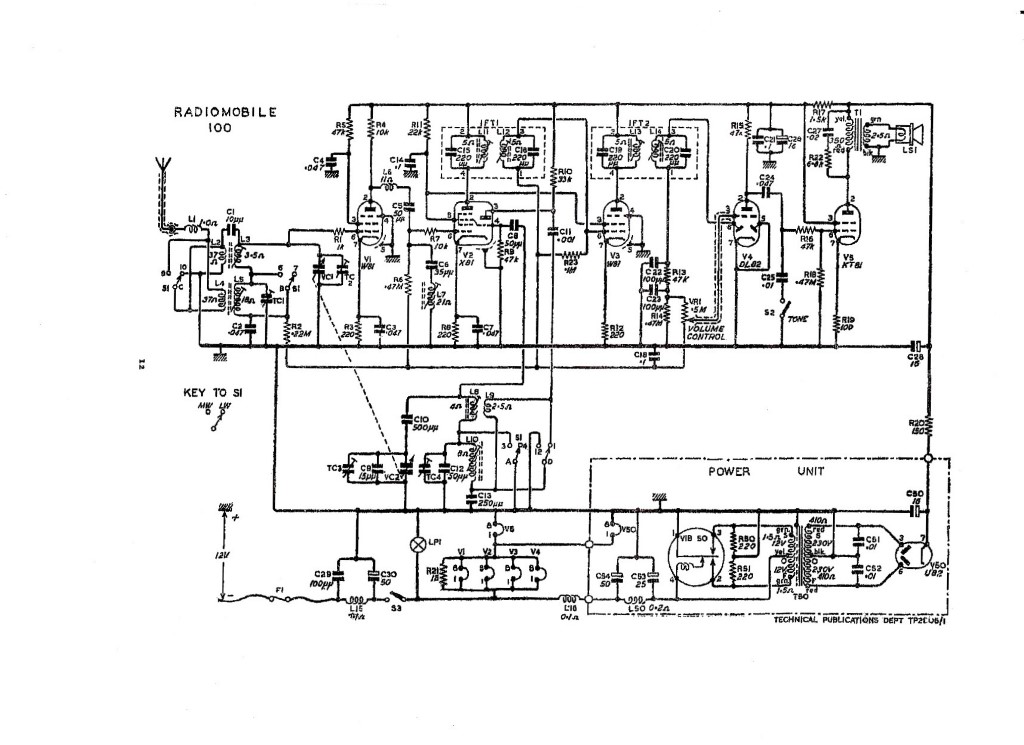

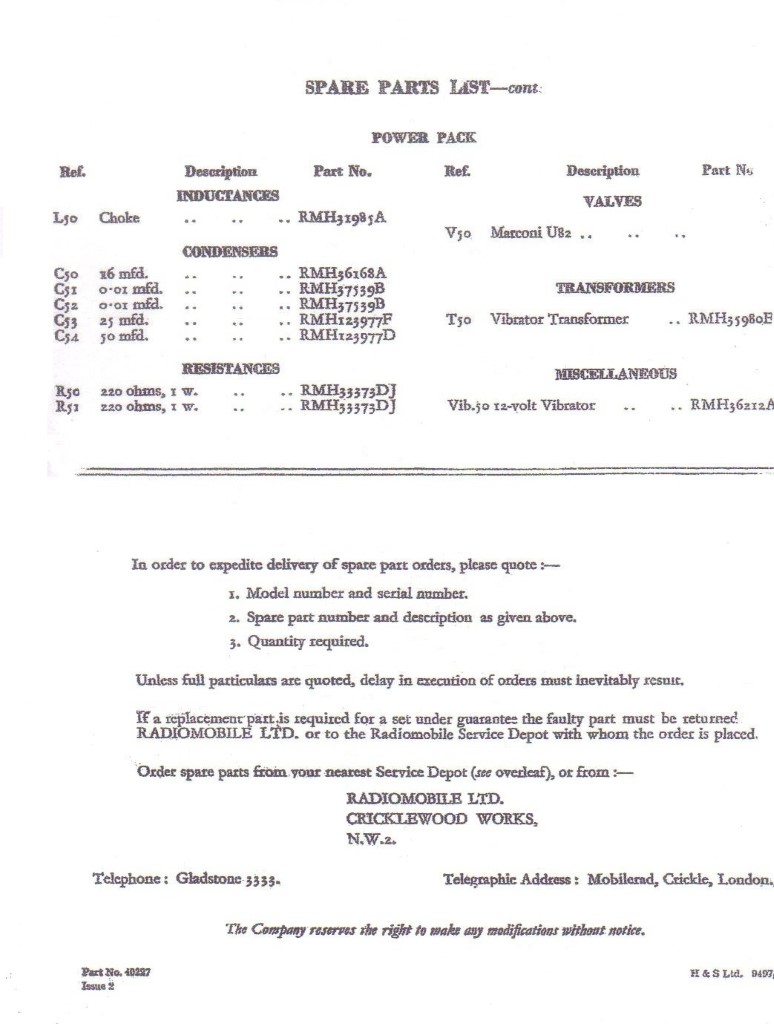

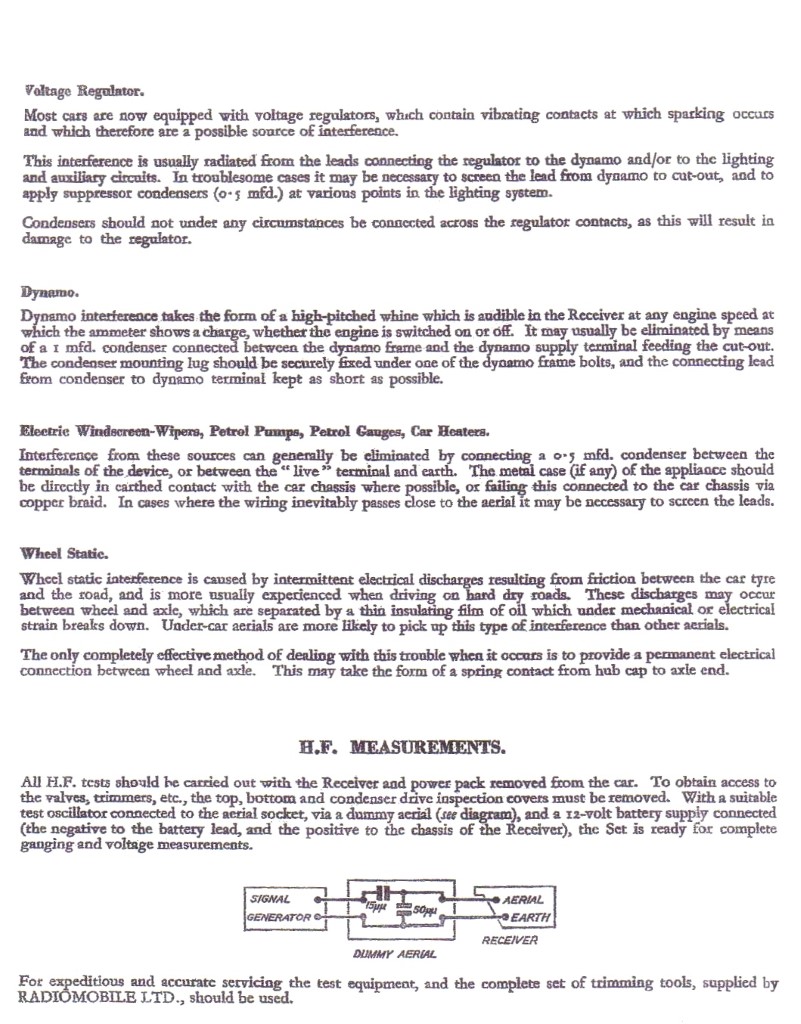

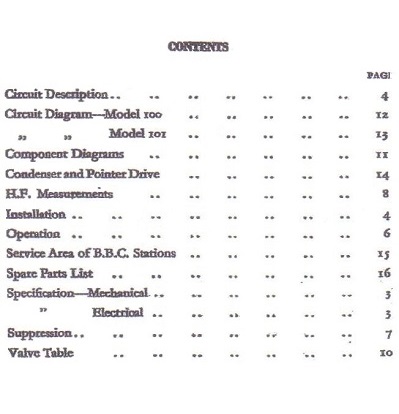

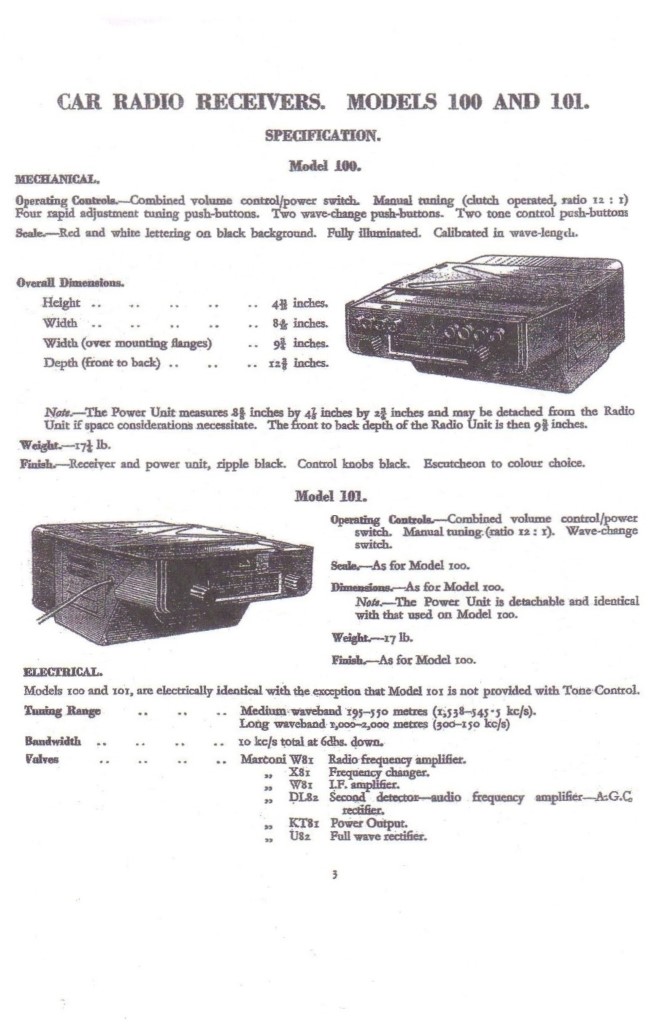

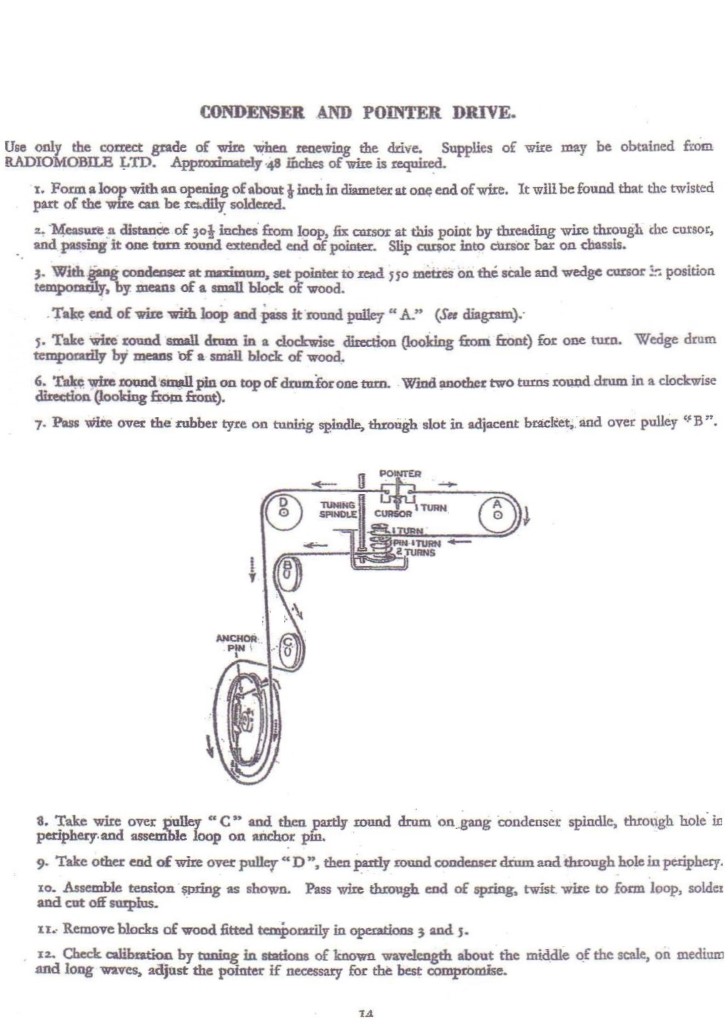

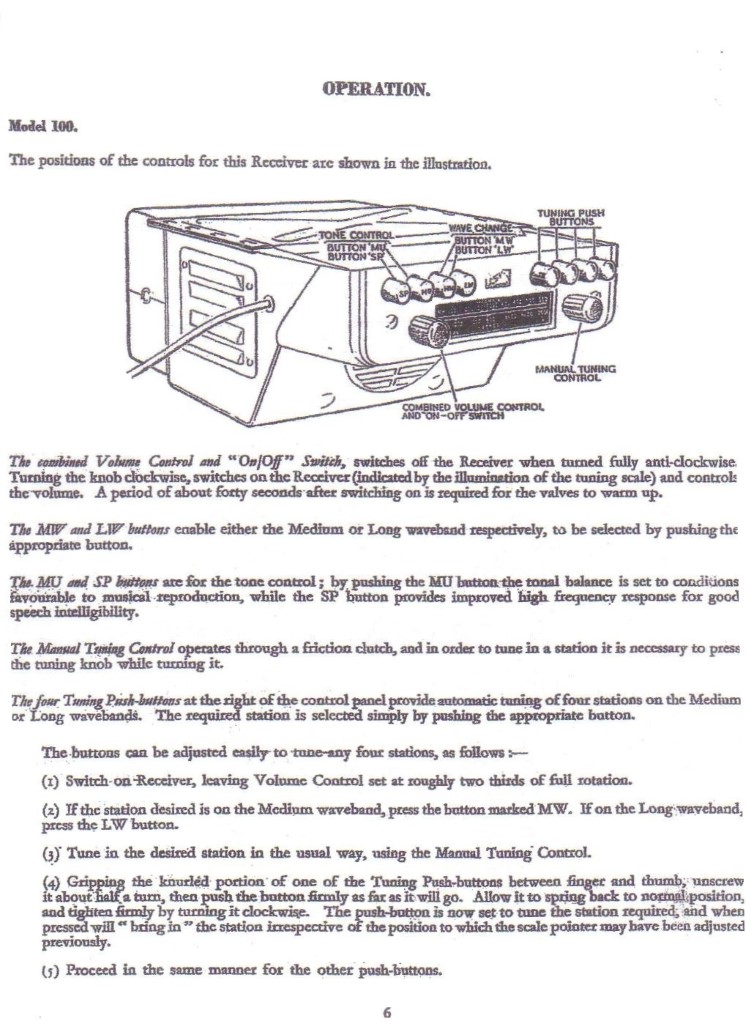

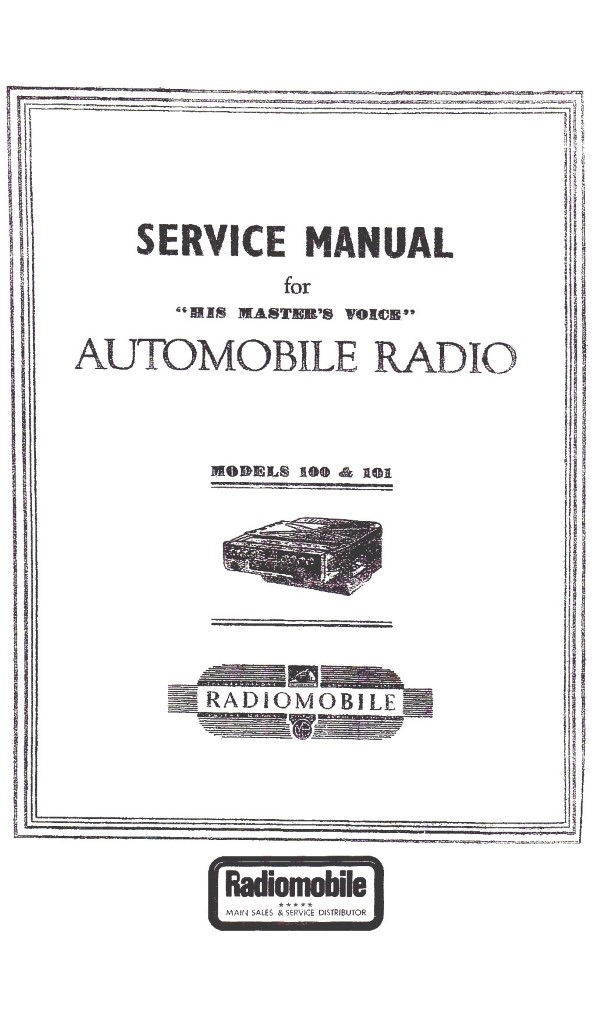

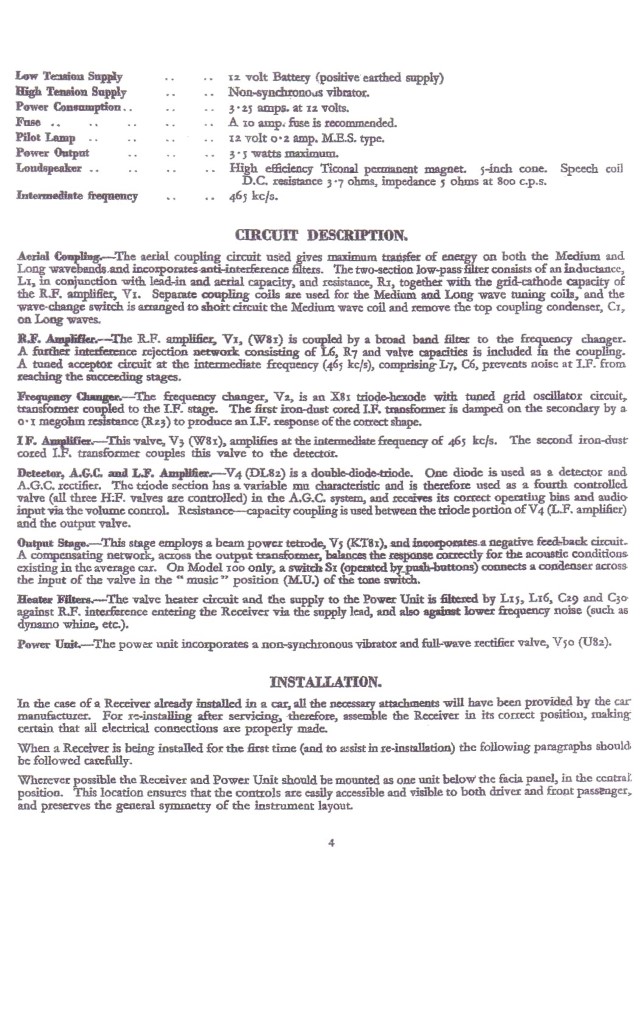

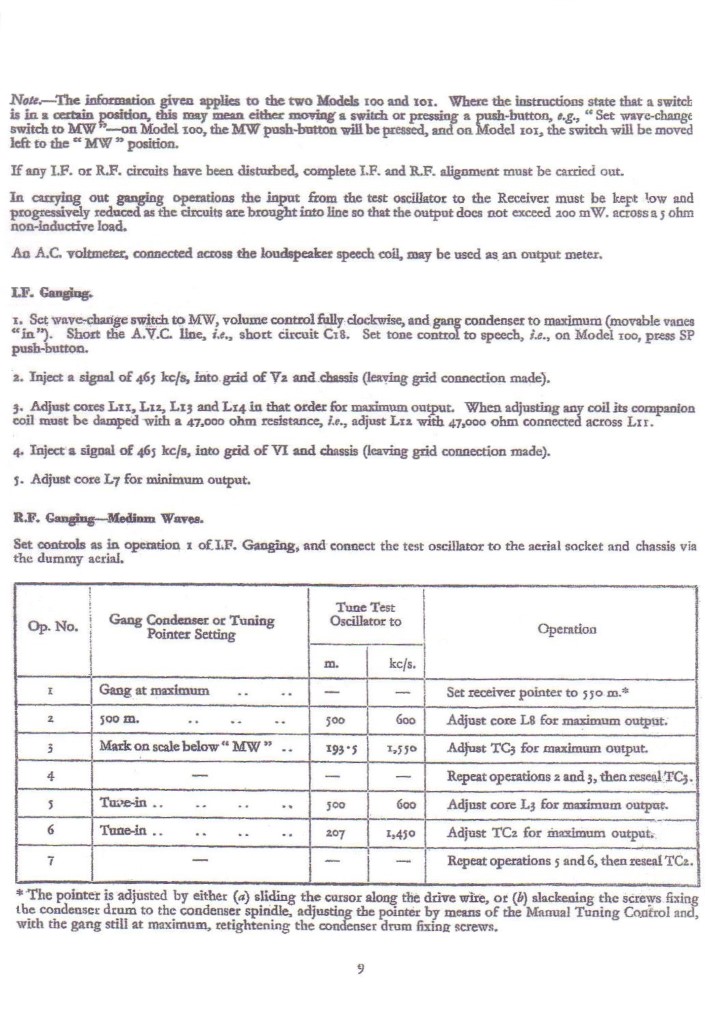

Model 100 and 101 Repair Manual

These pages were provided by John Scragg.

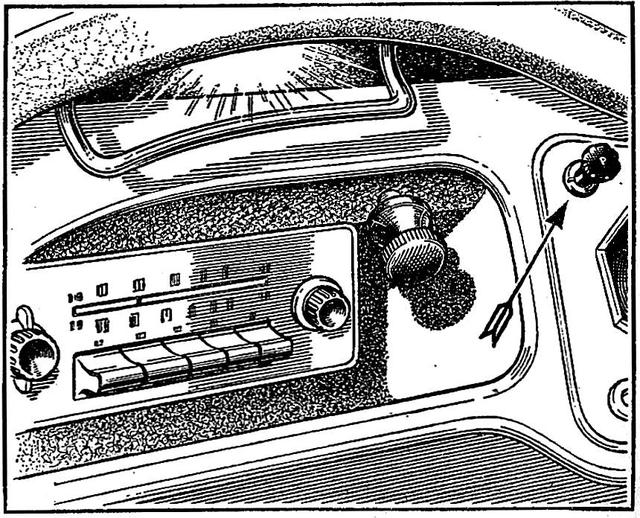

MGTF Model 4202/4203 Radiomobile

Radiomobile Model 4202/4203 Service Information Sheet
