Original Bolts and Positions

This has to be the most esoteric of all the pages. Here you will find a list of the bolts (fasteners) of the MGTD by type and position. I will tell you exactly what bolt went where, by head type, logo, thread, length, washer types, and other details. I will also tell you which way the head and nut were positioned if possible. Bolts are grouped by location. Due to the complexity and variance of this task, this will be an evolving list, needing as much feedback as you can provide me.

This list has been compiled with significant contributions from Bruce Cunha, Gordon Clark, Aaron Jacobs and others.

Note: All the chassis bolts and screws larger than 3/16" diameter are British Standard Fine (BSF). Smaller screws are BA, with 2BA being the most common. Carburetors used 2BA and 4BA threaded bolts and nuts. There is one uncommon "Whitworth" bolt (BSW) on the generator adjustment bracket.

Note: Only bolts that are visible from the exterior will be covered. The exception is under the bonnet.

Note: The finish listed is the most common. Often wing bolts were the body color or sometimes black. Chassis bolts were almost always painted black during production. Engine/transmission bolts were most likely sprayed red after final assembly. Many like to use CAD plated bolts naturaly to showcase them or to allow for an easier and less damaging impact in case (probably) the item needs to be removed or adjusted.

Note: If two items are put together by a bolt, the bolt will be included in the item that the bolt head is on.

Note:Bolt logo's are from my car and TD24060. Other cars may vary and the factory used a number of suppliers.

The following is the key for the washers:

S Spring washer
F Flat Washer
FW Fender Washer
FIN Finish Washer
FB Floorboard Washer

Note:The finish washers used on the MGT Series cars were straight sided and not rounded as are often sold today. See pictures.

Body and Wings

Front Splash Pan

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Chrome Machine Screws 4 Round Phillips 5/16 BSF ¾ Chrome F Cap     Same as on rear splash camera
Front Tabs 2 Newton R
or
BEES 45R55		 1/4 W 5/16 BSF 7/8 Black or Cad S, FW Cap     Washers are larger than normal but not as big as fender washers camera
Hex Head Bolts 4 Unknown 1/4 W 5/16 BSF ¾ Body Color F Cap     Factory Pictures Show Very Early TD’s Using A Hex Head camera

Front Wings

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera

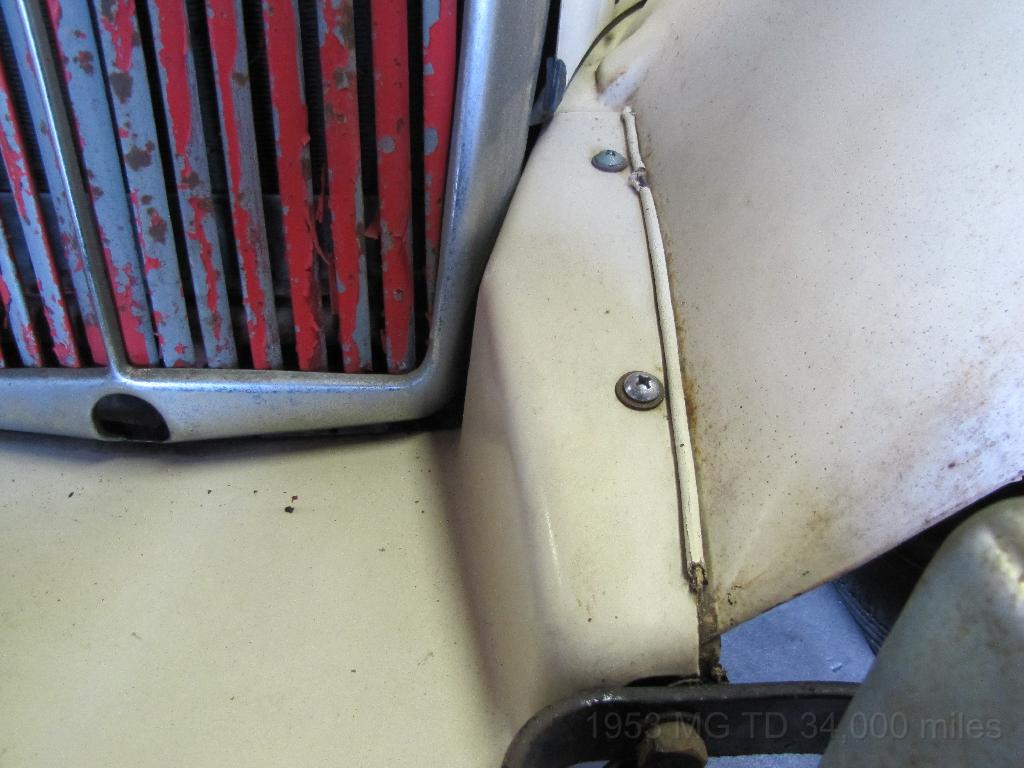

Front 4 Newton R 1/4 W 5/16 BSF     FW 1/4 W S Cad Some cars have shown body color camera
Rear 8 Newton R 1/4 W 5/16 BSF     FW, S Cap   Cad Some cars have shown body color camera

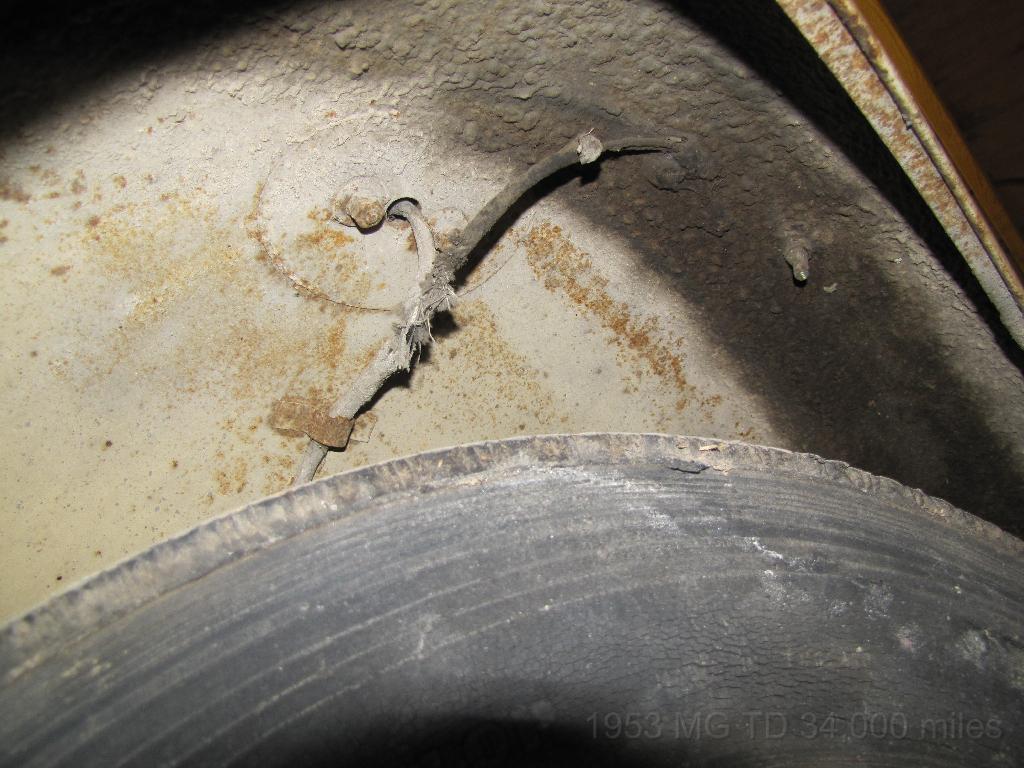

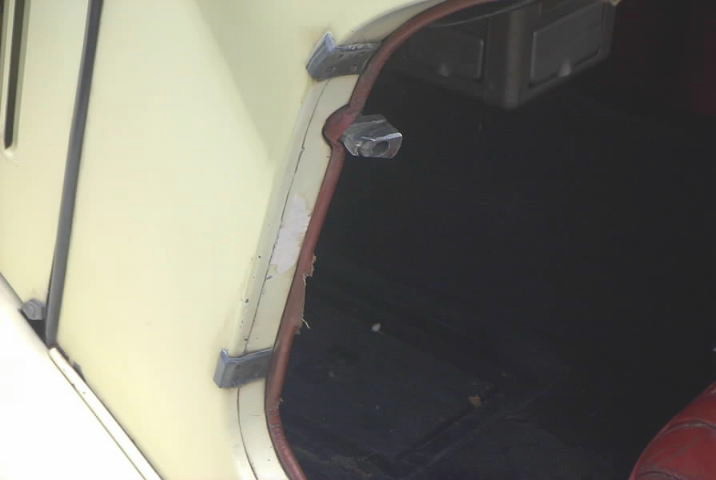

Sheet Metal Screws 4   Round Phillips #10 ½ Cad         Probably to hold the piping in place camera
Light Arm 8     5/16 BSF       1/4 W F   One regular nut and one half height nut to the outside camera
Sidelamp 4 Newton R 3/16 W 1/4 BSF ½ Cad W, S       Front bolt had wire clip camera

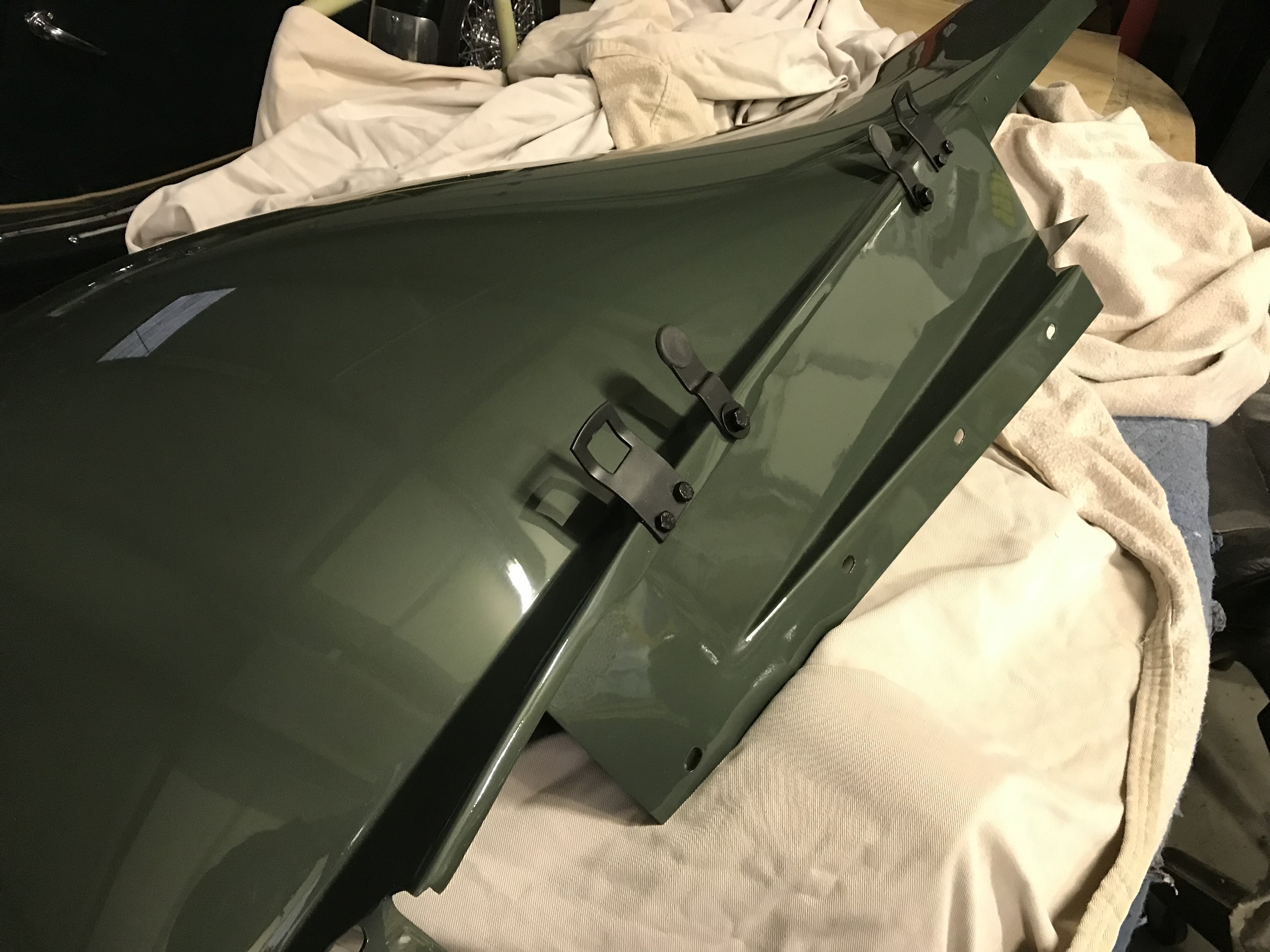

Bonnet Latch Receiver 8 Newton R 3/16 W 1/4 BSF ½ Cad or Black   3/16 W S Cad Bolt inside to outside camera
Bonnet Bumper 4 Newton R 1/4 W 5/16 BSF ½ Cad or Black   1/4 W S Cad Bolt inside to outside camera

Running Boards

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Running Board to body 4   3/16 W 1/4 BSF 3 Cad F 3/16 W W, FW, S Cad Nuts inside camera
Running Board to body 2   3/16 W 1/4 BSF 3 1/4 Cad F 3/16 W W, FW, S Cad Nuts inside camera

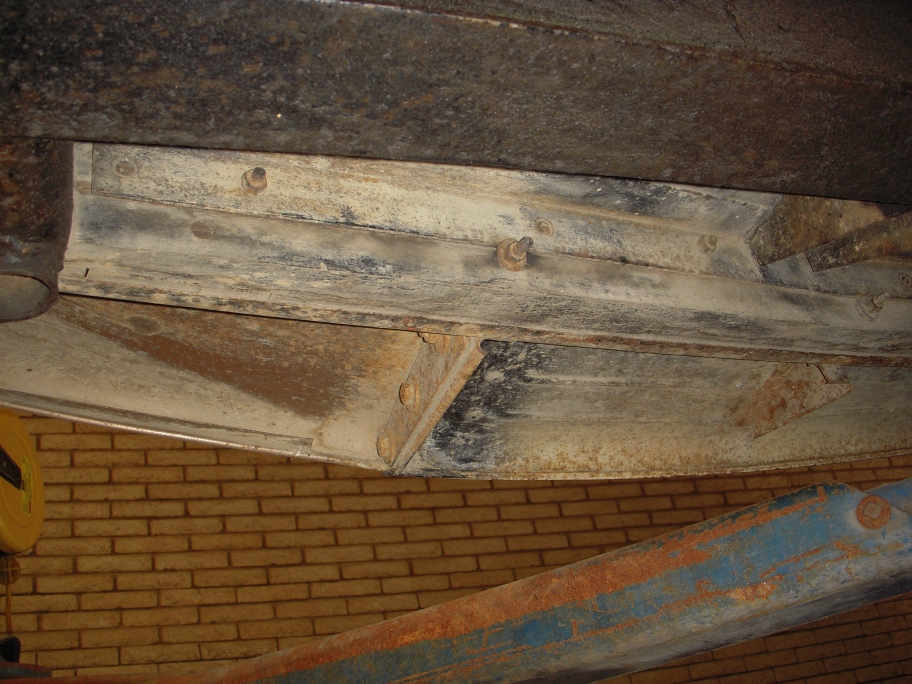

Running Board to Front Fender 6   1/4 W 5/16 BSF 1 Cad FW 1/4 W FW, S Cad Nuts on fender side but I have seen then on the running board side camera
Running Board to Rear Fender 2 C L R 1/4 W 5/16 BSF 1 Cad F 1/4 W F Cad Lock nut on fender side with rubber spacer between fender and running board

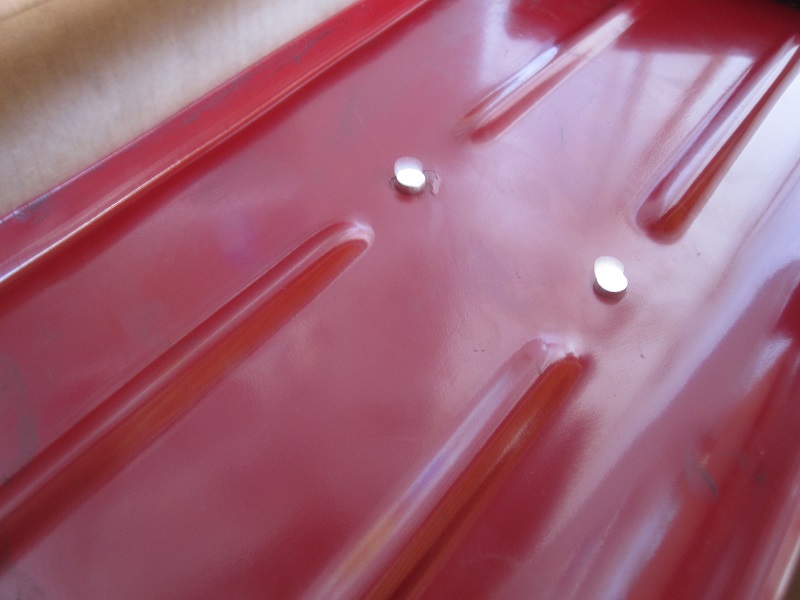

Running Board Strips 20       1/4         Natural Flat headed, countersunk soft aluminum solid rivets camera

Bonnet

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera

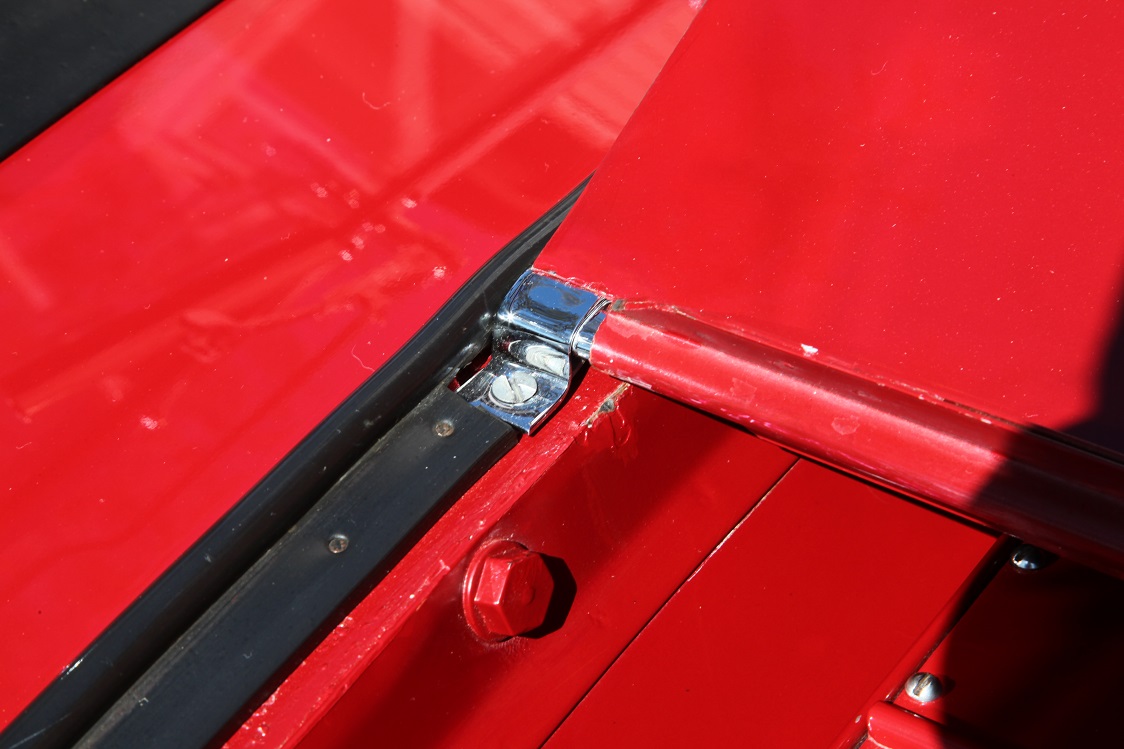

Rear Bonnet Rest 2 Flat Slot #14 1 1/4 Cad           camera

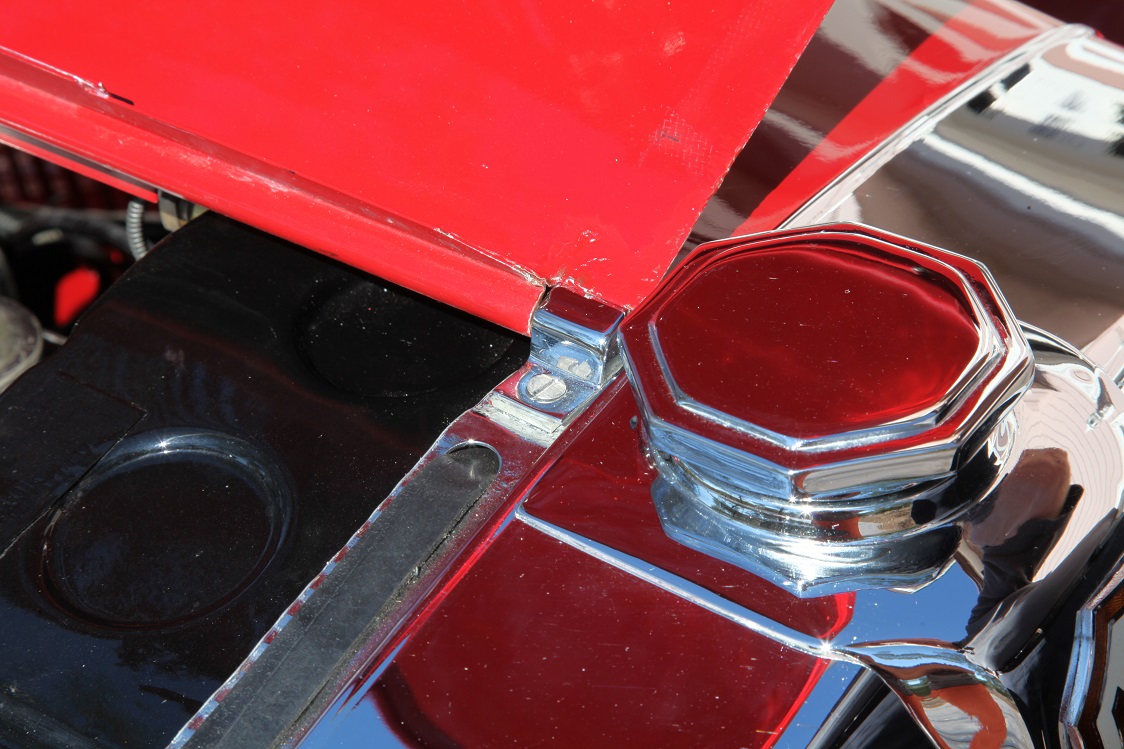

Front Bonnet Rest 2 Flat Slot 2BA 3/8 Cad   T     The nuts are special T nuts with the top aligned up camera

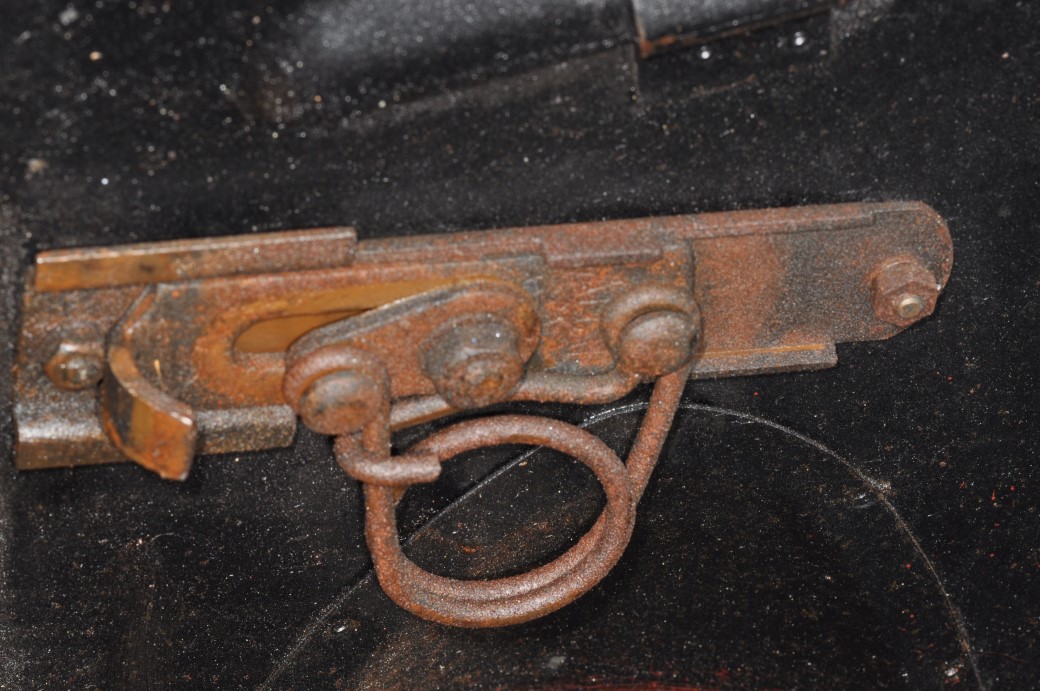

Bonnet Latch Mechanism 8 Round Slot 2BA 1/2 Natural         These are brass machine screws. Some believe they are slightly flattened. Heads can be painted body color. camera
Bonnet Latch Handles 4     1/4 BSF       3/16 W S Cad Philidas nuts on very late (53) cars camera

Rear Wings

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Wing to body 10 BEES 1/4 W 5/16 BSF 7/8 Cad FW,S       Some cars had pointed tips for ease of finding captive nuts

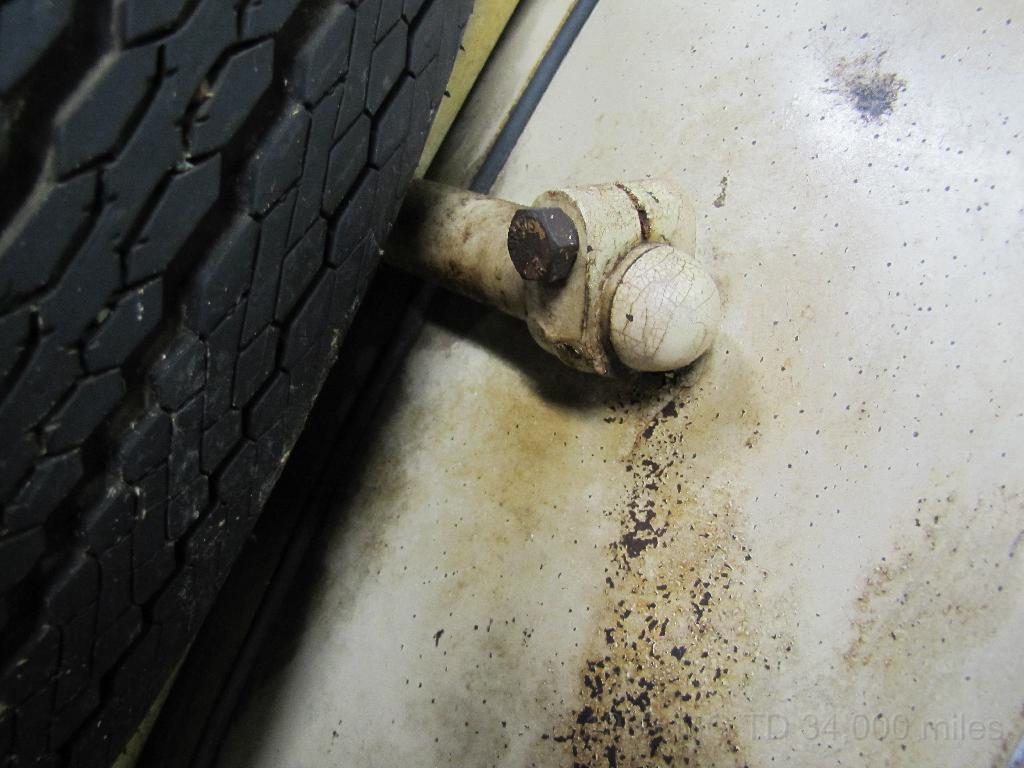

Wing to frame 2 BEES 1/4 W 5/16 BSF 1 Cad FW 1/4 W FW,S Cad There were stacks of fender washers between the wing and the frame to keep wing alinged properly

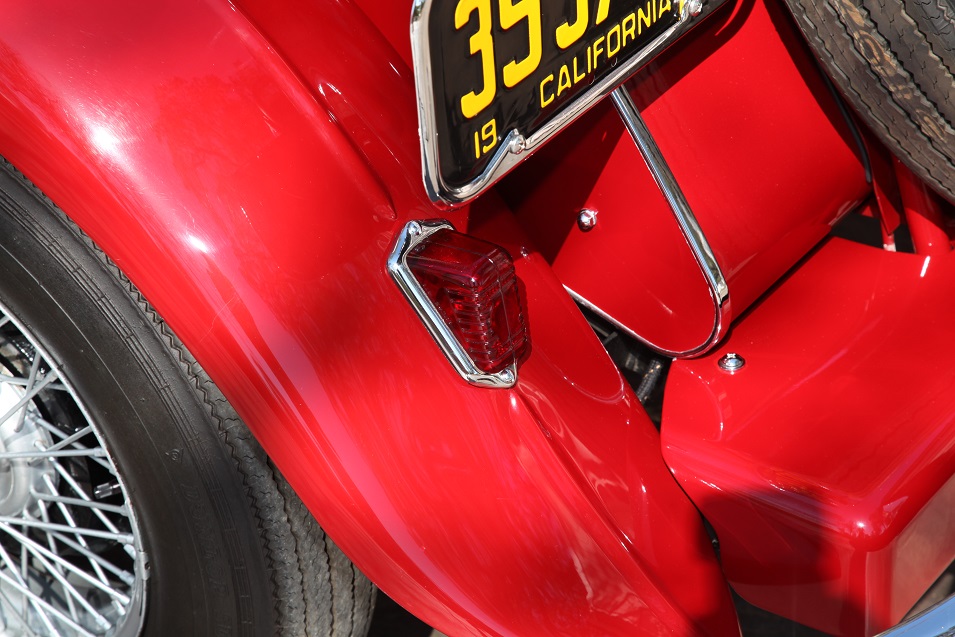

Taillamp Screws 4   Flat 2 BA   Chrome         These are specialized screws that fit into captive nuts on pre 1953 round taillamp cars. Note a few cars produced in late 1952 had rectangular taillamps but 1953 fenders and don't have captive nuts so washers, lock washers and nuts are required. camera

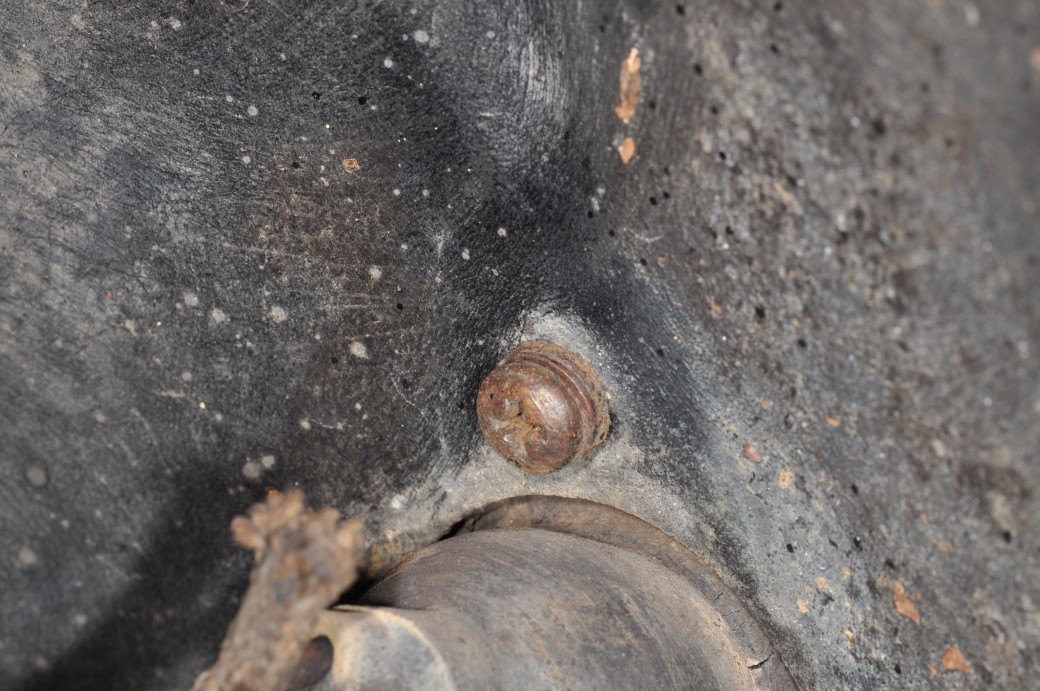

Taillamp Round Plynth Screws 4 Phillips Round 2 BA ¾" Cad F,L       Backside on round taillamp cars camera

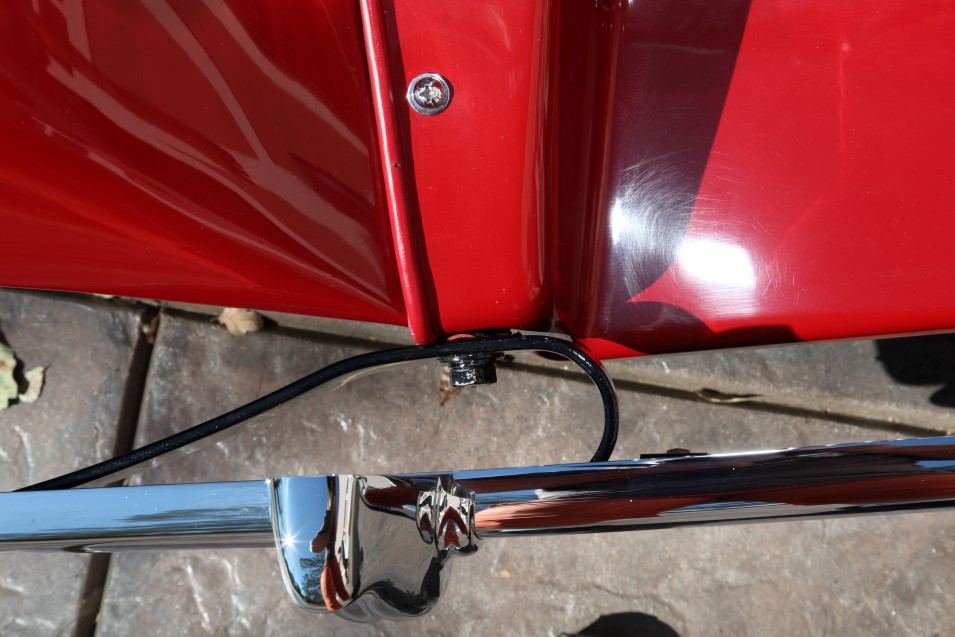

Rear Splash Pan

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera

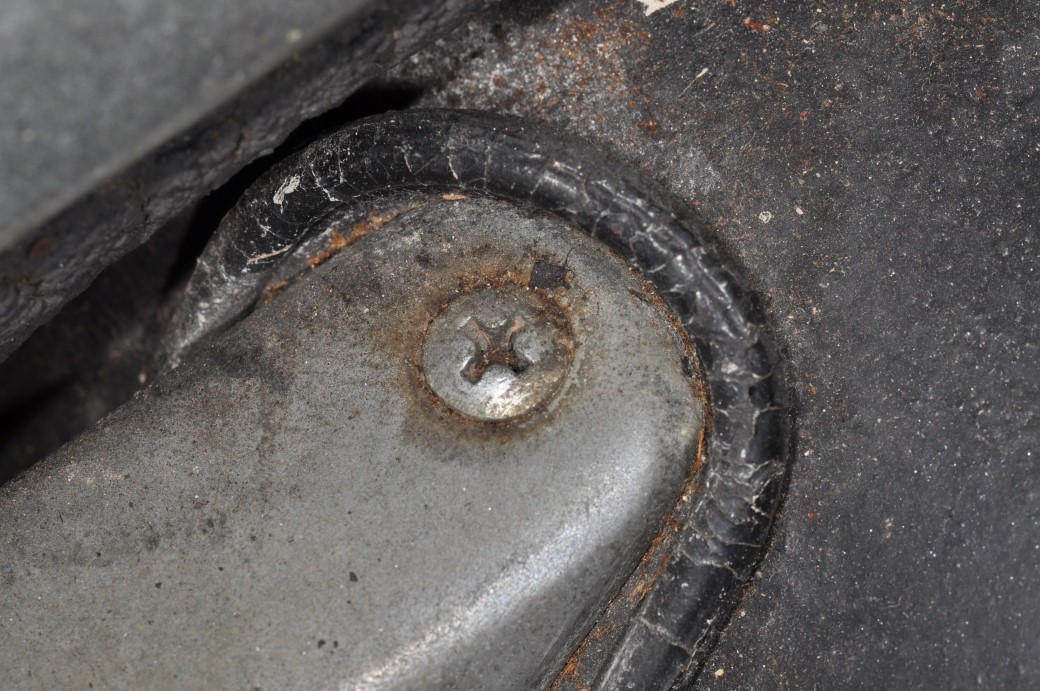

Domed Chrome Machine Screws 2   Phillips 5/16 BSF   Chrome F Cap     Same as on front splash camera

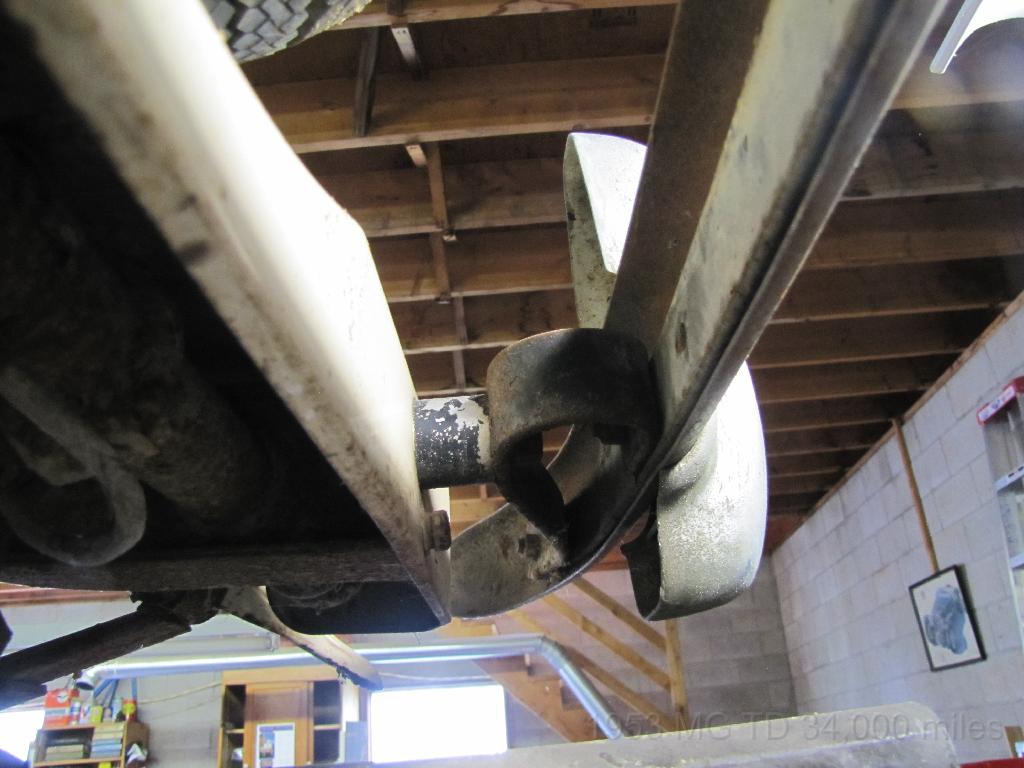

Under bumper bolts 2 LCR 5/16 W 3/8 BSF   Black F, S Cap     These might have been black oxide. camera

Body Bucket and Doors

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera

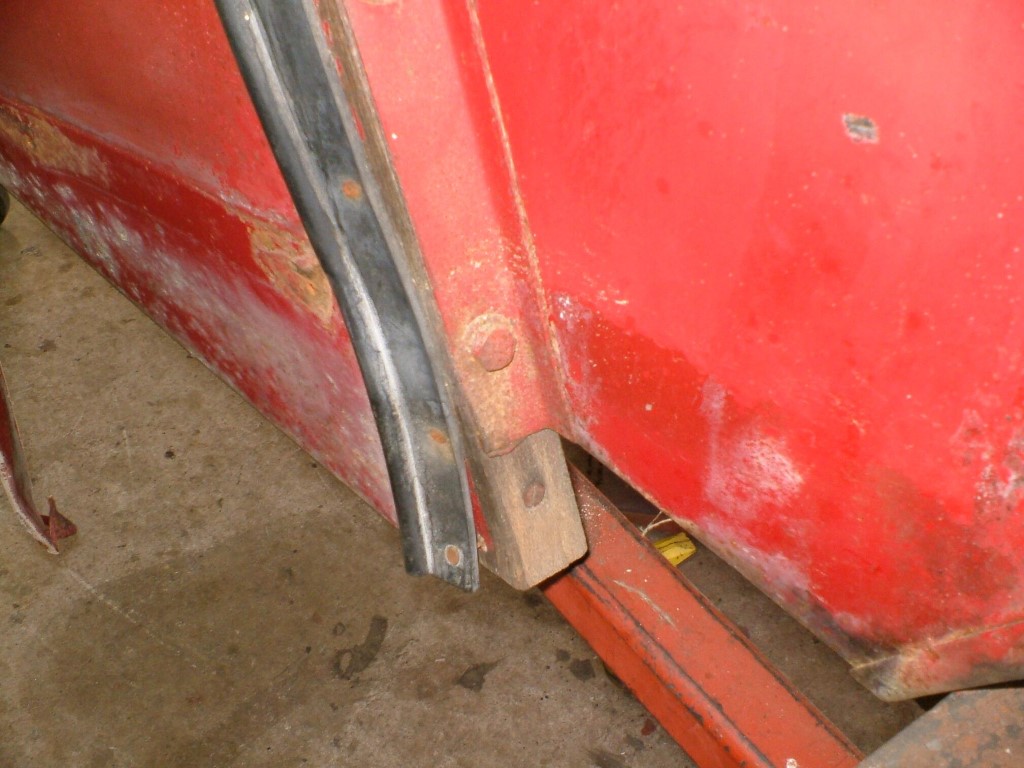

Door Hinge Machine Screws 18 Flat Slot 1/4 BSF 2 ¼" Body Color   3/16 W F,S Natural   camera
Door Hinge Wood Screw 2 Flat Slot #10 Wood 1 1/4" Body Color           camera
Woodscrew 2 Flat Slot 12 1½" Body Color         Bottom of body bucket where firewall joins. Holds wood member on body bucket. Others are hidden. camera

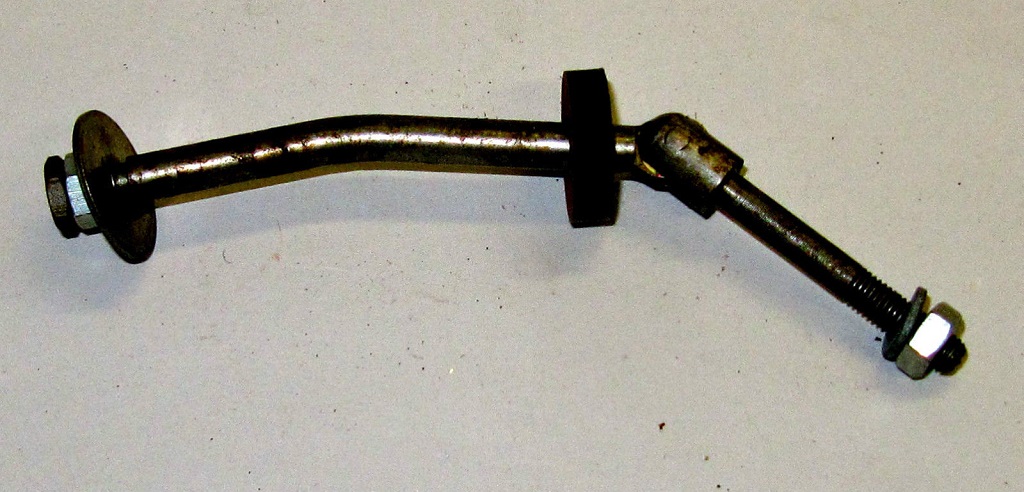

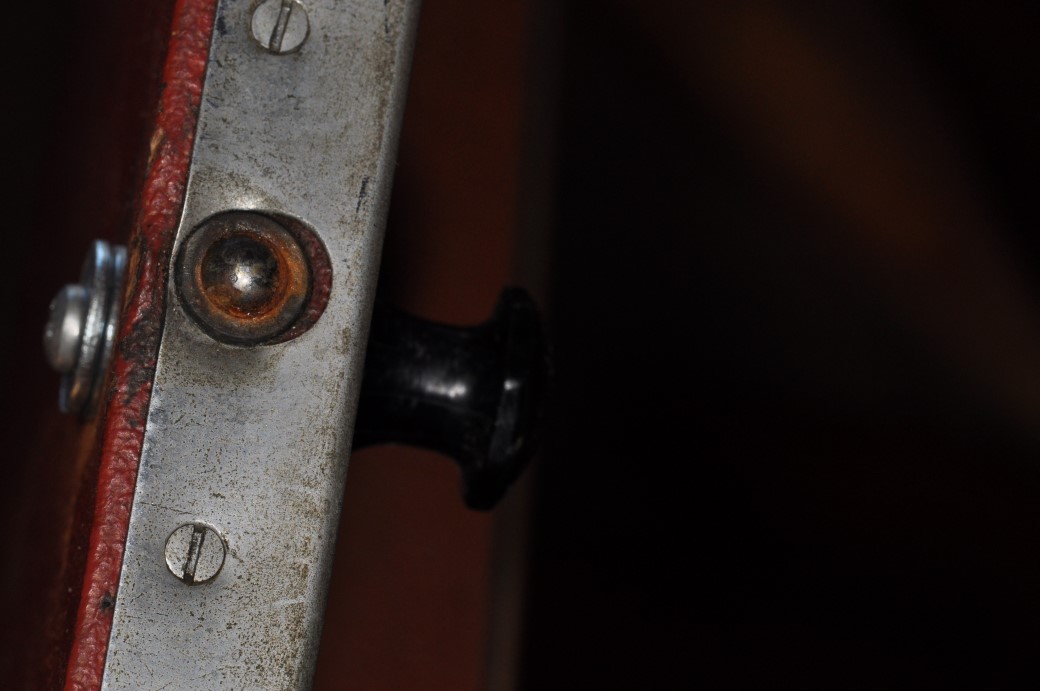

Door Checks 2     1/4 BSF 1/2" Natural FW 3/16 W S Natural Double nut on long portion along with fender washer camera
Wire Nails for Bonnet Rest 36 Flat N/A #18 ¾" Blued         Holds rubber bonnet strip on wood filler piece camera
Wire Nails for Door Stops 16 Flat N/A #18 ¾" Blued         4 brads per door stop camera

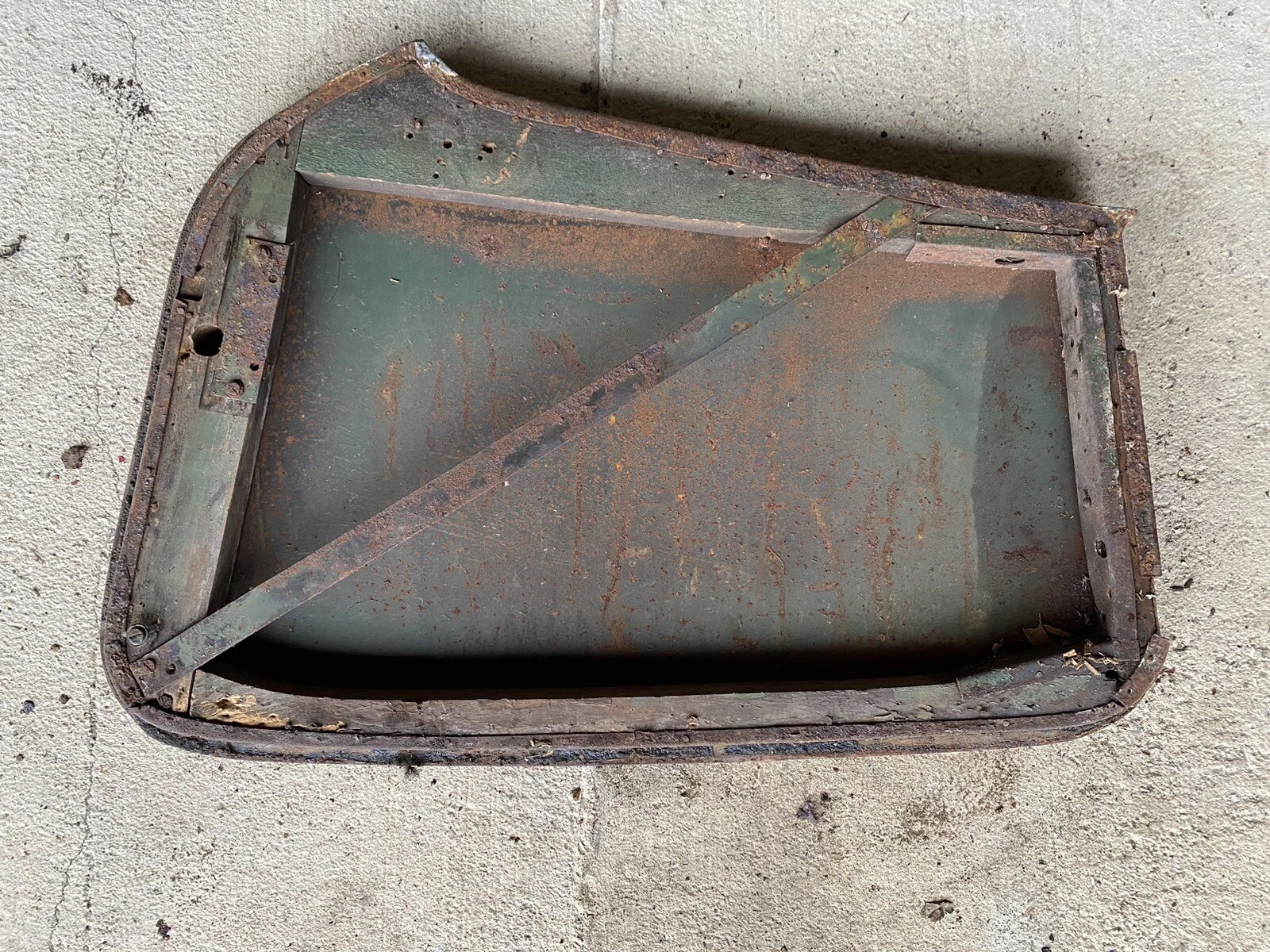

Door Diagonal Cross Brace 8 Flat Slot #6 Wood 5/8" Natural

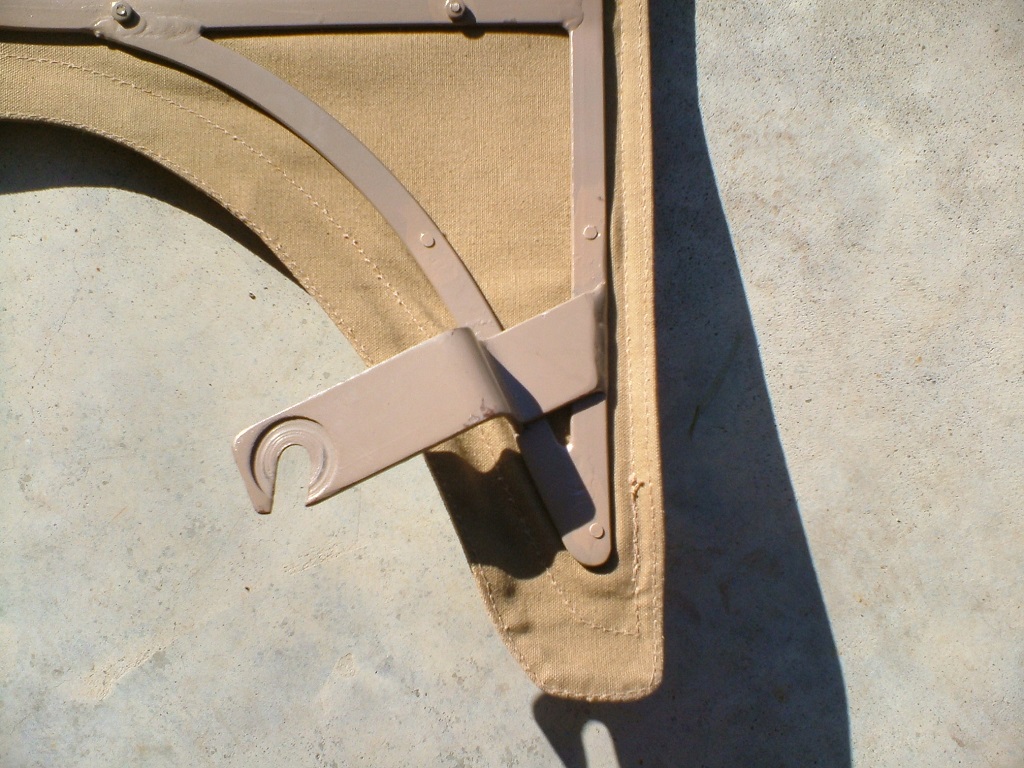

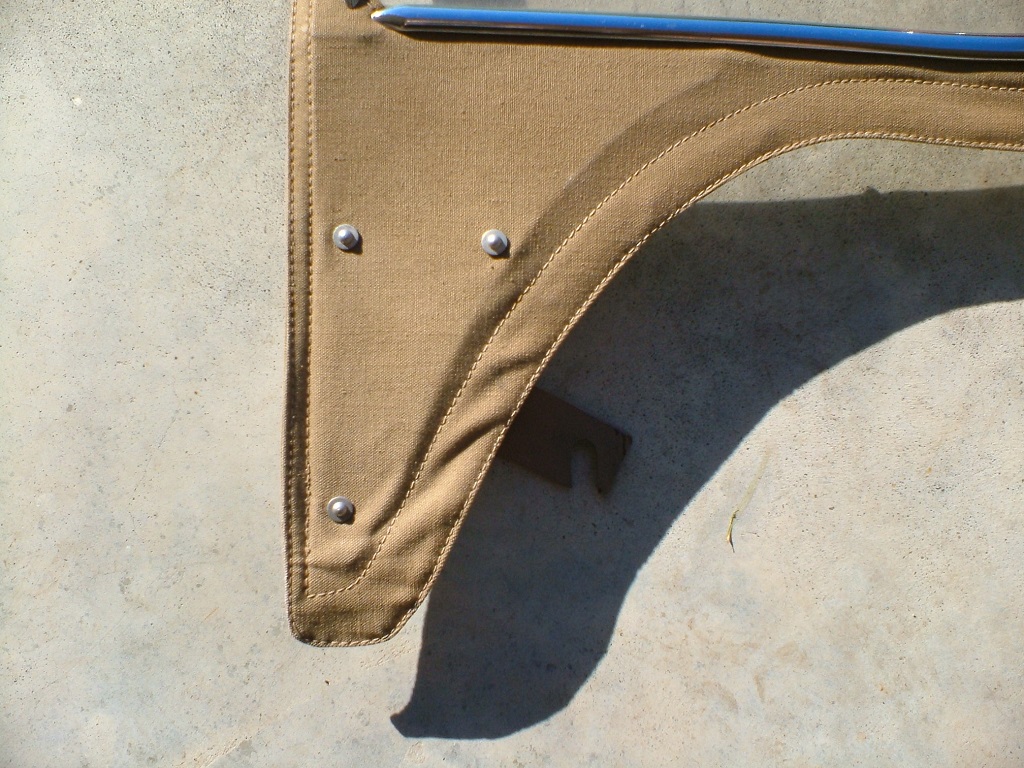

Side Curtain Brackets 12 Oval Phillips #8 Wood 1" Chrome         Early cars probably slotted. camera

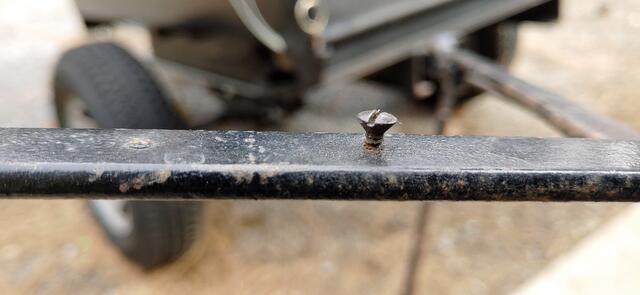

Side Curtain Rubber Buffers 4 Flat Slotted #5 BA 1/4" Natural         Looks like a tapered wood screw. camera

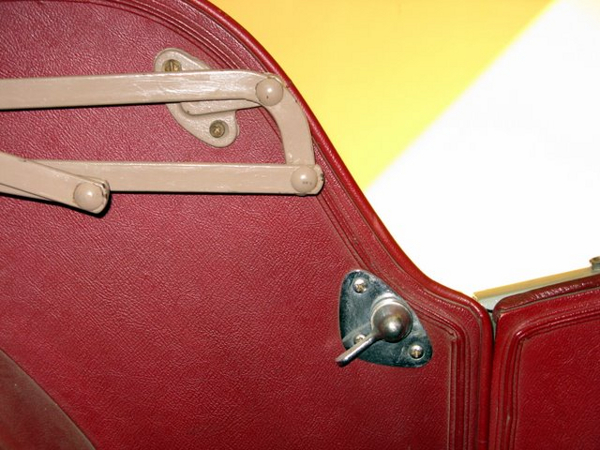

Hood Frame 4 Oval Phillips #8 Wood 1" Tan         Early cars probably slotted. camera

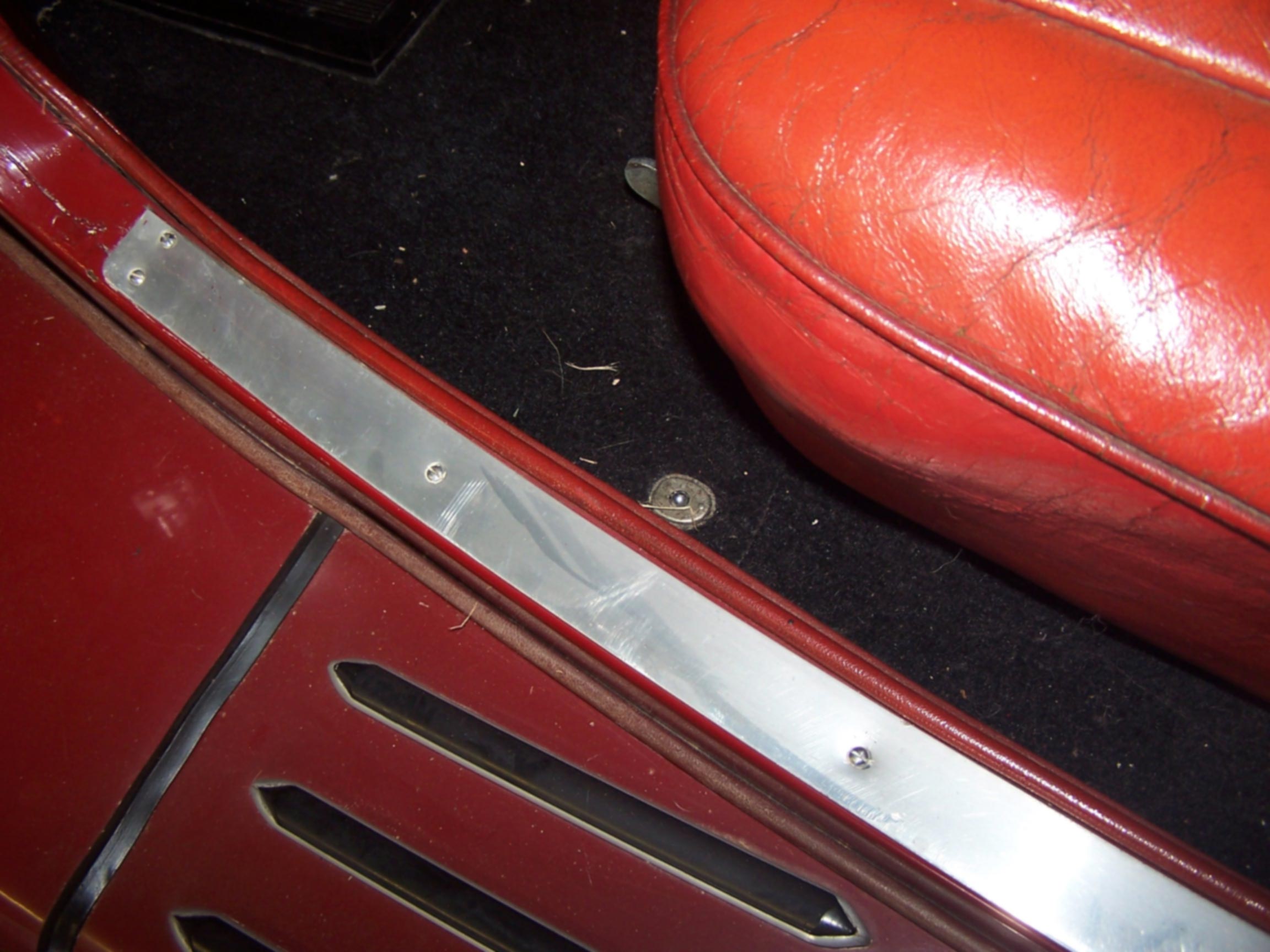

Threshold Plates 14 Slight Oval Slot #4 Wood ½" Cad           camera

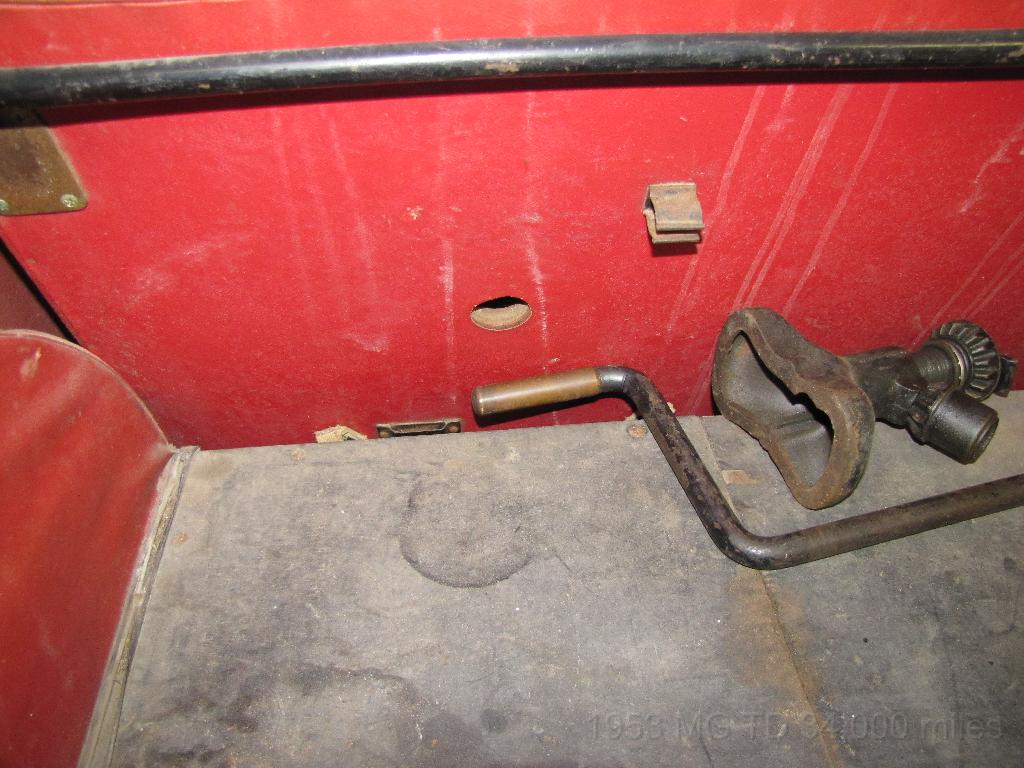

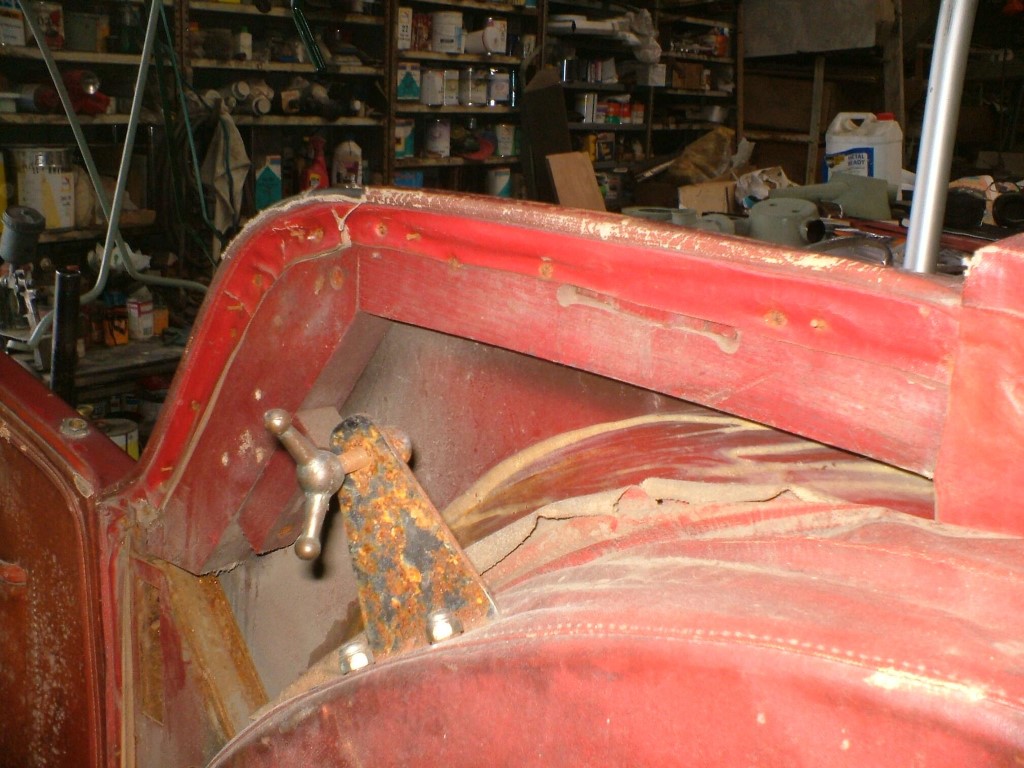

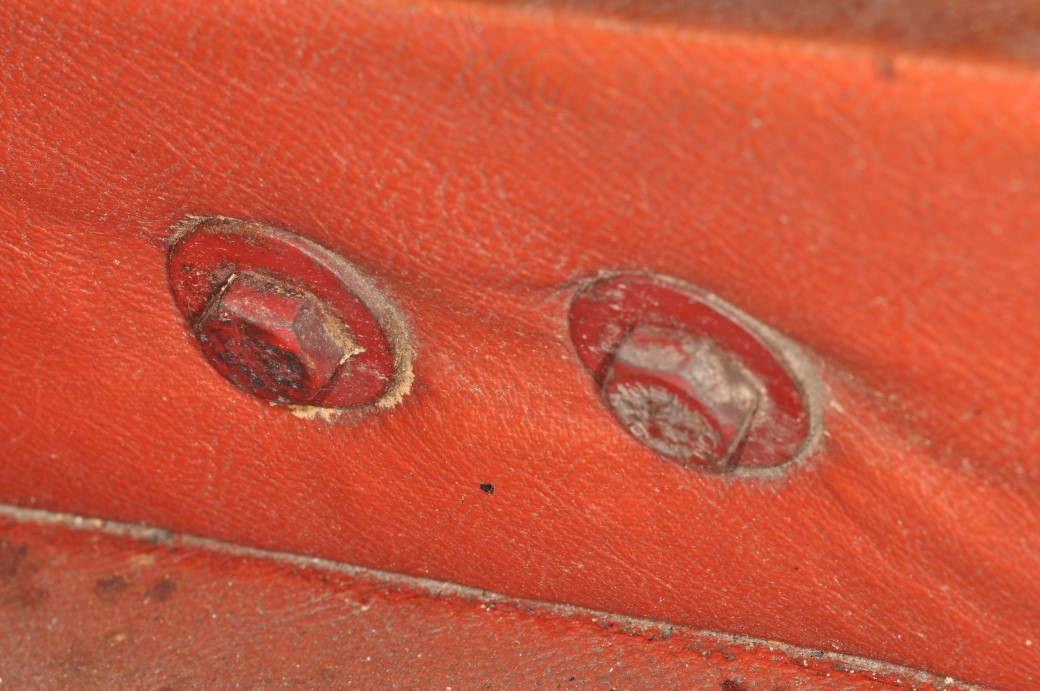

Seat Back Bracket on Wheel Well 4   3/16W 1/4 BSF ¾" Cad   Dome S Chrome Nut on inside of car. Backing plate on underside of fender. Early cars threaded receiver was about 1/4" shorter than later models. camera

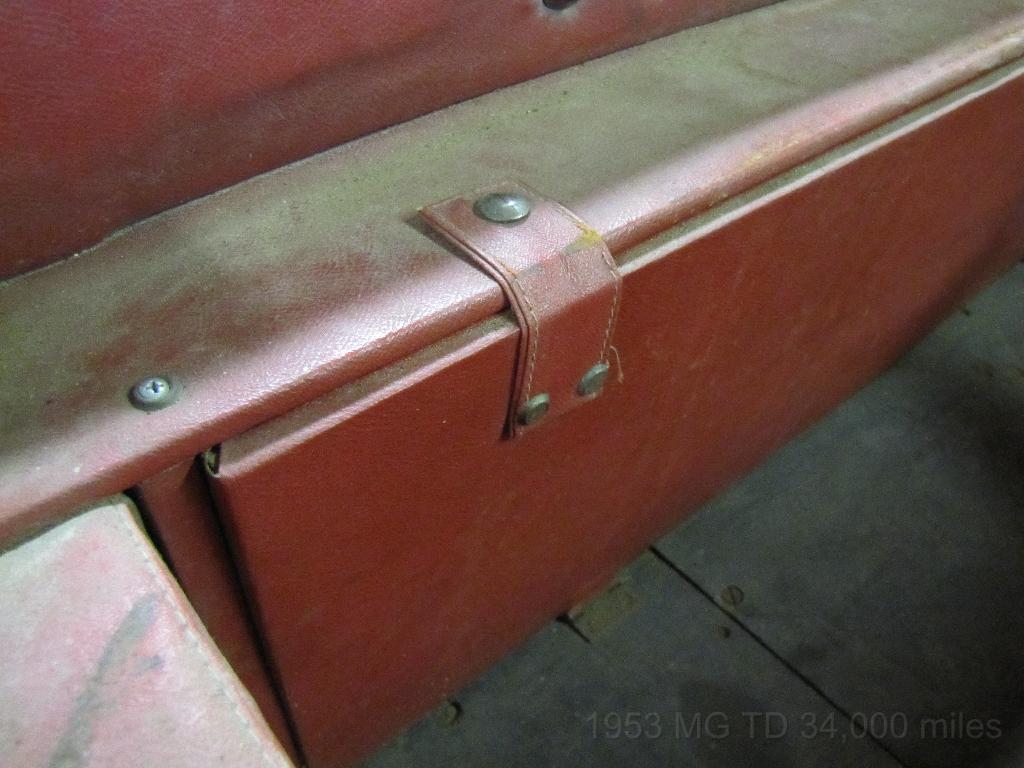

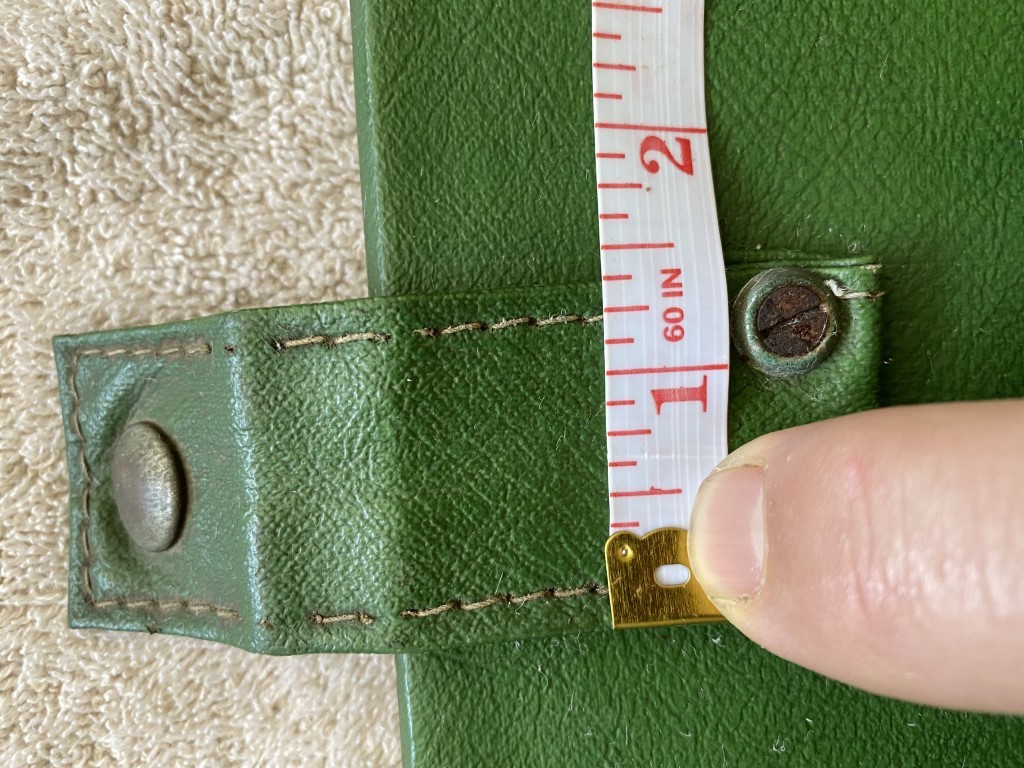

Sidecurtain Compartment Straps 4 Flat Slot #6 Wood ⅝" Cad FIN       With flat sided finish washers. Both painted interior color. camera

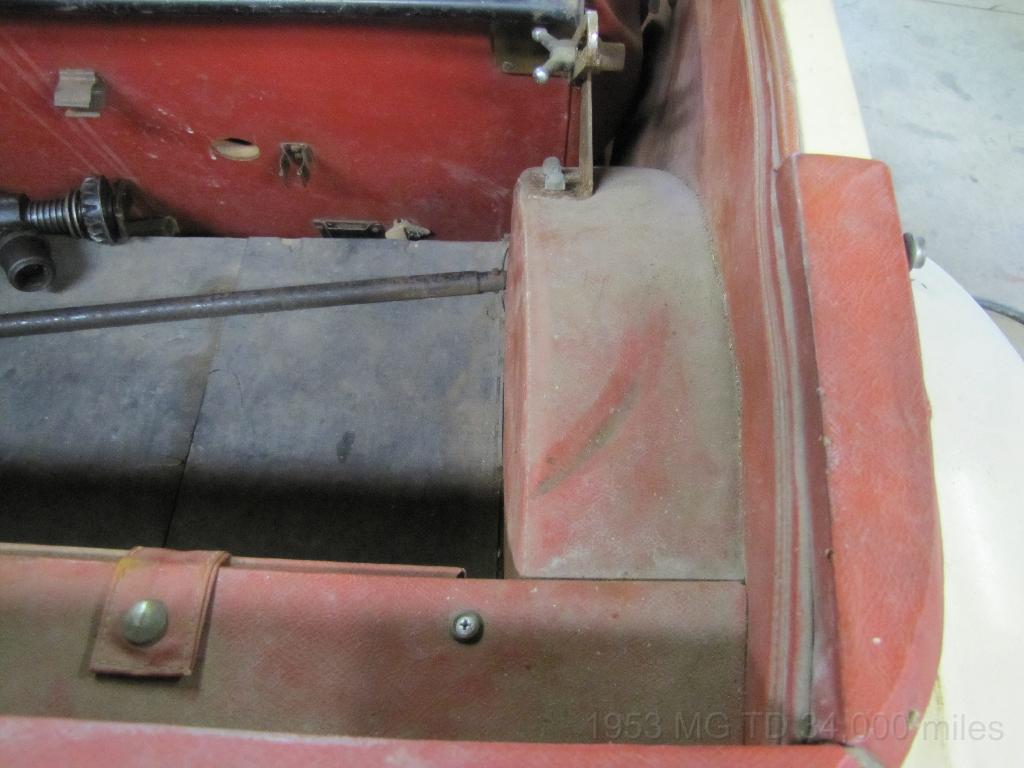

Sidecurtain Compartment Top Corners 2 Oval Phillips #8 Wood 1 ¼" Cad FIN       With screws and finish washers painted interior color. Early cars probably slotted. camera
Right Inspection Deck 6 Flat Slot 1/4 BSF 1" Cad         The outside corner users a floorboard washer. The others are countersunk into the deck boards. Late 1953 cars had Phillips screws. camera
Left Inspection Deck 6 Flat Slot 1/4 BSF 1" Cad         The outside corner users a floorboard washer. The others are countersunk into the deck boards. Late 1953 cars had Phillips screws. camera
Center Inspection Deck 4 Flat Slot 1/4 BSF 1" Cad         Countersunk into the deck boards and screw into the left and right deck boards with captive nuts camera
Right and Left Inspection Deck Retainer 4 Flat Slot #8 Wood ¾" Black         countersunk to hold the center retainer wood deck to the left and right decks camera
Driver/Passenger Floorboard 10 Flat Slot 1/4 BSF 1" Cad FB Cap     In rear and at driveshaft tunnel. Screws had pointed tips. Late 1953 cars had Phillips screws. camera
Driver/Passenger Floorboard 8 Flat Slot #10 Wood 1 1/4" Cad FIN       Late 1953 cars had Phillips screws. camera
Driver/Passenger Floorboard 2 Flat Slot 1/4 BSF 1" Cad 3/16 W, S     Outboard front holes at firewall. Screws had pointed tips. Late 1953 cars had Phillips screws. camera
Driver Floorboard 1 Flat Slot 1/4 BSF 1 1/4" Cad FB Cap     In front over master cylinder. Holds rubber mat in place. Screw had pointed tip. Late 1953 cars had Phillips screws. camera

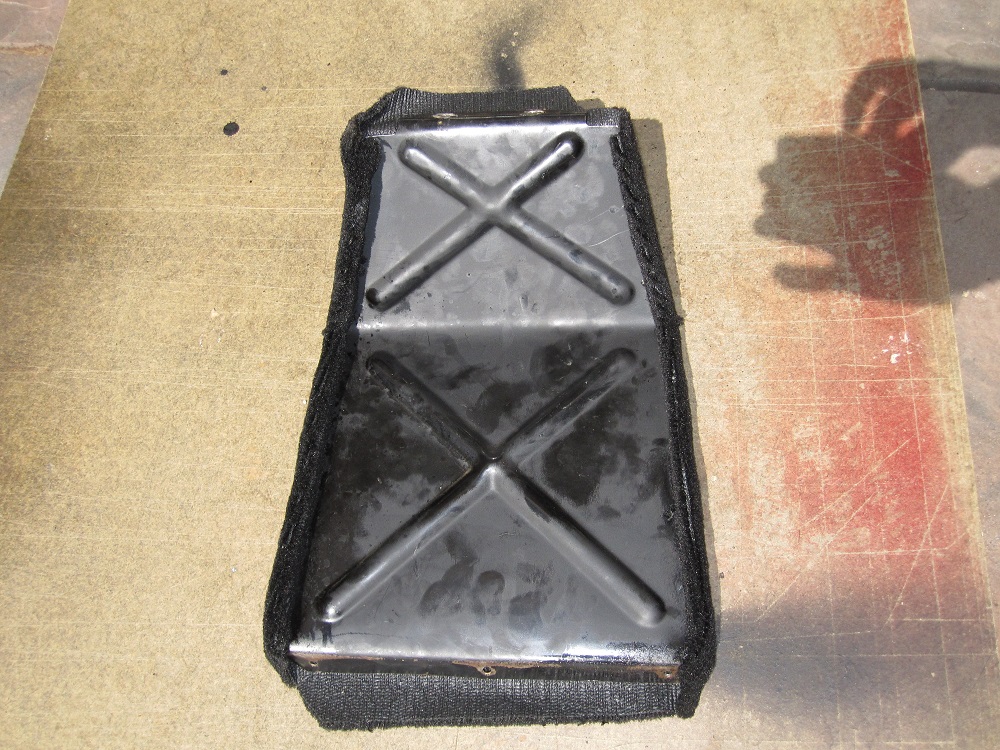

Passenger Foot-Ramp (top) 2   1/4 W 5/16 BSF ½" Cad F Cap       camera
Passenger Foot-Ramp (Bottom) 3 Round Slot #10 Wood ⅜" Cad           camera
Support-Floor (front) 2 BEES 3/16W 1/4 BSF 1/2" Black F,S Cap     Connects to transmission mount tray camera
Support-Floor (rear) 2 Flat Slot 1/4 BSF 3/4" Cad         Machine screws camera

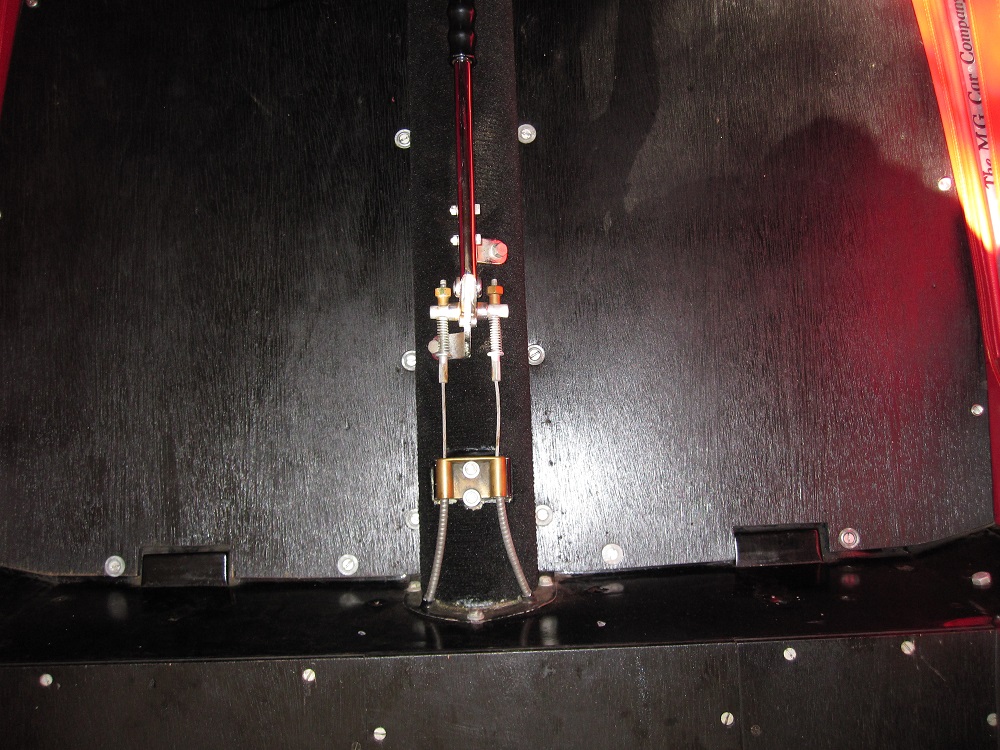

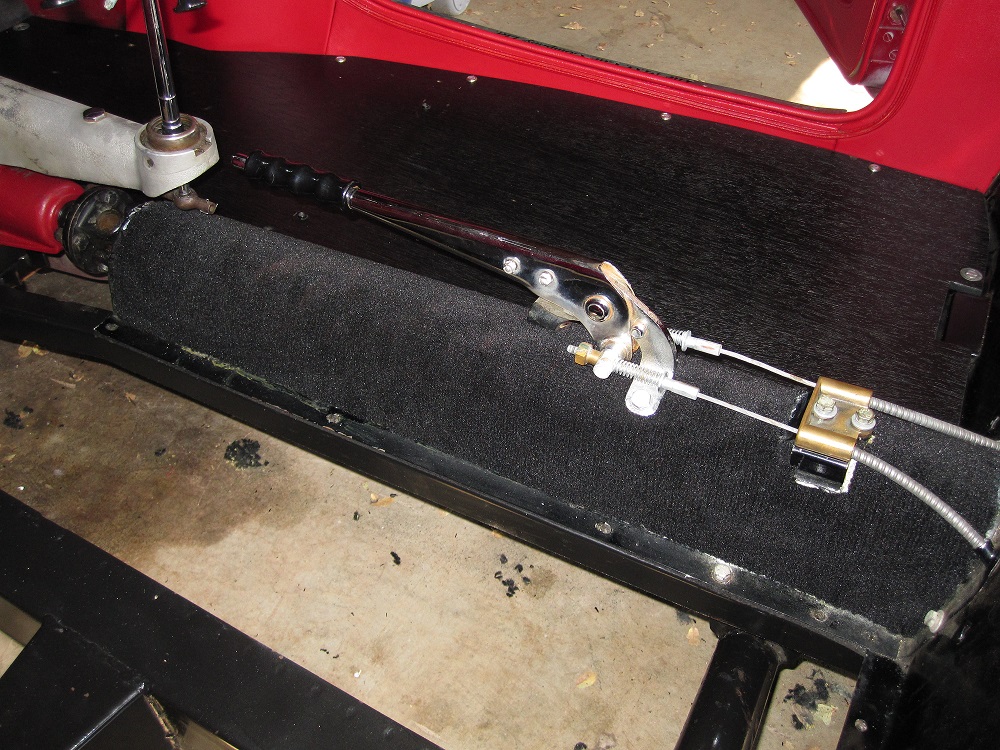

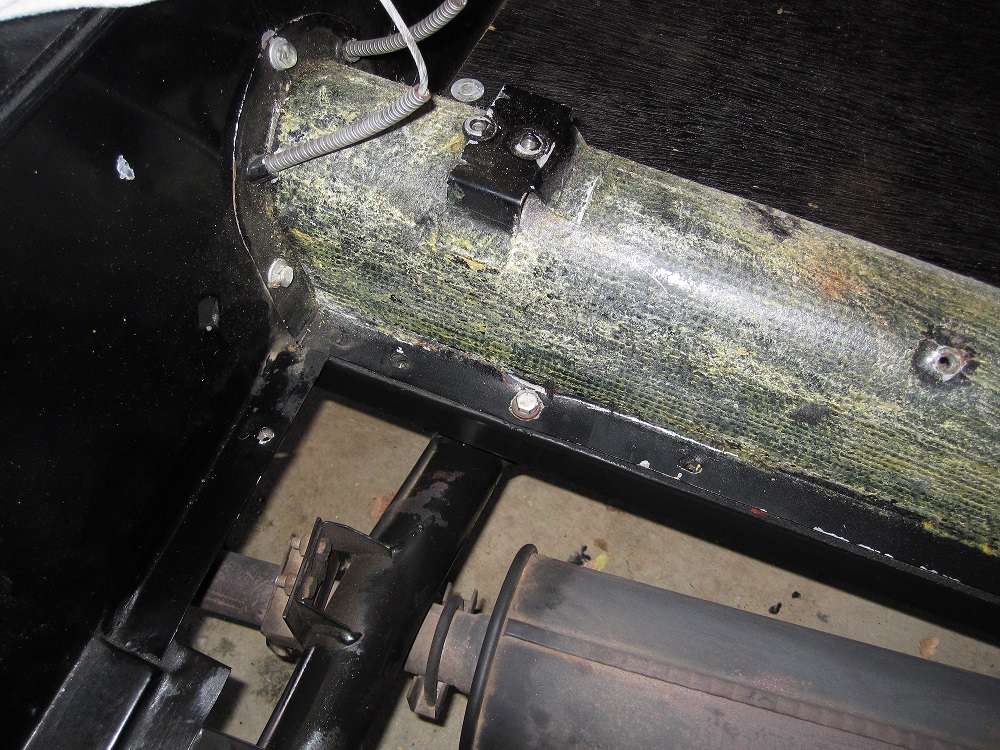

Driveshaft Tunnel 3 BEES 3/16W 1/4 BSF 3/4" Cad F,S Cap       camera
Handbrake to Tunnel 2   1/4W 5/16 BSF ¾" Cad F, S Cap       camera
Handbrake Cable Retainer 2 GKY D 3/16 W 1/4 BSF ¾" Cad F, S Cap       camera

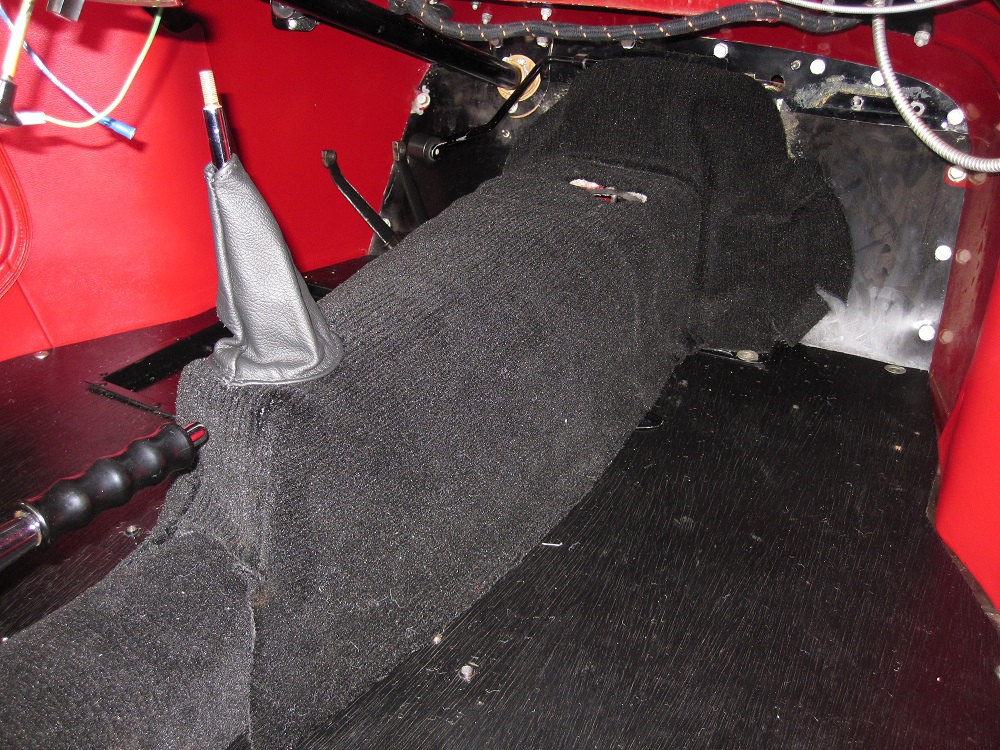

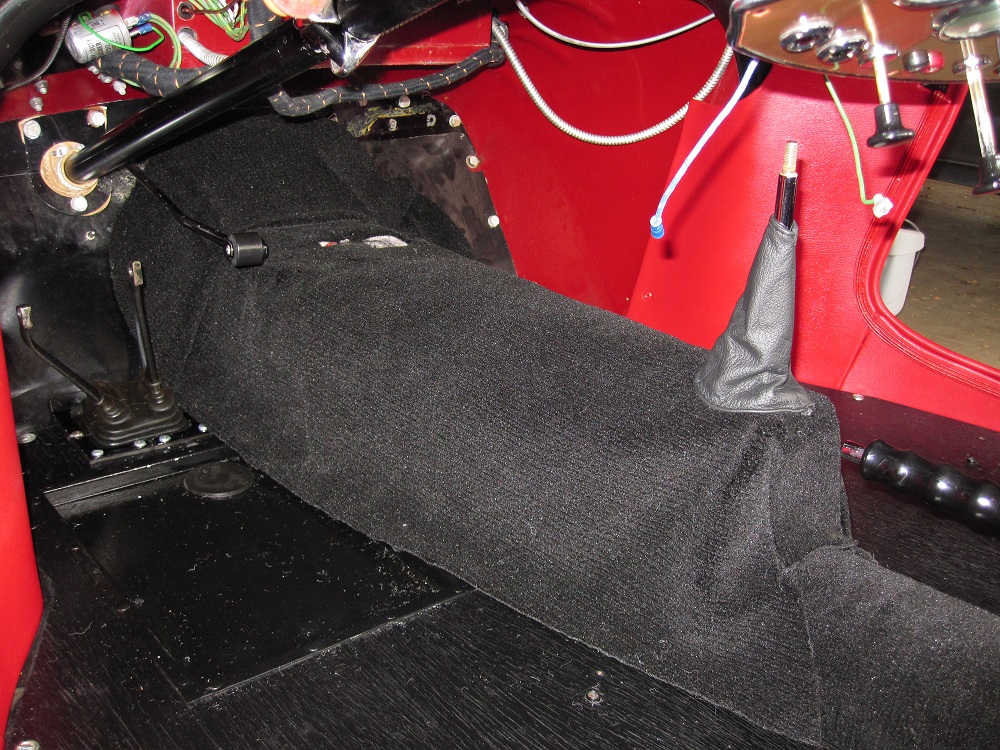

Transmission Tunnel Floor 7 Flat Slot 1/4 BSF 1" Cad FB Cap       camera

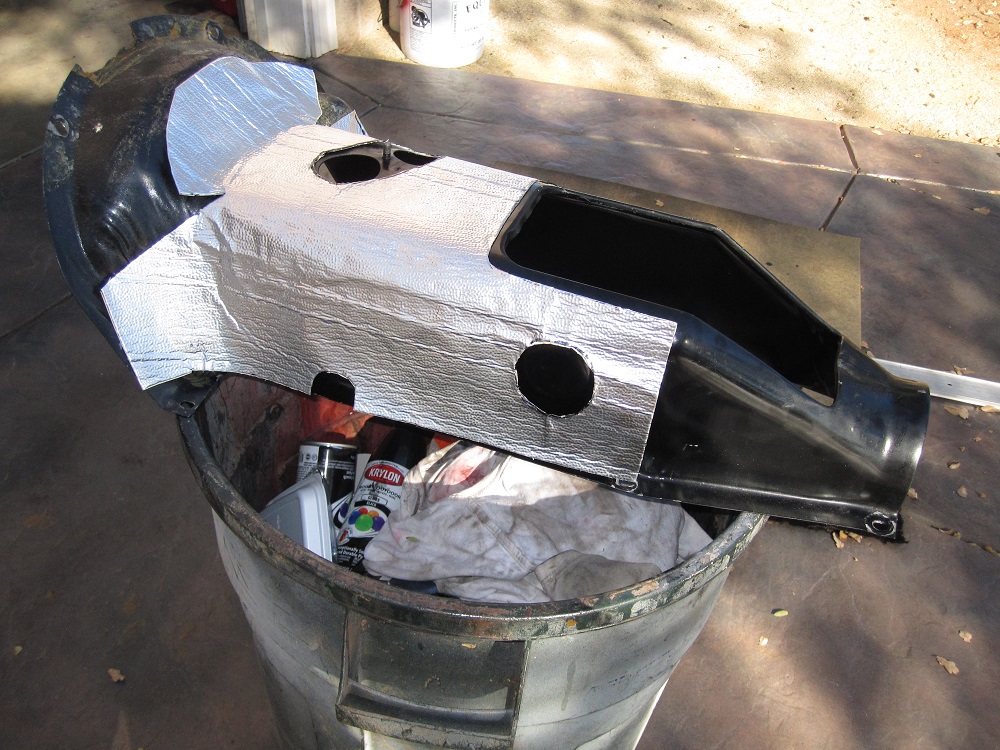

Transmission Tunnel 5 Flat Slot 1/4 BSF 1/2" Cad FB Cap     On the toeboard and the 5th one is at the lower right corner camera
Pedal Excluder 5 Round Slot Wood 5/8" Cad         #12 camera
Pedal Excluder Captive 1 Flat Slot 1/4 BSF 1 1/2" Cad FB Cap     Through pedal box rubber and into pedal box at right front of excluder camera
Gas Pedal Assembly 2   3/16 W 1/4 BSF Black     3/16 W S Black Pins on each block align assembly to toeboard camera
Gas Pedal Roller Screw 1     2BA Cad           Special machine screw that secures roller camera
Master Cylinder Fill Cover 2   Slot 2BA ½" Black   T Nut   Black On cars without footwell
Door Strikers 4 Oval Phillips 2BA ¾" Chrome   Cap     2 each striker
Door Strikers 4 Oval Phillips #10 Wood 1 ¼" Chrome         2 each striker
Rear View Mirror 1     5/16 BSF       1/4 W FW, S Cad The threaded shaft is part of the mirror. The spring washer for the mirror is unique, wide and multi spirals.

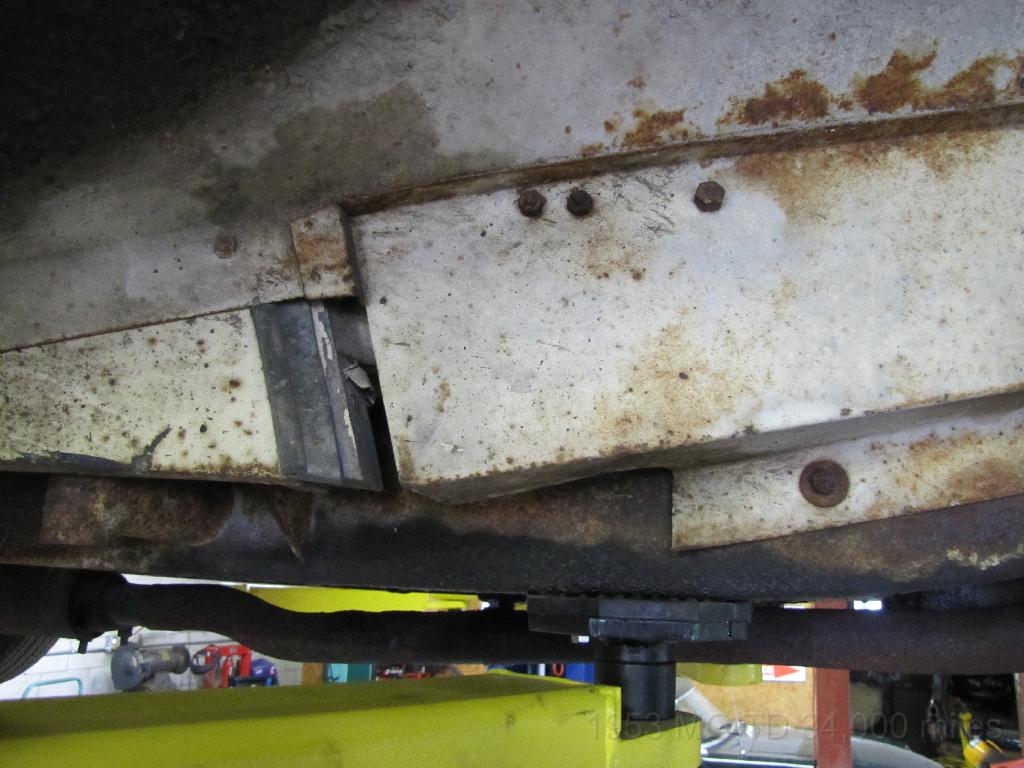

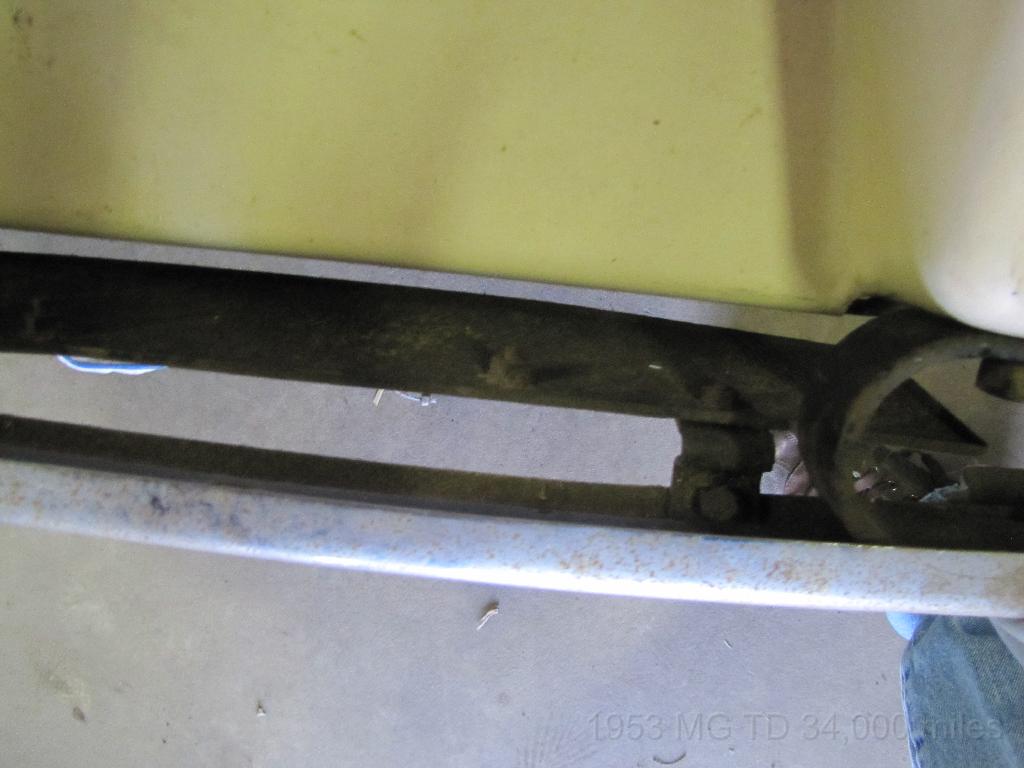

Body Tub To Frame Sides 8   1/4 W 5/16 BSF 7/8" Black F 1/4 W F,S Black   camera

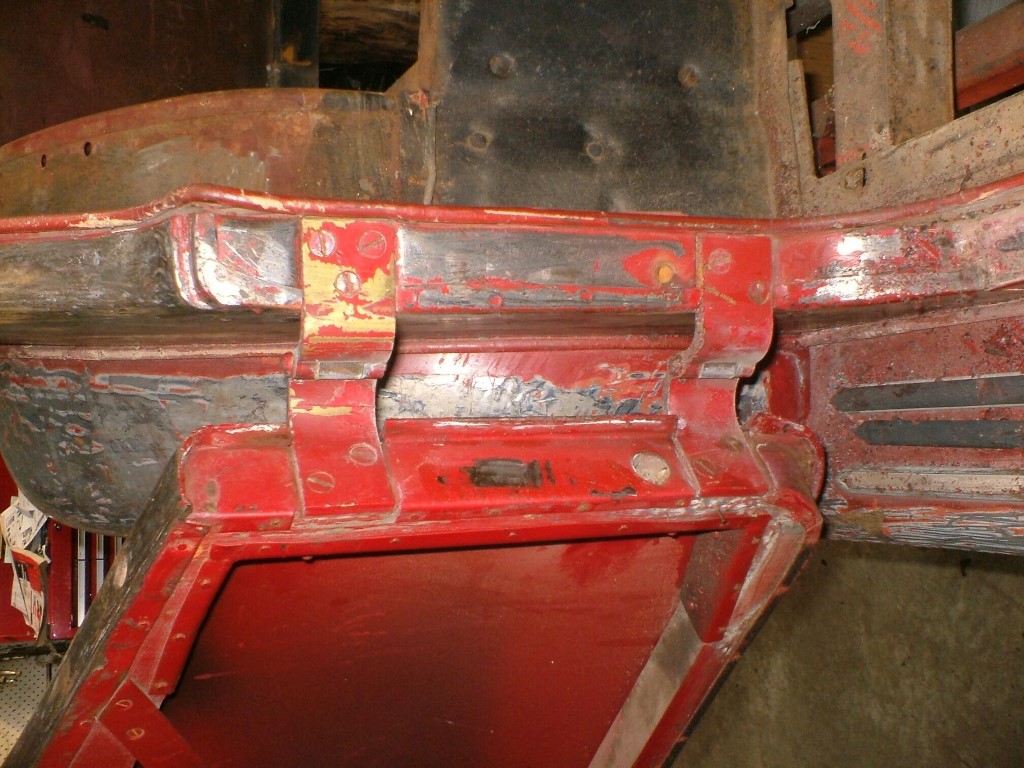

Body Tub To Frame Center 4/6   1/4 W 5/16 BSF 1 1/4" Cad F 1/4 W F,S Black Use pads between frames to shim door openings. Begining at TD20749 there were two additional bolts at the stiffener tube. camera

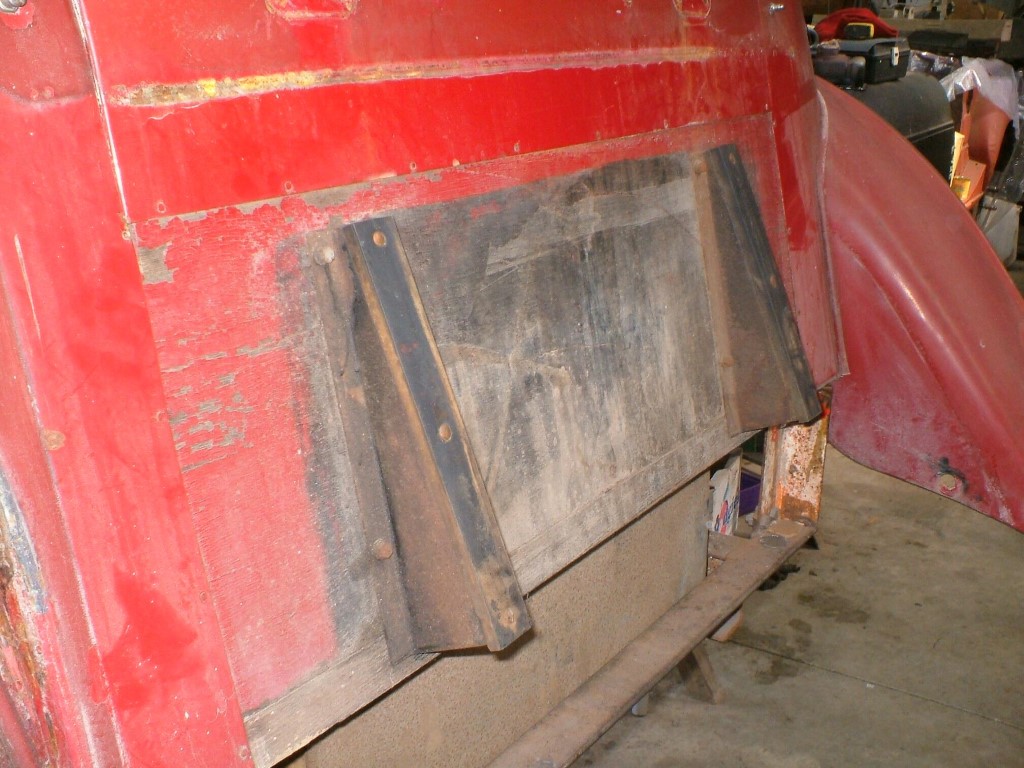

Body Tub To Frame Rear 2   1/4 W 5/16 BSF 2 3/4" Cad F 1/4 W F,S Black

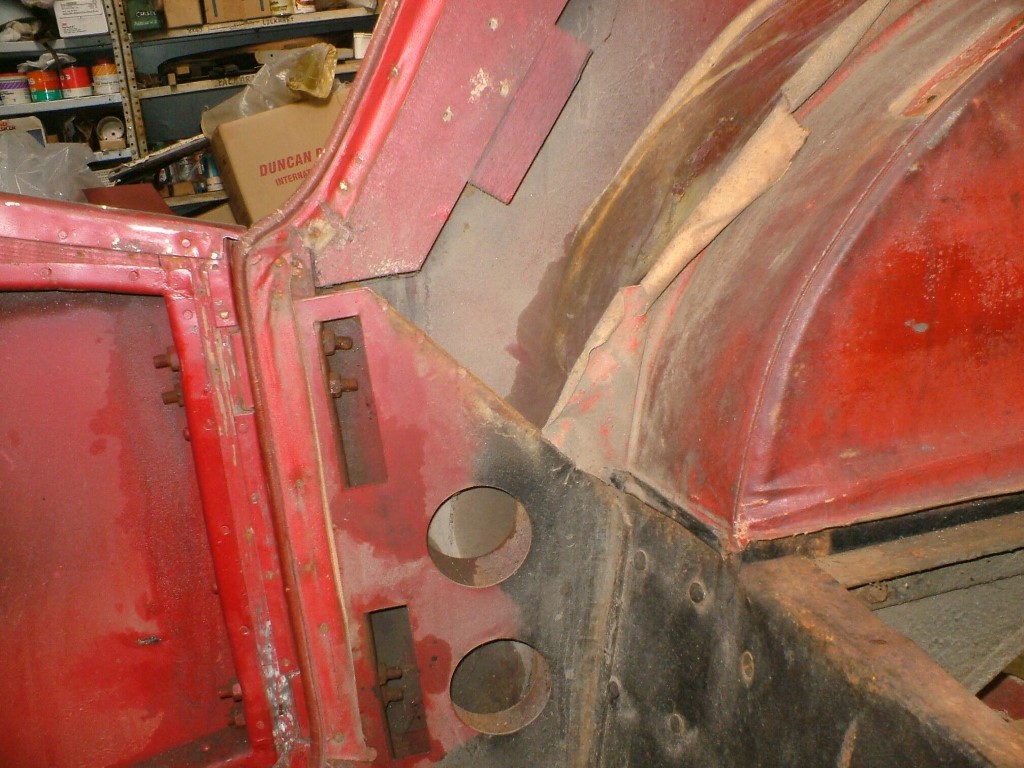

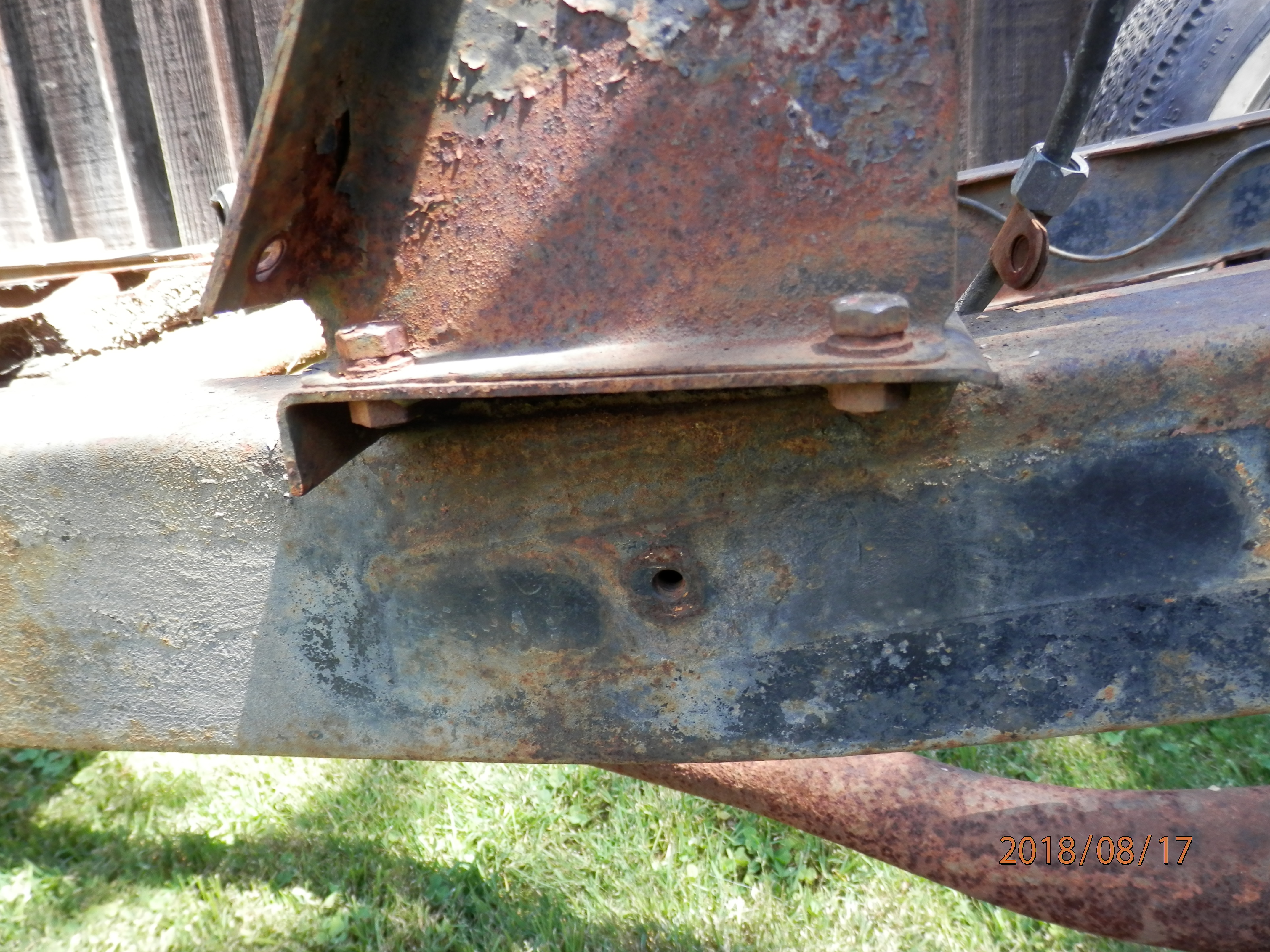

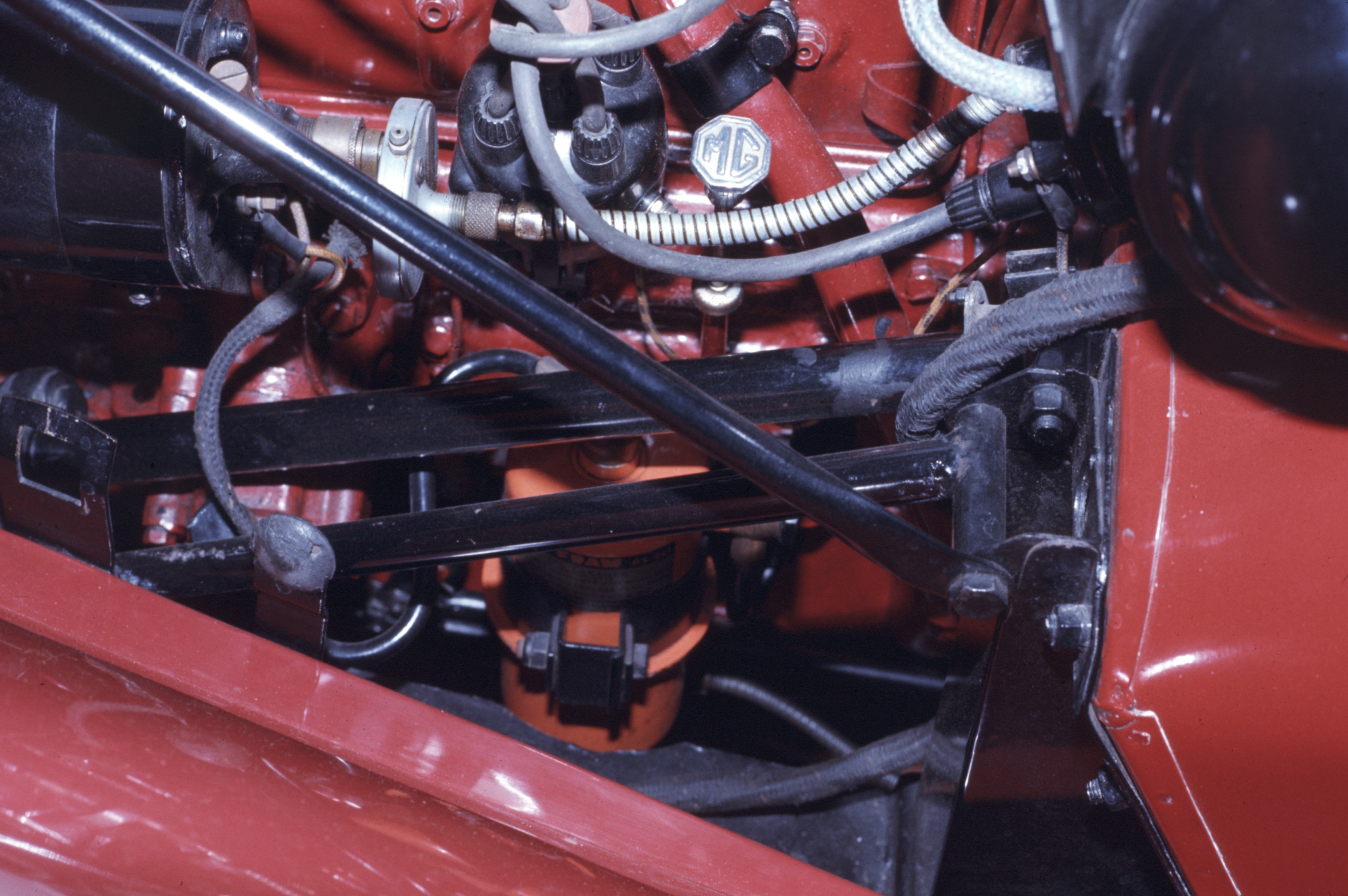

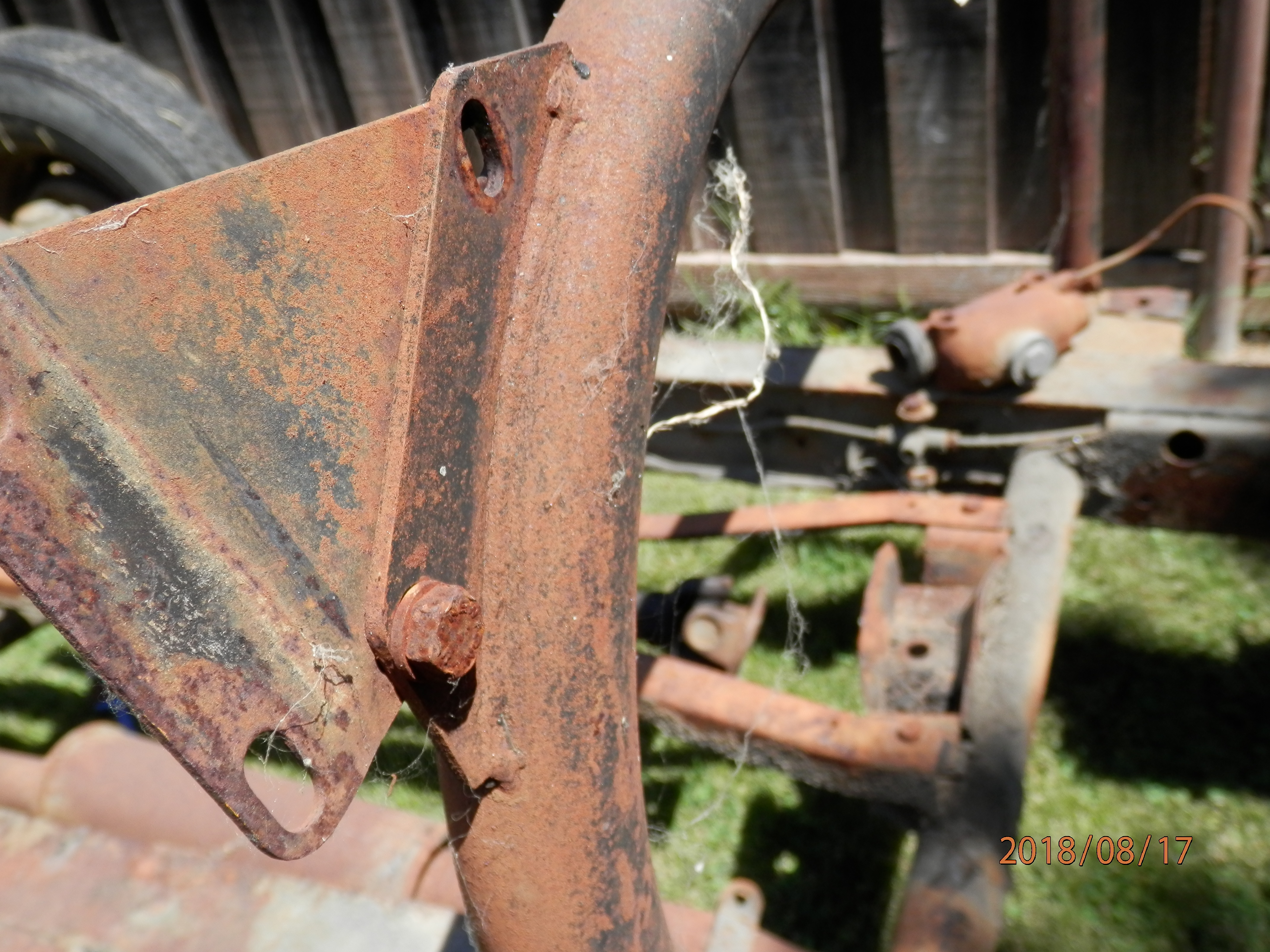

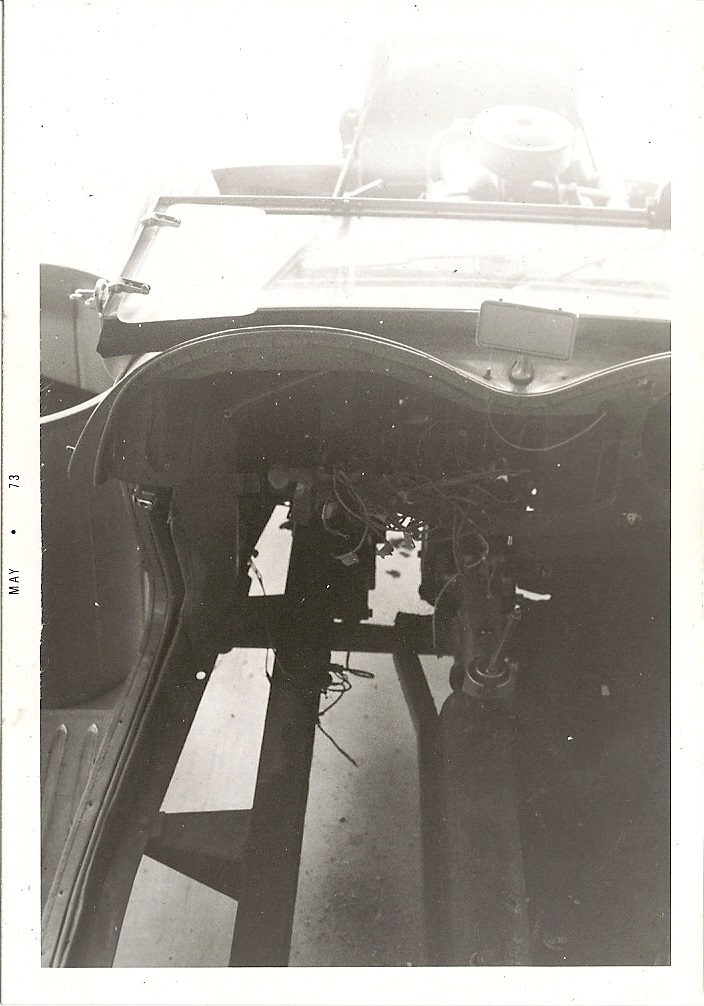

Scuttle Cross Brace Brackets 8 Newton R 5/16 W 3/8 BSF 7/8" Black   5/16 W S Black These tie the body to the body stiffener tube (roll bar) camera

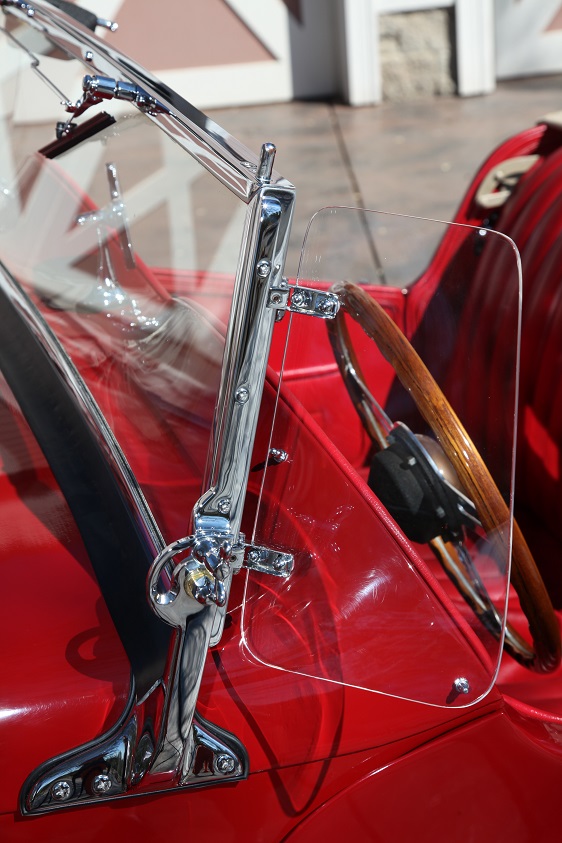

Windscreen

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Windscreen Upright Studs - Acorn 2   5/16 5/16 BSB       Acorn Brass 'D' Chrome BSB stands for British Standard Brass and has 26 tpi. The "D" washer was left natural brass. camera

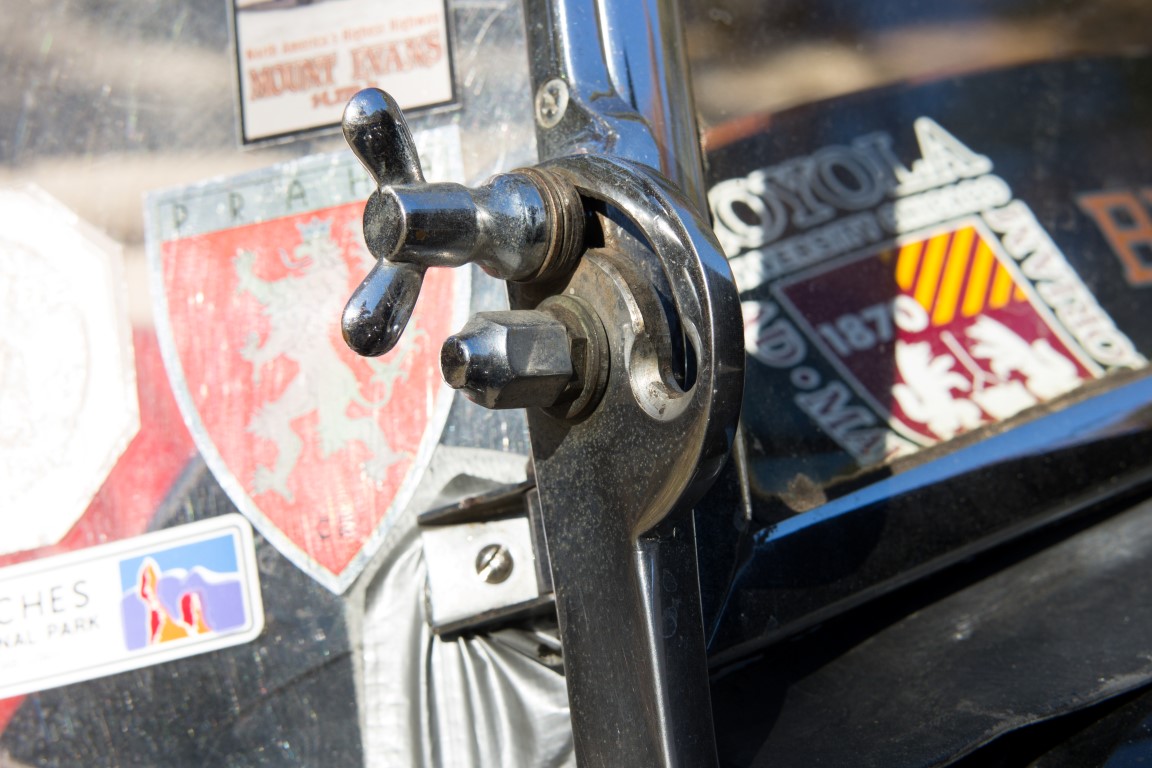

Windscreen Upright Studs - Wingnut 2   5/16 5/16 BSB       Wing Dome Chrome Studs are screwed into castings and are pinned from both sides. camera
Windscreen Mounting Brackets 4 Oval Phillips 1/4 BSF 2" Chrome   1/4 W S Cad Very early cars had slotted screws. camera
Windscreen Mounting Brackets (rear) 2 Oval Phillips 1/4 BSF 2 ¼" Chrome   1/4 W S Cad Very early cars had slotted screws. camera
Windscreen Mounting Brackets (top) 2 Oval Phillips 2BA 1½" Chrome N/A 0BA S Cad Wedge spacer inside body bucket. Early cars probably slotted. camera
Top Frame 4 Round Phillips 2BA 1" Chrome   2BA S Chrome Nuts on inside. RHD and 1953 cars had clips to hold windscreen wiper wire. camera
Side Supports 2 Oval Phillips 2BA 1" Chrome         On bottom. Early cars probably slotted. camera
Side Supports 6 Oval Phillips 2BA 3/4" Chrome         Early cars probably slotted. camera
Top 4 Flat Phillips 2BA 1/4 Chrome         Early cars probably slotted. camera
Sides 8 Flat Phillips 2BA 1/4" Cad         Early cars probably slotted.
Bottom 2 Flat Slot 2BA 1/4" Cad

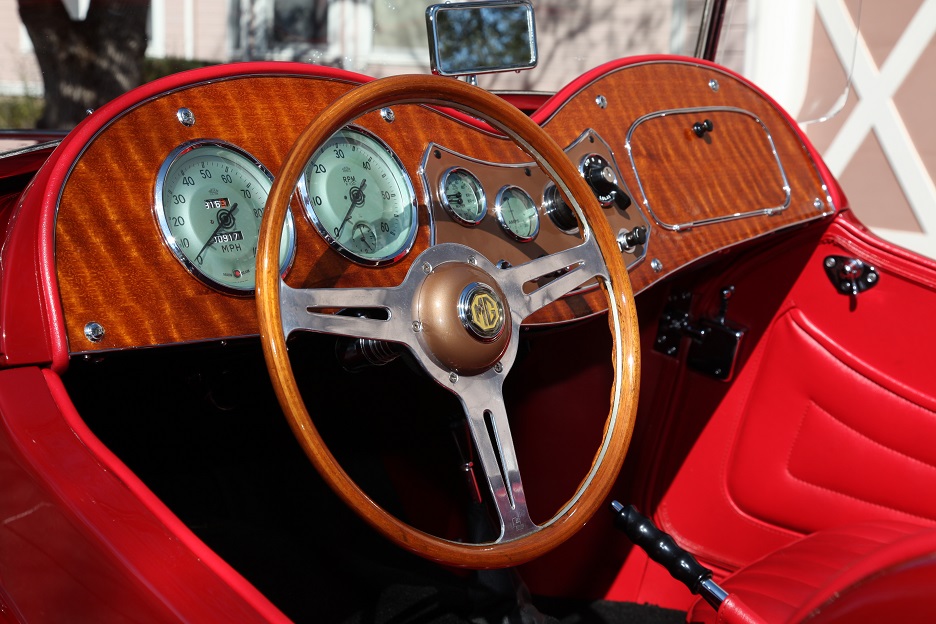

Dashboard

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Dashboard Screws 8 Oval Phillips 11 1 1/2" Chrome Fin       Bigger than a 10 but smaller than a 12. Early cars had slotted screws. The finish washers were straight sided. camera
Facia Bolts 6 Oval Carriage 2BA 1 1/4" Black   2BA FW, S Cad These were not painted but a blacking agent with a sheen camera
Glovebox Trim 32 Flat Slot #2 1/2" Chrome           camera

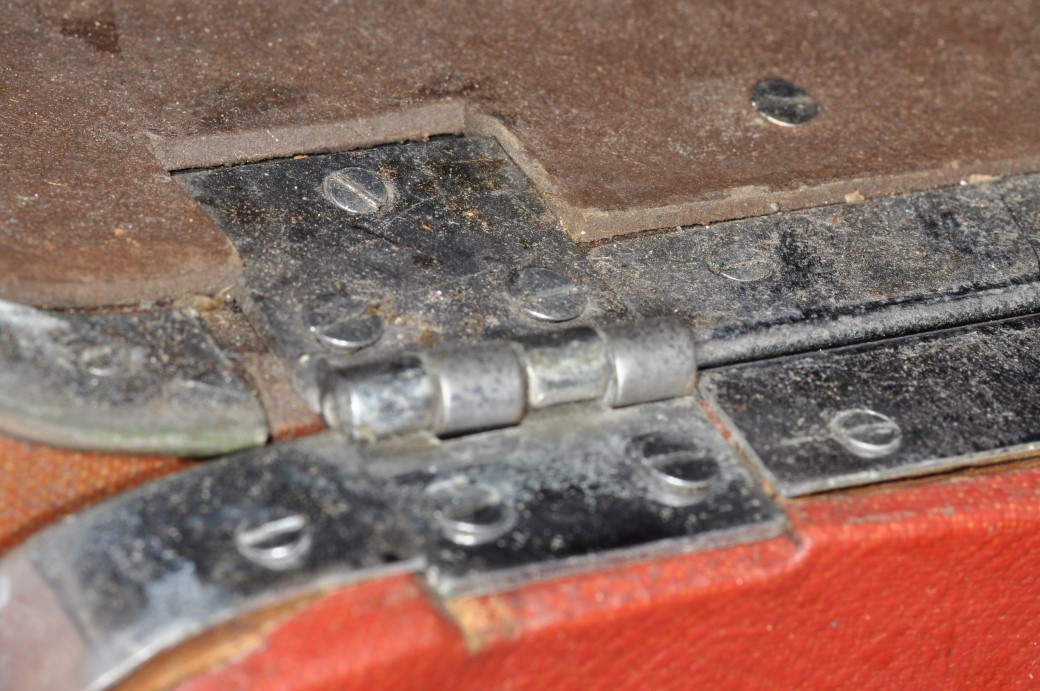

Glovebox Hinges 10 Flat Slot #3 1/2" Chrome           camera
Lower Trim 10 Round Slot #3 1/2" Chrome           camera
Upper Trim 14 Flat Brads #20 1/2" Natural         Have seen round headed brads

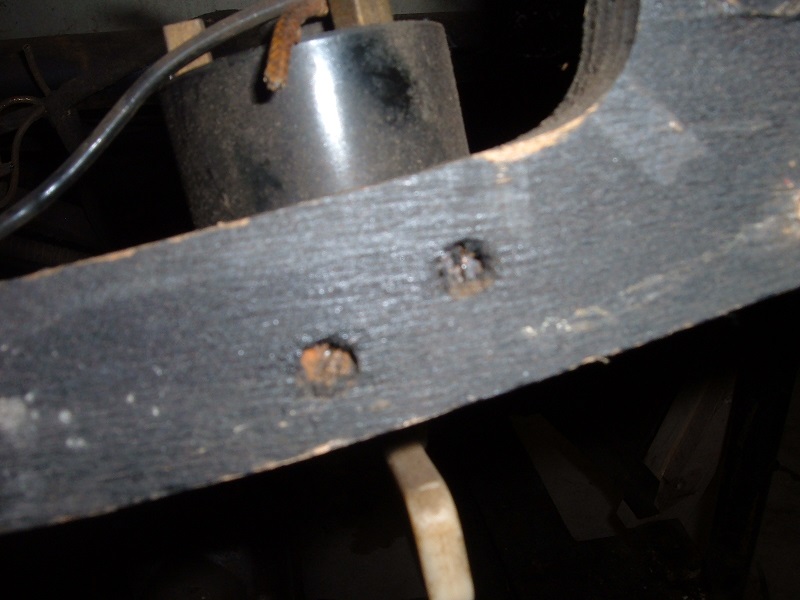

Turn Signal Switch Bracket 2 Flat Slot 2BA 1 1/4" Cad         Top side of underdash camera

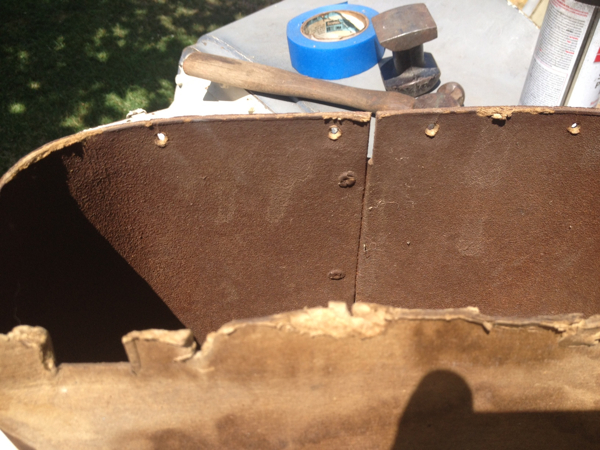

Glovebox 6 Flat Slot #4 1/2" Cad         2 screws on the bottom and 4 on the top. camera

Firewall

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Firewall to Body Tub 16 None 1/4 W 5/16 BSF 2 ½ Body Color       Black Putty between firewall and body bucket
Firewall to Body Tub with Bracket 6 None 1/4 W 5/16 BSF 2 ¾ Body Color       Black Putty between firewall and body bucket

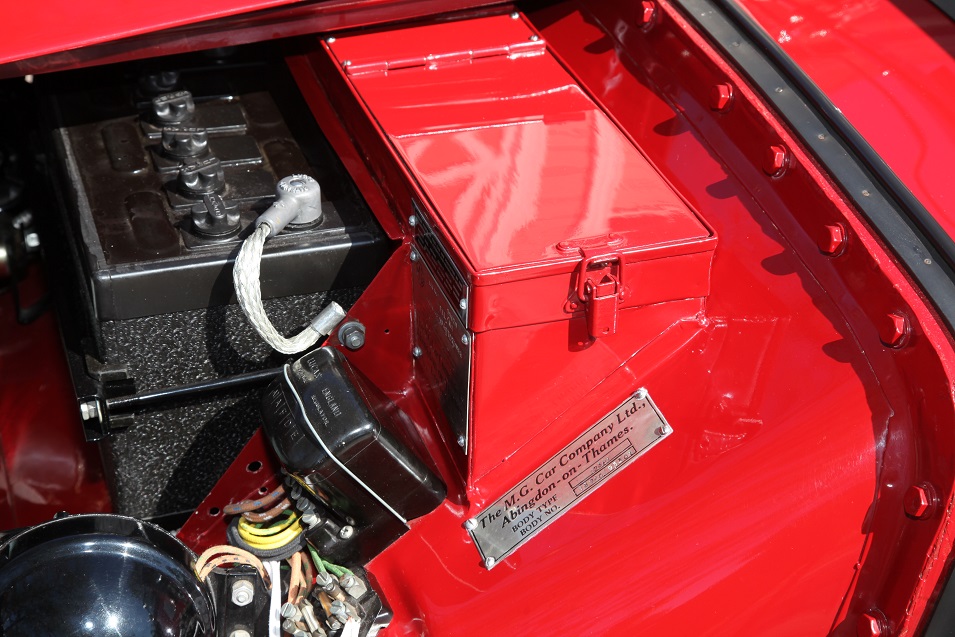

Battery Underliner/Tray 2 GKN D 3/16 W 1/4 BSF 1 1/8 Cad or Black F 3/16 W S Cad Flat washer under bolt small
Battery Bracket 2     1/4 BSF   Black   3/16 W F Cad The battery bracket is held in place with two 'J' hooks and the nut is threaded onto the end. It is secured with a 1/2 height lock nut.
Battery Ground Bolt 1 Rubery Owen 3/16 W 1/4 BSF 1/2 Cad   3/16 W S Cad
Battery Cap Terminal Screw 2 Oval Slot #10 3/4 Cad         Sheet metal screw
Tool Box Lid 4 Round Slot 4BA 3/8 Cad or Body Color         Threaded into the battery box channel lip

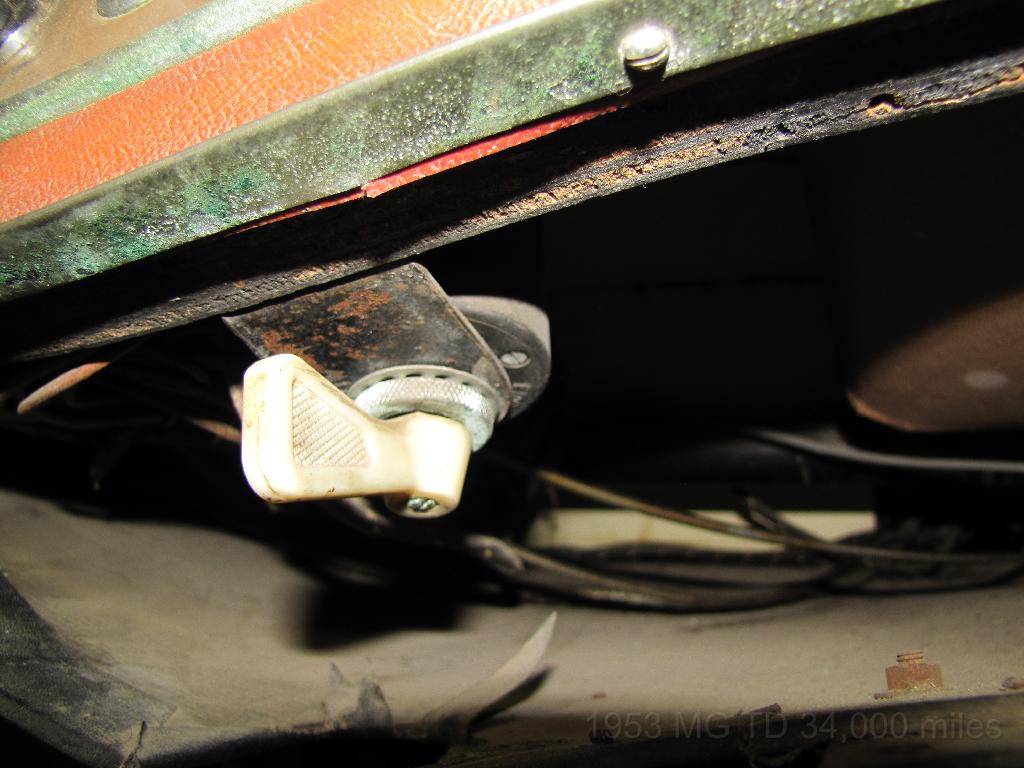

Dipswitch Backet 3   3/16W 1/4 BSF 3/4 Cad   3/16W S Cad Later cars with floor mounted dipswitch
Dipswitch 2 None 1/8W 3/16 BSF 1/2 Cad S       Dipswitch is threaded camera
Horn to Bracket 4 Newton D 3/16 W 1/4 BSF 5/8 Cad   3/16 W S Cad Nuts to outside camera
Horn Bracket to Firewall 4 Newton D 1/4 W 5/16 BSF 5/8 Cad   1/4 W S Cad Bolt on top. Has backing plates underneath. camera

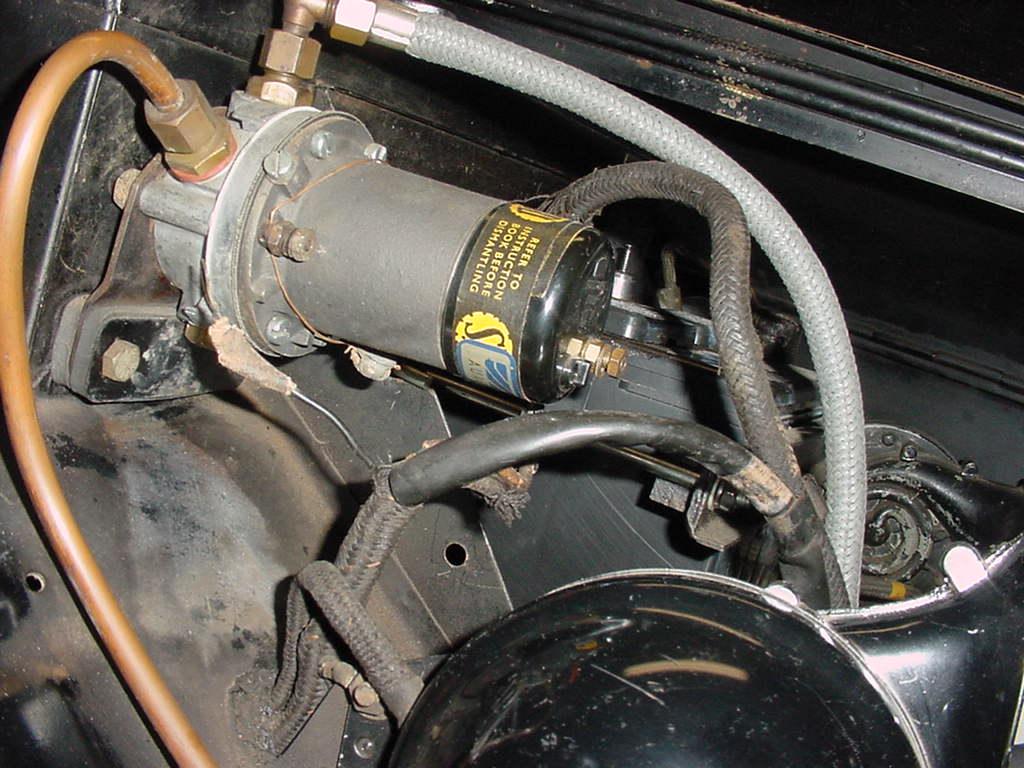

Fuel Pump Bracket 2   1/4 W 5/16 BSF 1 1/4 Cad   1/4 W S Cad Nuts inside toolbox camera
Fuel Pump to Bracket 2   3/16 W 1/4 BSF 5/8 Cad S         camera

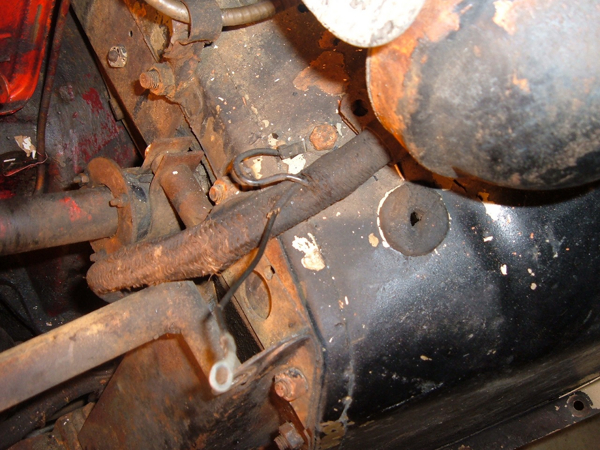

Ground Wire to Firewall 1 RUBBERY OWEN D45-T 3/16 W 1/4 BSF 5/8 Cad   3/16 W S Cad Need to ensure you have a good connection under the firewall.

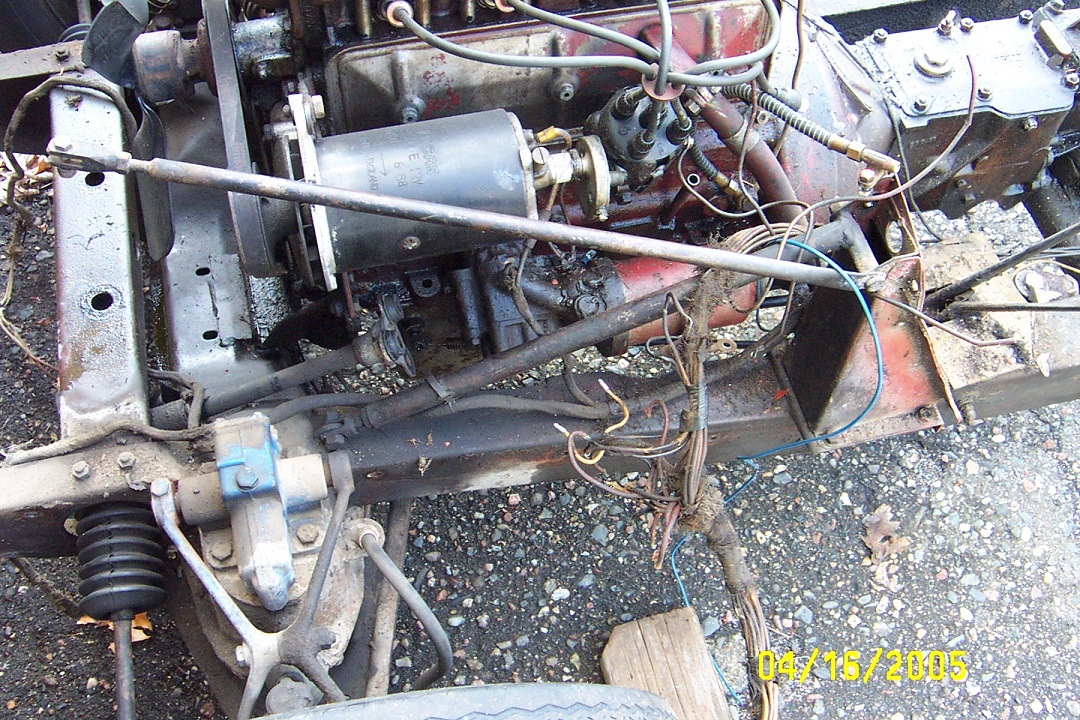

Firewall Wiring Harness Clamp 1 Round Slot 3/16-32 BSF ½" Cad   1/8 W S Cad Slotted Machine Screw.
Starter Pull Switch Bracket 2 Woden D H-T 3/16 W 1/4 BSF 5/8 Cad   3/16 W S Cad Nuts below

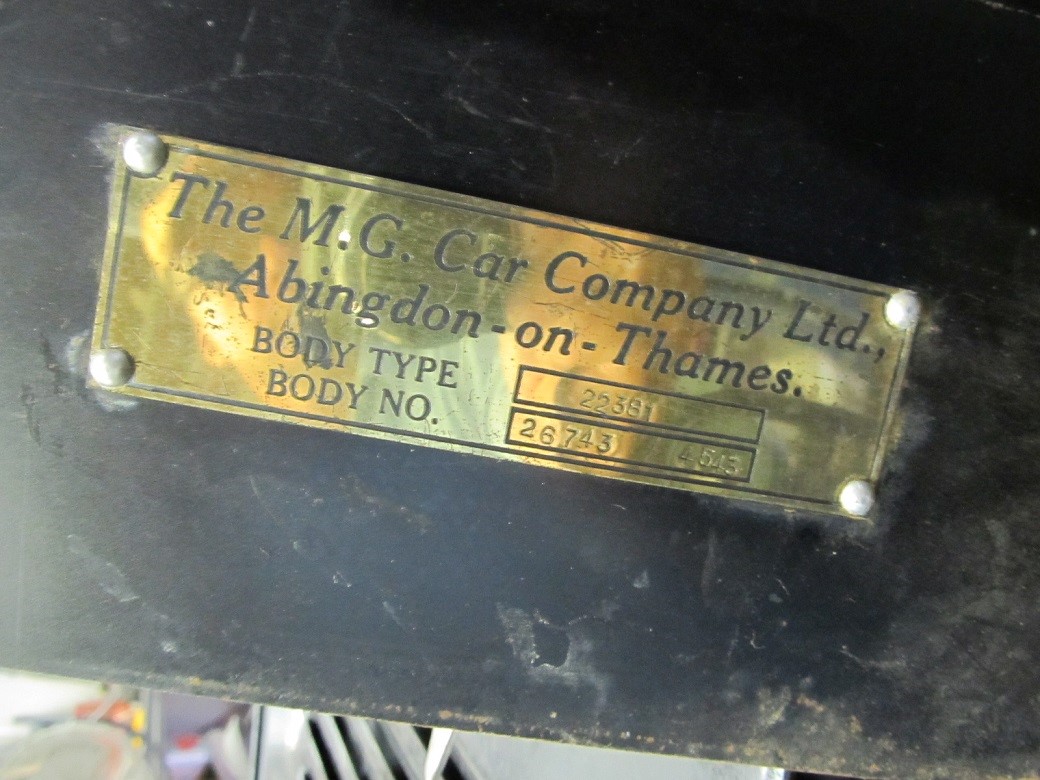

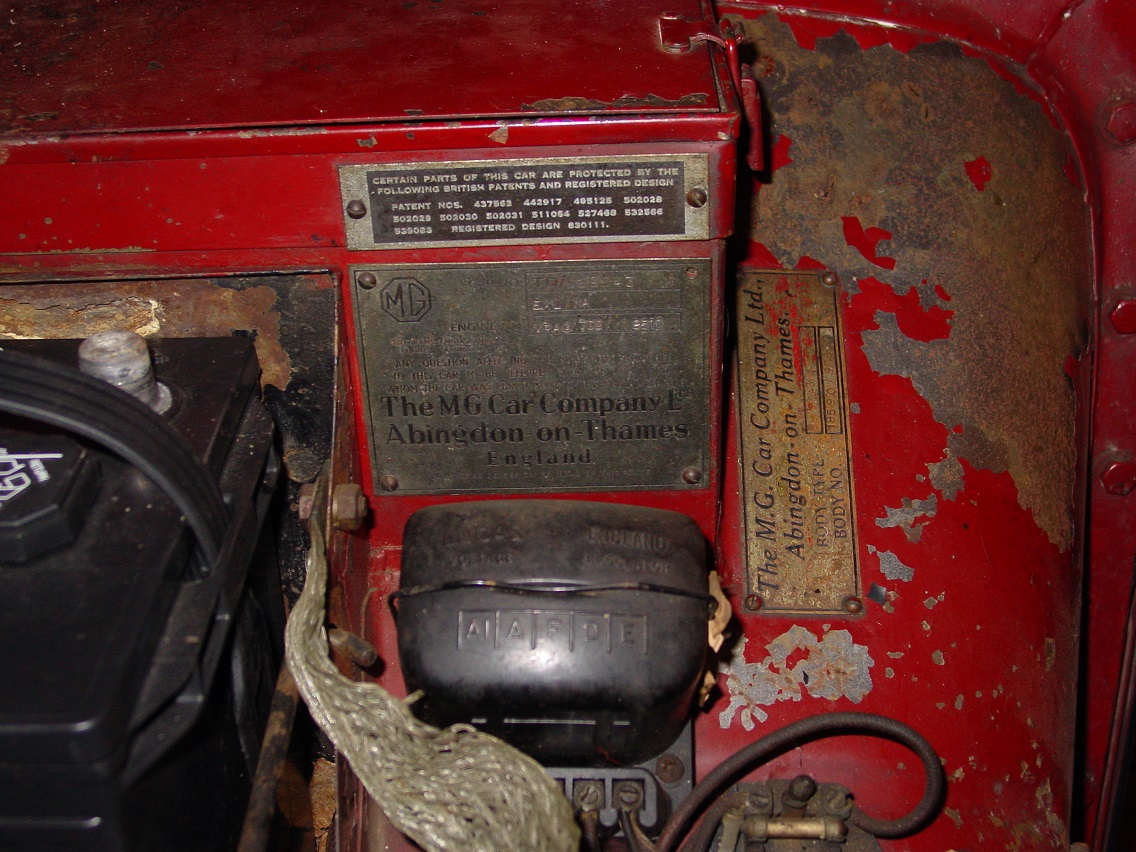

Plates 10 Round Slot 4BA 7/32" Nickel       Natural Square brass nuts camera
Body Plate Late 4 Round Rivet   ¼" AL           camera
Coil 2 BEES 3/16 W 1/4 BSF ½" Cad   3/16 W S Cad Nuts underside
Firewall to Toe Board 13   5/16 W 3/8 BSF ¾" Cad F 5/16 W S Cad One has flat washers on both sides. Three are in captive nuts
Firewall to Toe Board (long) 1   5/16 W 3/8 BSF 1" Cad F
Turn Signal Relay 2   3/16 W 1/4 BSF 9/16" Cad   3/16 W S Cad
Voltage Regulator 2 Round Slot 2 BA 1 ¼" Cad F 2 BA S Cad Slotted (Early), Phillips (Later) camera

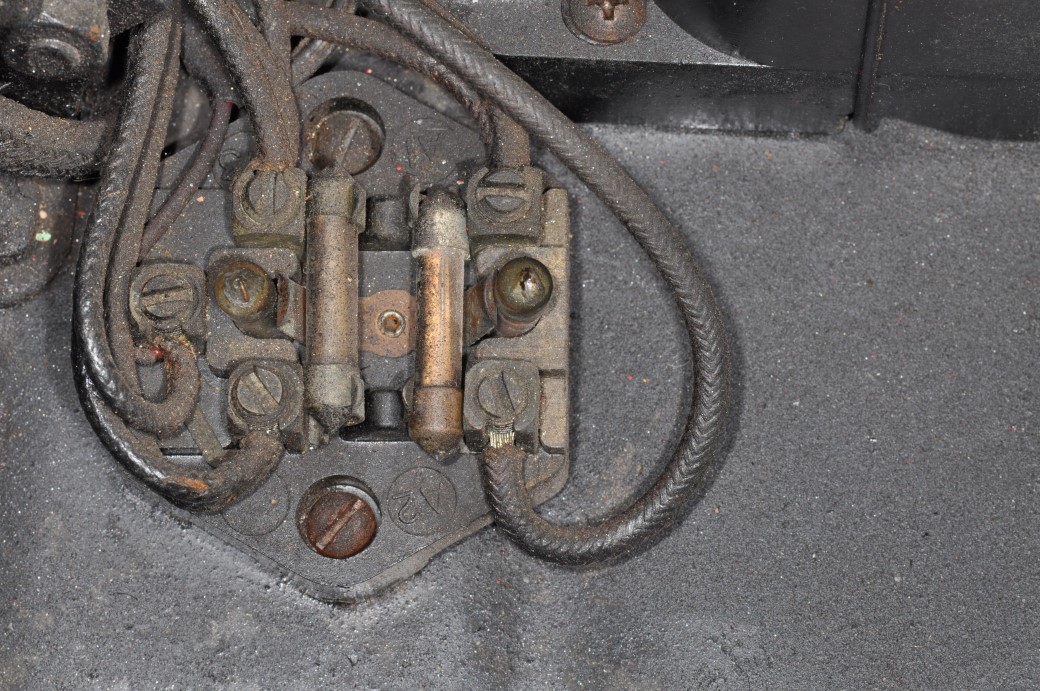

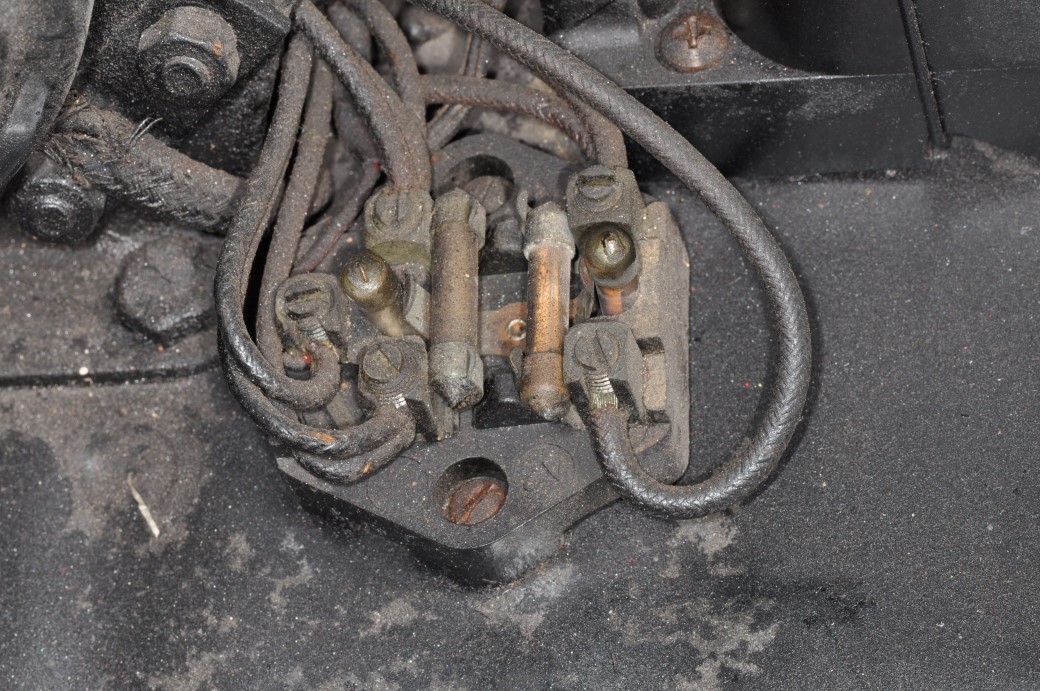

Fuse Block 2 Round Slot 2 BA 1;" Cad F 2 BA S Cad   camera
Oil Gauge Connector 1 Woden D H-T 3/16 W 1/4 BSF 3/4" Cad   3/16 W F,S Cad

Seat Hardware

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Receiver for seat bottom hinge 12 Round Slot #10 Wood ½" Black or Cad           camera

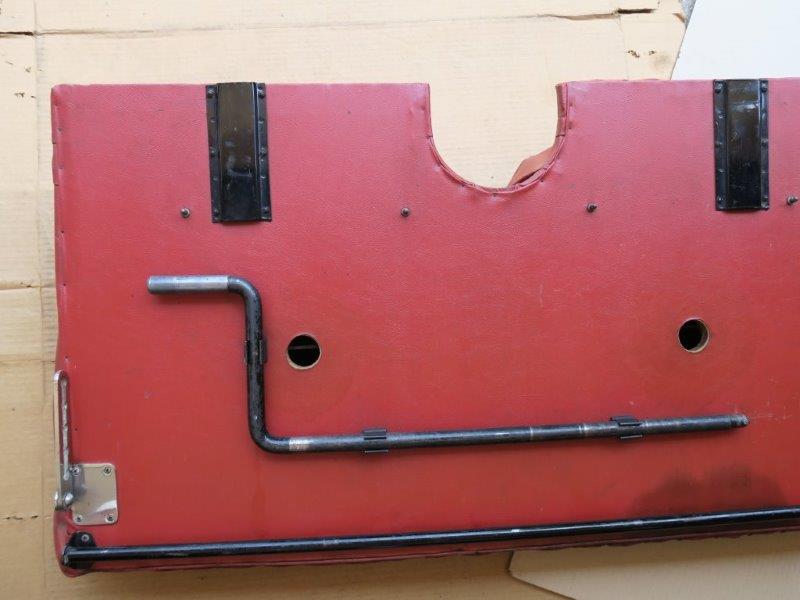

Crank Clips 6 Round Slot #8 Wood ½" Black or Cad           camera
Seat Back Adjust Bracket on Seat Back 8 Oval Phillips 2BA ¾" Chrome         Early cars probably slotted. camera
Tonneau Bar on Seat Back 8 Oval Phillips Wood ¾" Chrome         Early cars probably slotted. camera

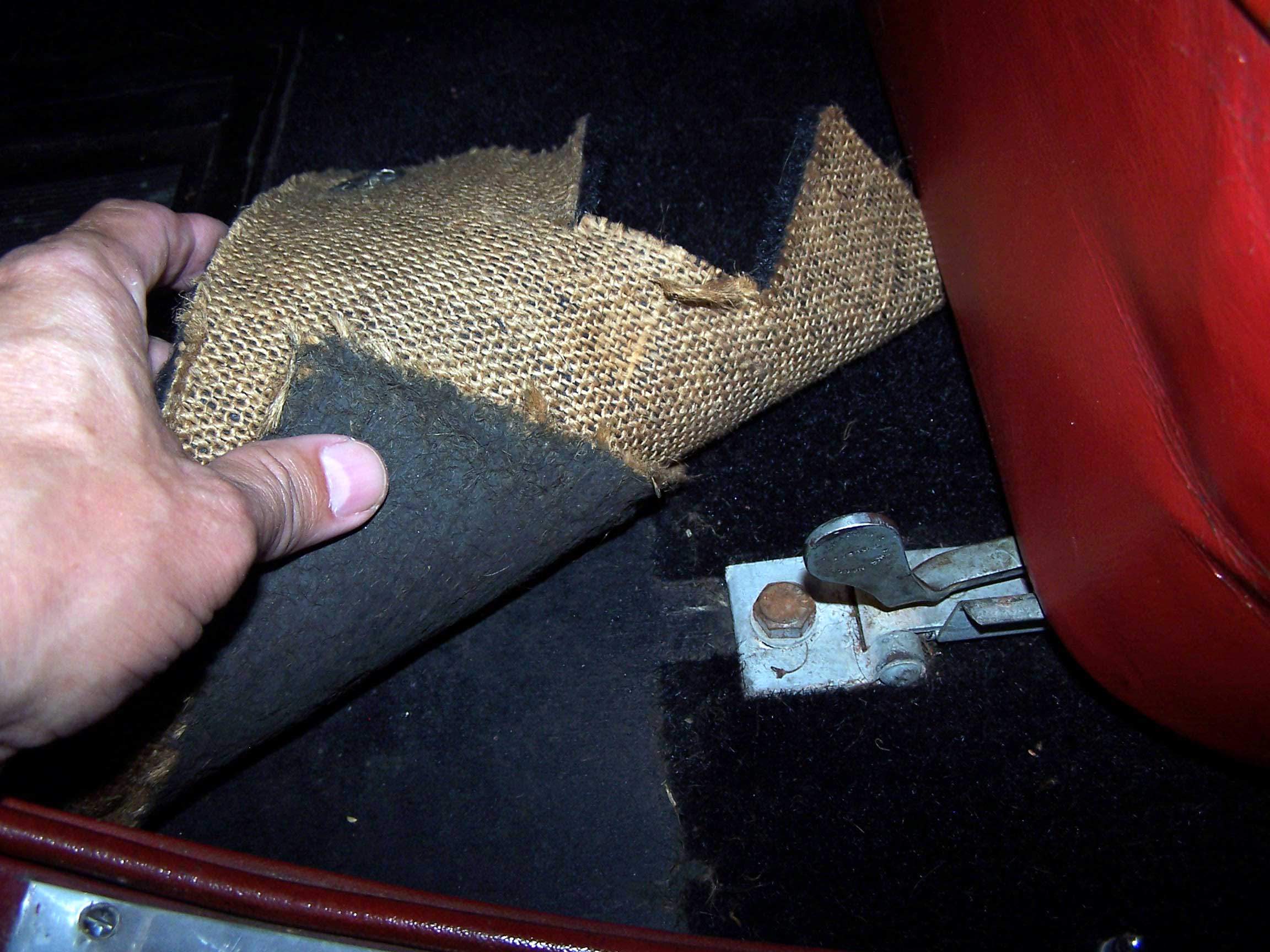

Seat Track to Floorboard 4   1/4W 5/16 BSF 3/4 Cad F, S         camera
Seat track to seat bottom 16 Flat Slot 2BA 3/4 Cad   Cap     T-Nuts in wood bottom camera
Seat Hinge Bottom 4 Flat Slot 2BA 3/4 Cad   Cap     T-Nuts in wood bottom camera

Chassis

Bumpers

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Carriage 4 N/A Carriage 3/8 BSF 1 ¼ Chrome N/A 5/16 W S Black Two in front bumper and two in rear. Used to hold outboard bumper bracket in place. camera
Carriage 1 N/A Carriage 3/8 BSF 1 Chrome N/A 5/16 W S Black One in rear center to hold backer bar in place. camera
To Frame Front 2 Richards 5545R
or
LCR		 7/16 W 1/2 BSF 1 ¾ Black F, S Cap     Small spacers camera
To Frame Rear 2 Richards 5545R
or
LCR		 7/16 W 1/2 BSF 2 ½ Black F, S Cap     Large spacers camera

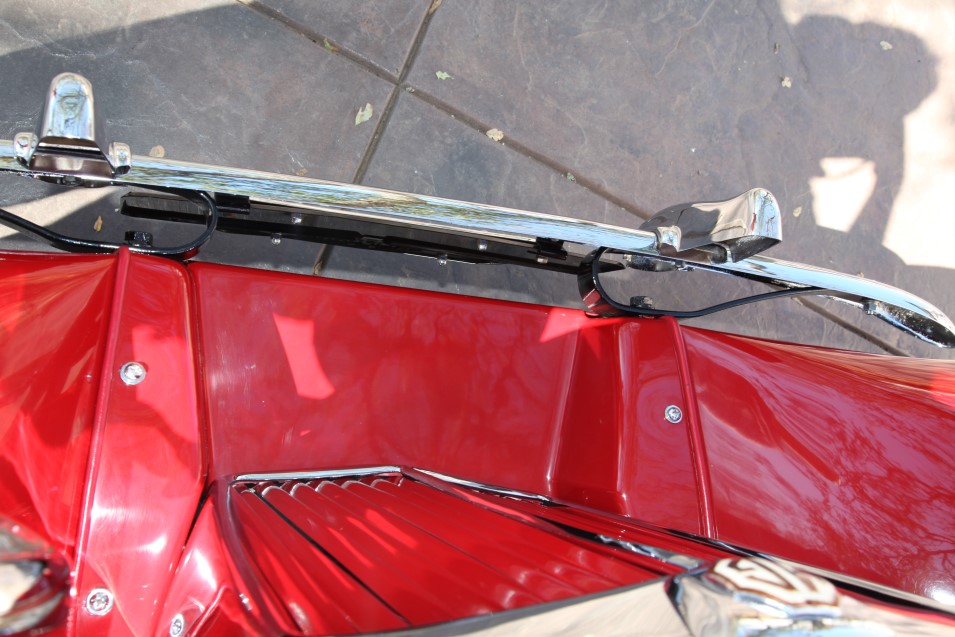

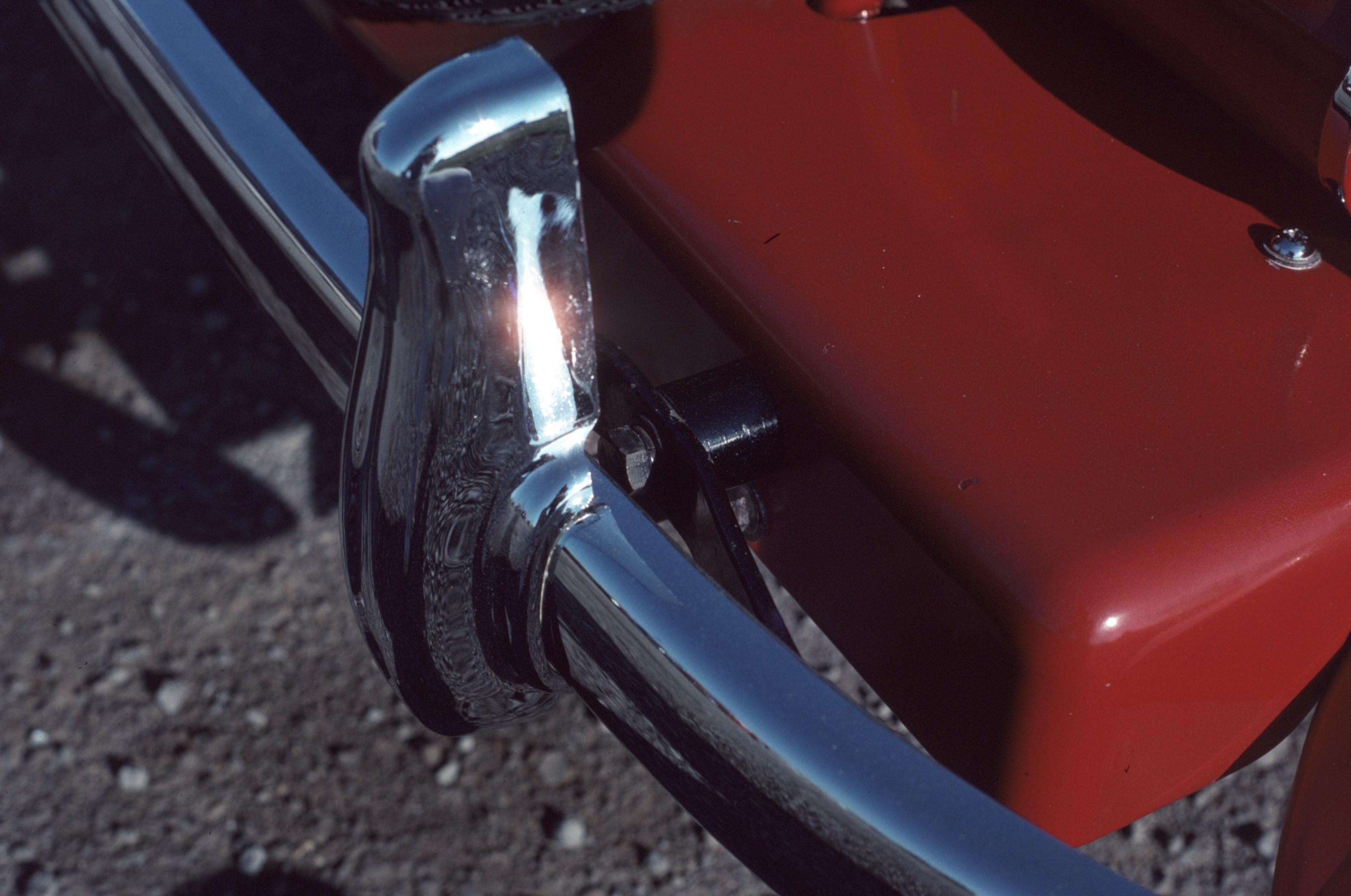

Overriders 4 LCR 5/16 W 1/4 BSF 1 ½ Black S Cap     Bolts screw into threaded backing plate on overrider camera
Front License Plate Holder Z Brackets 2   1/4 W 5/16 BSF 3/4" Black   1/4 W S Black   camera

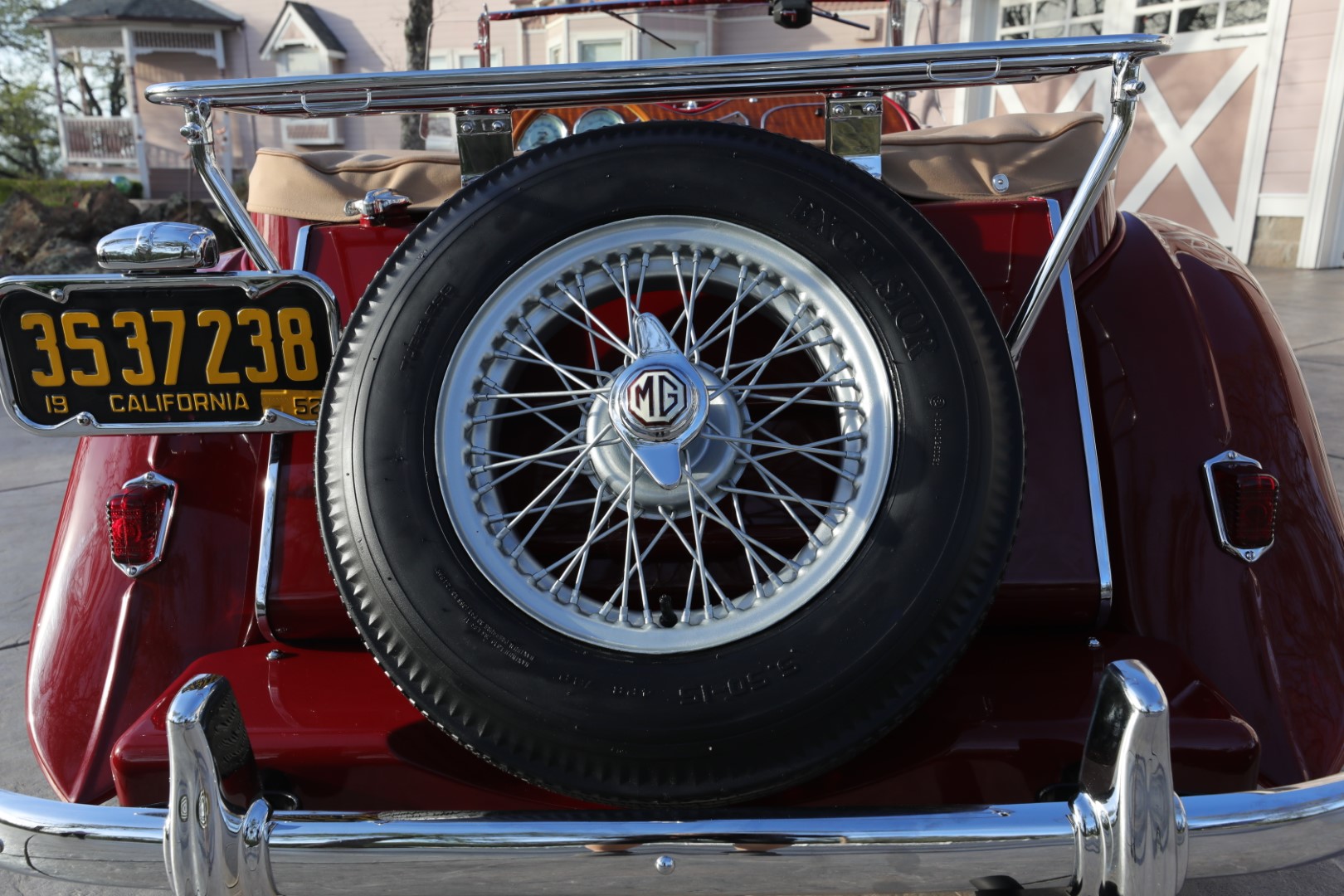

Spare Tire Rack and Fuel Tank

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Frame Tube Clamp 2   1/4 W 5/16 BSF 1 1/8" Black   1/4 W S Black   camera
Frame Tube Bracket 4   1/4 W 5/16 BSF 1 ¼" Black S         camera

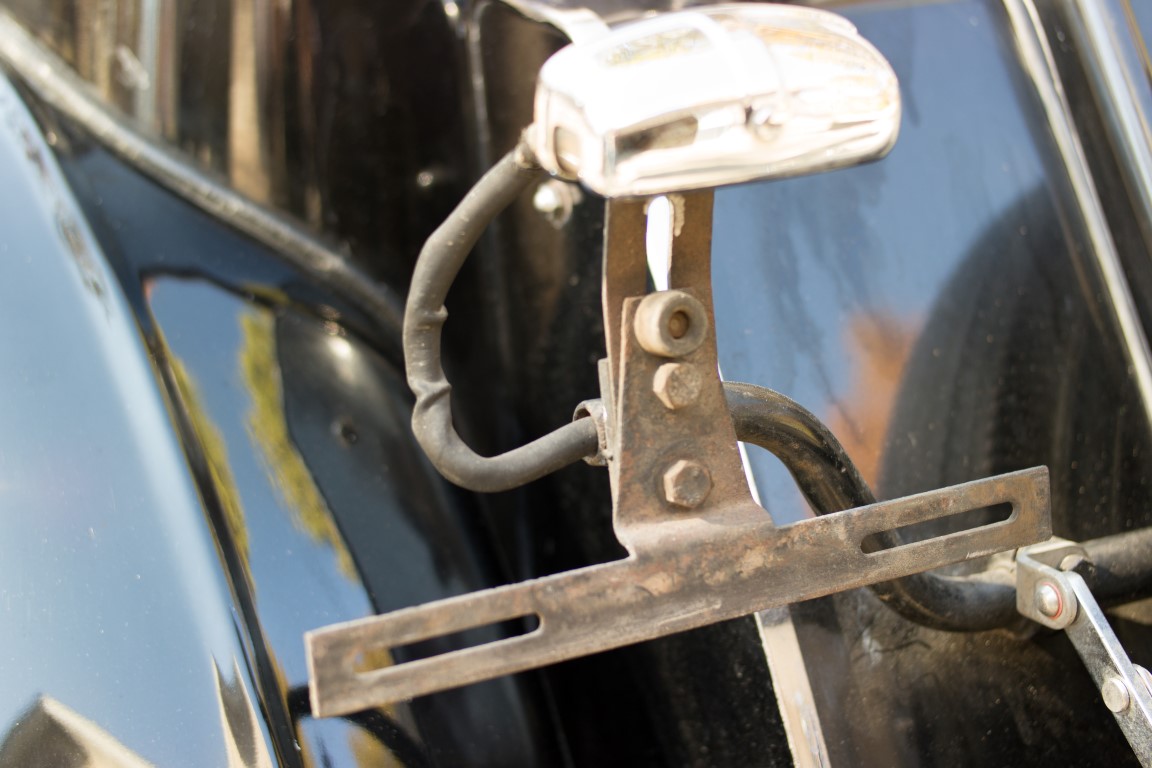

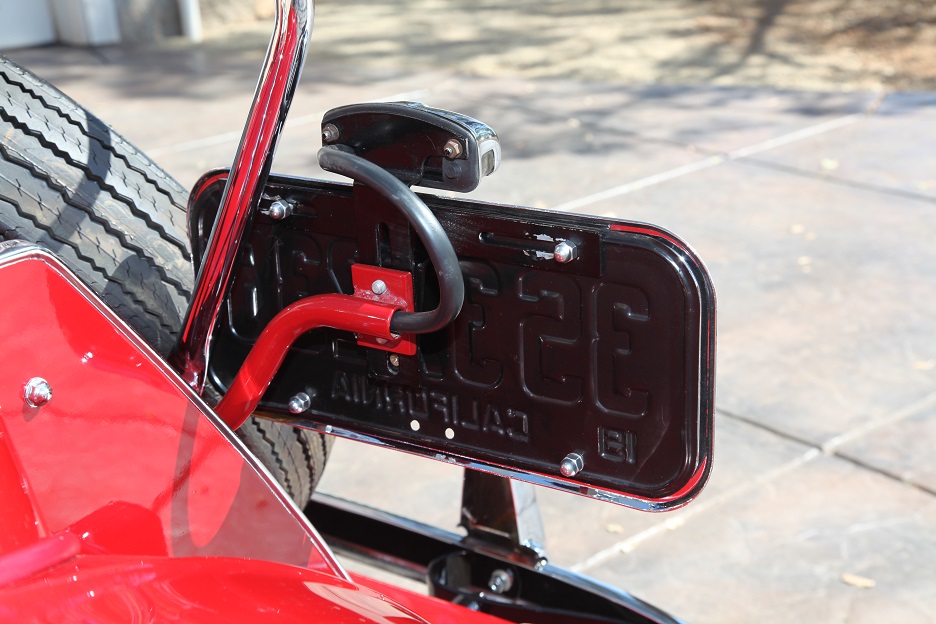

License Plate/Lamp Brackets 2   1/4 W 5/16 BSF 5/8" Cad S       Threaded into bracket camera
License Plate Lamp 2     2BA       2BA F Cad or Black Lamp housing provides studs camera

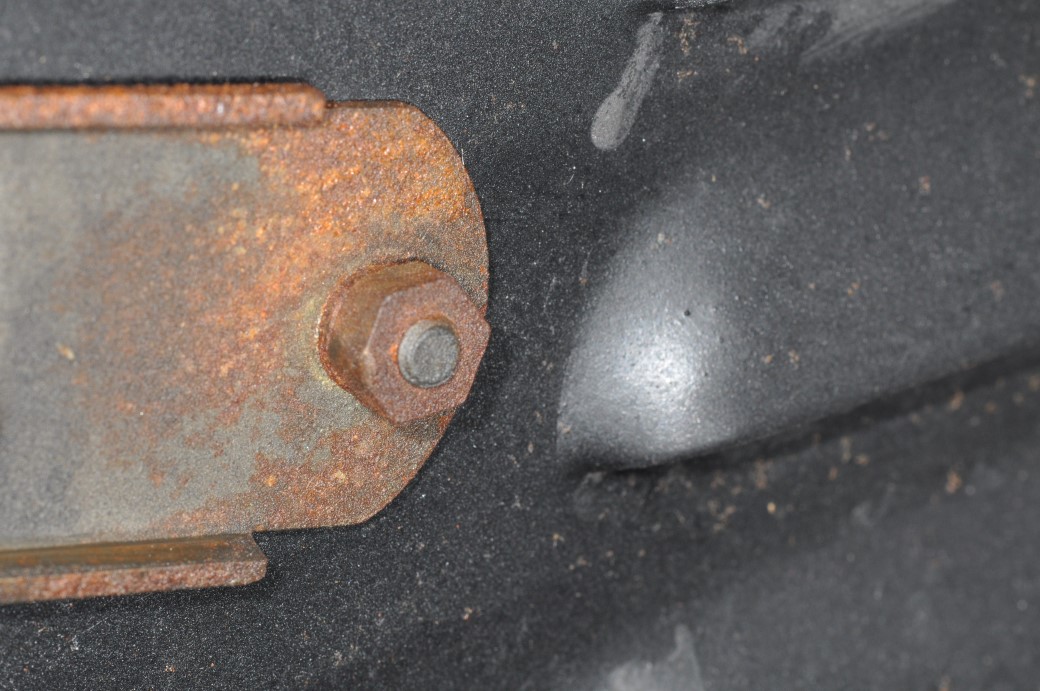

Fuel Tank Strap (bottoms) 4     5/16 BSF       1/4 W F Black Double nuts camera
Fuel Tank Strap Bolts 4 BEES, RO, Newall 1/4W 5/16 BSF 2" Interior Color FW Dome F Chrome Acorn nut on outside. Original luggage rack requires longer bolts (+½"") and a spacer. Inside bolt and fender washer painted interior color. The washer under the acorn nut was just wide enough to cover the acorn base with straight sides and chrome plated. camera
License Plate Holder and Plug Clamp 2   1/4W 5/16 BSF 1 ⅝" Body S         camera

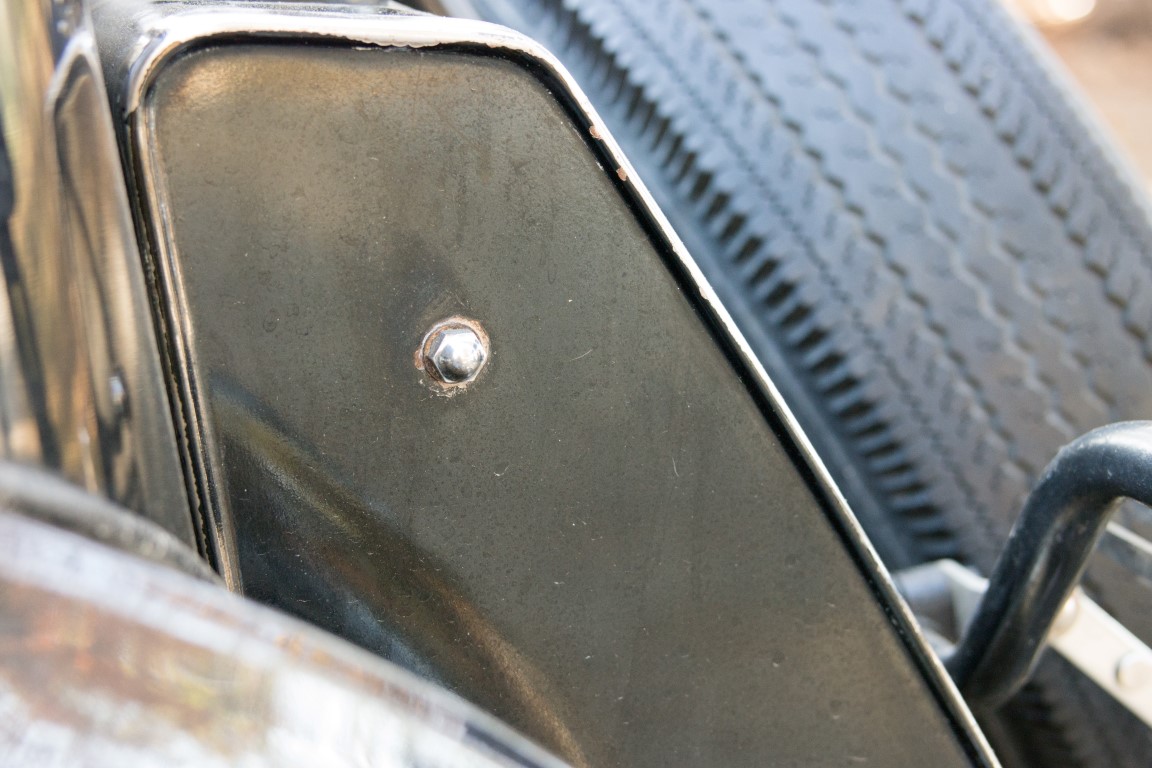

Fuel Tank Side Panel 4   3/16 W 1/4 BSF 5/8" Chrome F       Special acorn bolts camera
Fuel Tank Mount Angles 8 BEES 2BA 2BA 5/8" Cad F T S Cad Round T nuts in plywood camera

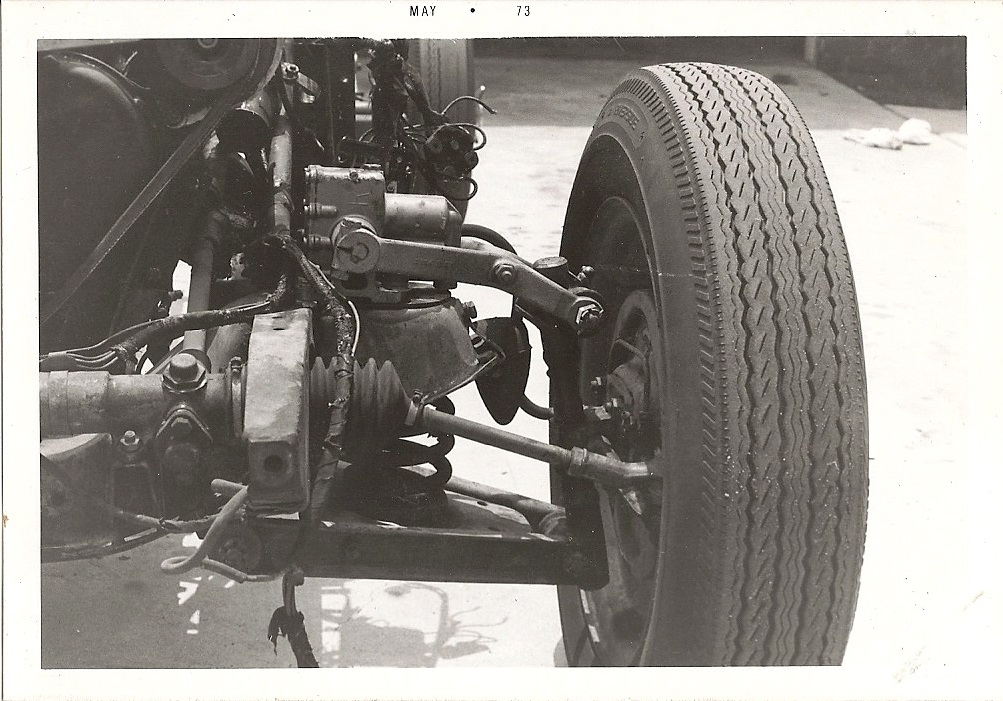

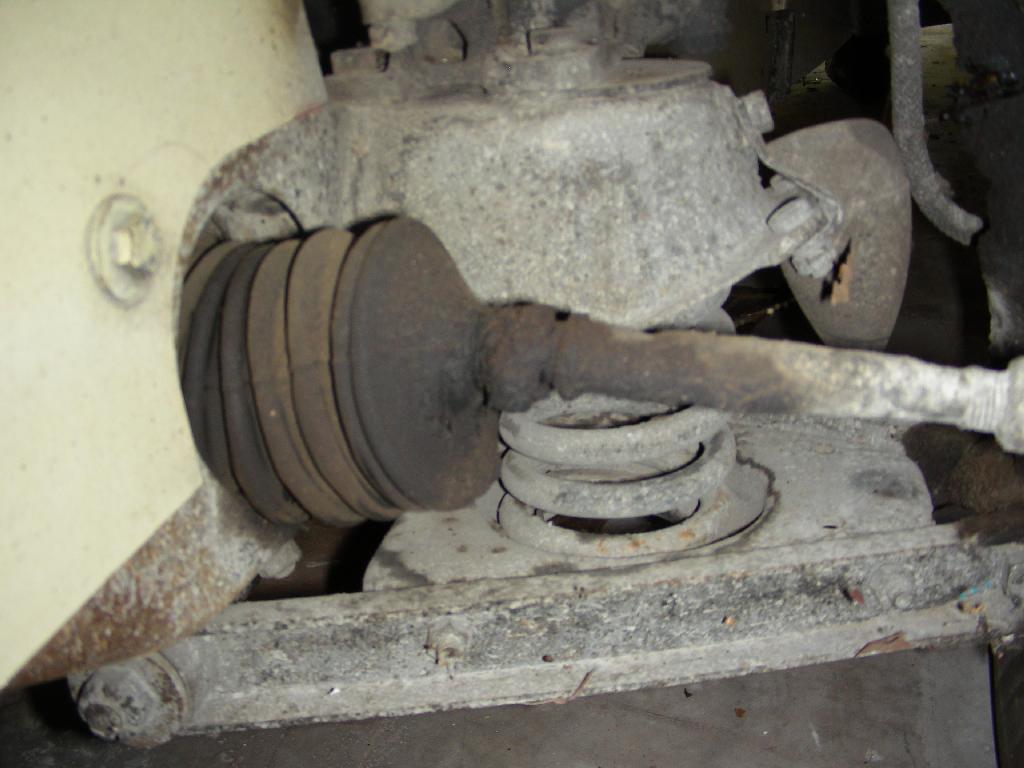

Front Suspension

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Wishbone to Link 2 RO R 7/16 W 1/2 BSF   Black   7/16 W   Black Castle nut with cotter pin camera
Wishbone to Wishbone Pivot 4     1/2 BSF   Black F 7/16 W F Black Large washer to hold rubber in place. Castle nut with cotter pin. camera
Wishbone Pivot To Frame 8 Wiley R 5/16 W 3/8 BSF 1 ⅛ Black   5/16 W S Black
Spring Pan To Wishbone Inside 4 RO R 1/4 W 5/16 BSF 1 Black   1/4 W S Black   camera
Spring Pan To Wishbone Outside 4 RO R 1/4 W 5/16 BSF 7/8 Black   1/4 W S Black   camera
Front Shock Armstrong 7 Wiley B 5/16 W 3/8 BSF 1 1/8 Black   Cap   Black   camera
Front Shock Armstrong (at Eng Stabilizer) 1 Wiley B 5/16 W 3/8 BSF 1 3/4 Black   Cap   Black Spacer required camera
Front Shock Girling (short) 4 Wiley B 5/16 W 3/8 BSF 1 5/8 Black   Cap   Black   camera
Front Shock Girling (long) 4 Wiley B 5/16 W 3/8 BSF 2 1/4 Black   Cap   Black   camera
Front Shock Arm Center 2 Wiley B 5/16 W 3/8 BSF 3 Black   5/16 W S Black   camera
Front Shock Arm To Link 2 RO R 7/16 W 1/2 BSF 4 Black   7/16 W F Black Castle nut with cotter pin camera
Steering Lever Nut 2     3/8 BSF       5/16 W F Black Philidas nut
Coil Spring Top Cup 4 Flat Slot 1/4 BSF 3/4" Black   3/16 W S Black Countersunk Machine Screw Slotted

Rear Suspension

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera

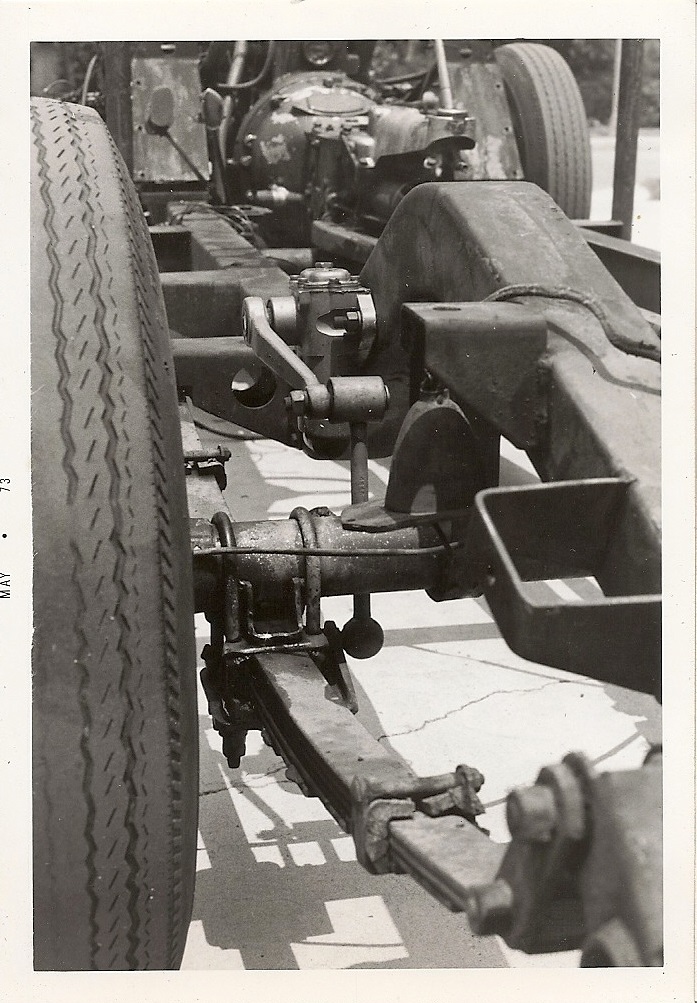

Rear Shocks Armstrong 4   5/16 W 3/8 BSF 3 ¾" Black   5/16 W S Black   camera
Rear Shocks Girling 4   5/16 W 3/8 BSF 4 ½" Black   5/16 W S Black
Rear Shock Link 2     1/2 BSF       7/16 W S Black   camera
Rear Spring Front Mount 2   3/8 W 7/16 BSF 3" Black   3/8 W S Black
Rear Spring Shackles 8     7/16 BSF       3/8 W S Black   camera
Spring to Axle U-Bolt Nuts 16     3/8 BSF       5/16 W S Black Double nuts camera
Leaf Clips 4   Carriage 1/4 BSF 2 ⅝" Black   3/16 W S Black Nuts on the inside camera
Differential Limiter Strap 4   5/16 W 3/8 BSF 3/4" Black S Cap
Rear Axle Nut (early) 2     3/4 BSF       11/16 W F Natural
Rear Axle Nut (later) 2     1 1/8 UNF       1 ⅛ F Natural

Front Chassis

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Front Rubber Stop (Top) 2 Newton 1/4 W 5/16 BFS ½" Black   1/4 W S Black   camera
Front Rubber Stop (Original) 4 Newton 1/4 W 5/16 BFS ⅝" Black   1/4 W S Black   camera
Front Rubber Stop (w Spacer) 4   1/4 W 5/16 BFS 1 ⅞" Black   1/4 W S Black

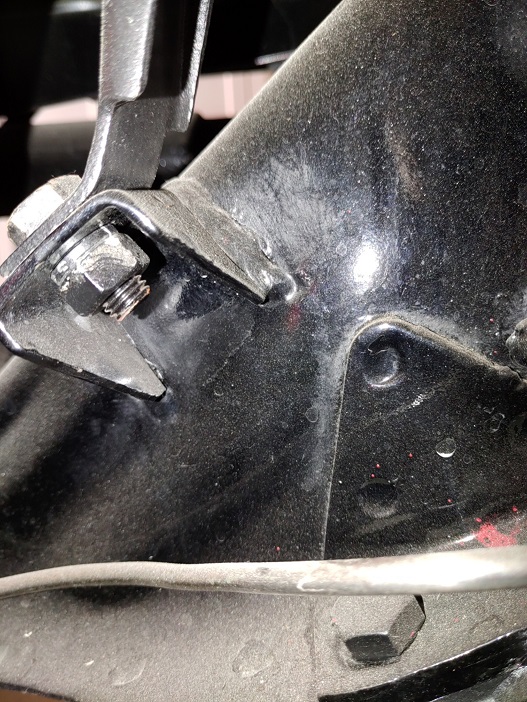

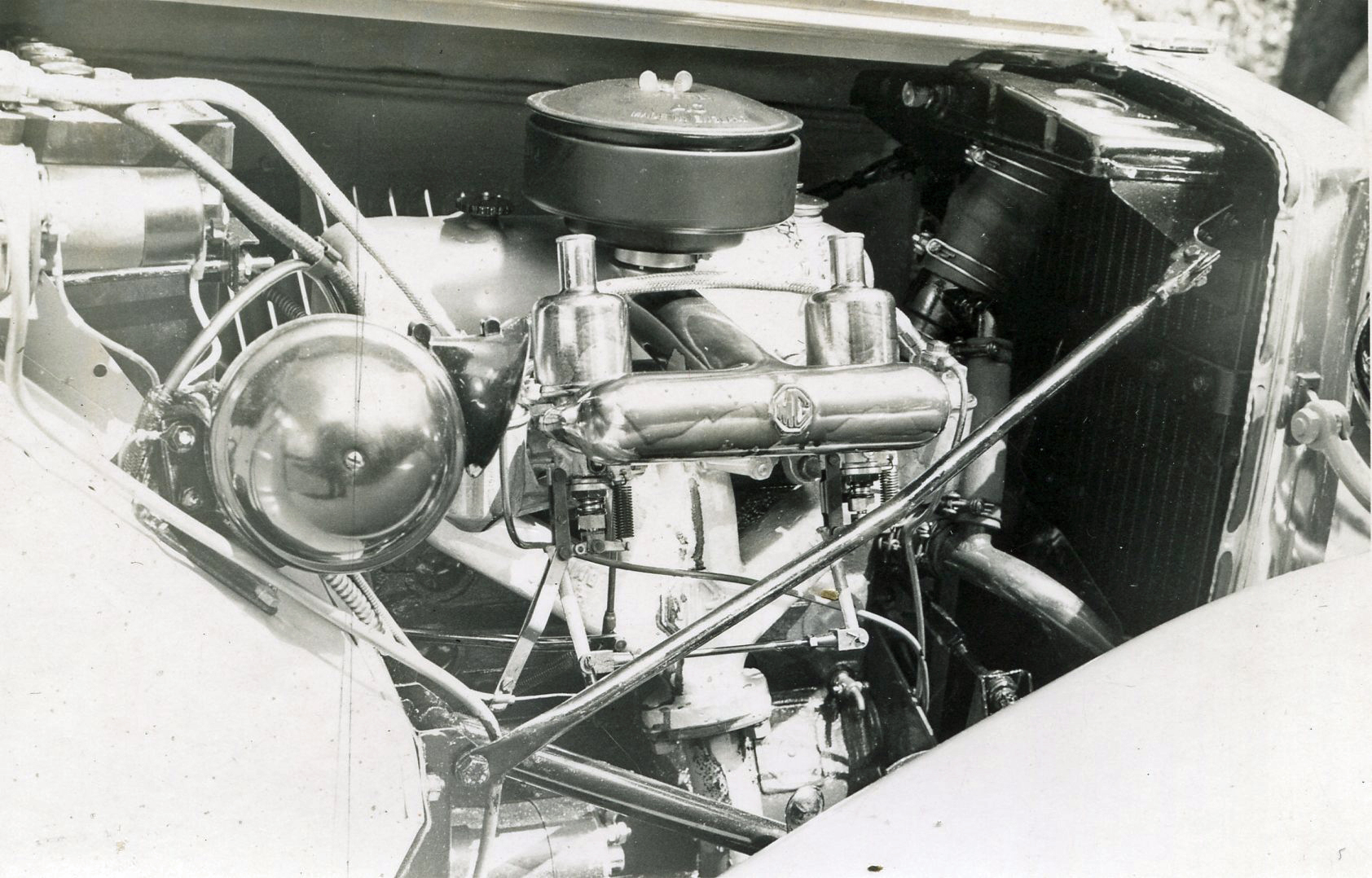

Engine Stabilizer Bracket on Frame 1 RO R 5/16 W 3/8 BSF ⅝" Black   Cap     See front shock absorbers for other fastner. camera
Stabilizer Bracket - 2nd 1   5/16 W 3/8 BSF ⅝" Black   5/16 W S Black   camera
Stay Tube To Frame 2 RO R 1/4 W 5/16 BSF 1 ⅛" Black   1/4 W S Black   camera
Stay Tube To Radiator 2 BEES 3/16 W 5/16 BSF 1" Black   3/16 W S Black   camera

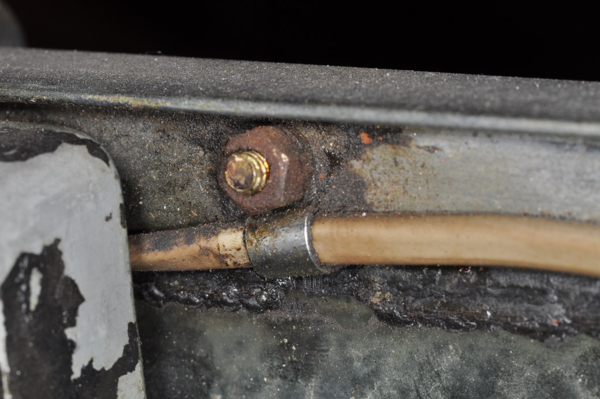

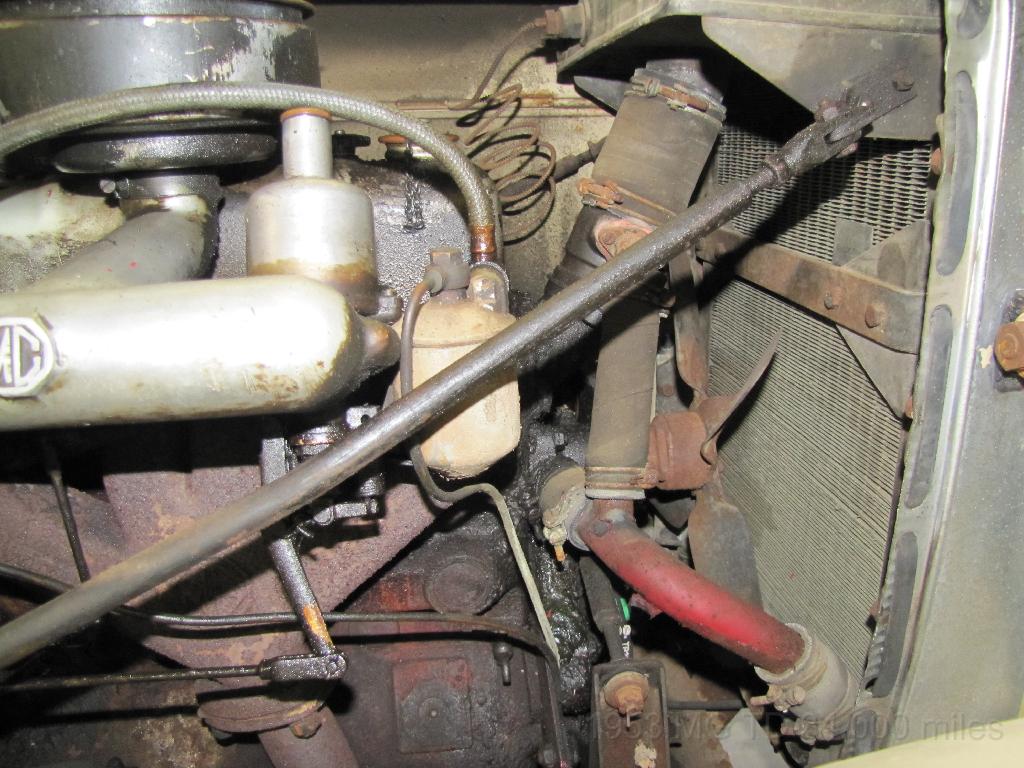

Stay Tube To Stiffener Bracket 2   3/8 W 7/16 BSF 2 ½" Black   3/8 W S Black Note the clip behind the stay tube that holds the fuel line on the right hand side of the car. camera

Mid Chassis

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Brake Box Cover Bolts 3 BEES 3/16 W 1/4 BSF ½" Black S Cap
Brake Box Cover Nut 1     1/4 BSF       3/16 W S Black One fastener a stud
Brake/Clutch Pedal 2   1/4 W 5/16 BSF 1" Black   1/4 W S Black   camera
Brake/Clutch Pedal Extenders 2   1/4 W 5/16 BSF 1" Black   1/4 W S Black   camera
Clutch Pedal Securing Bolt 1   1/4 W 5/16 BSF 1 1/2" Black   1/4 W S Black   camera
Clutch Cable Bolts 2   3/16 W 1/4" BSF ¾" Black     S   Used on early cars with clutch cable assembly.

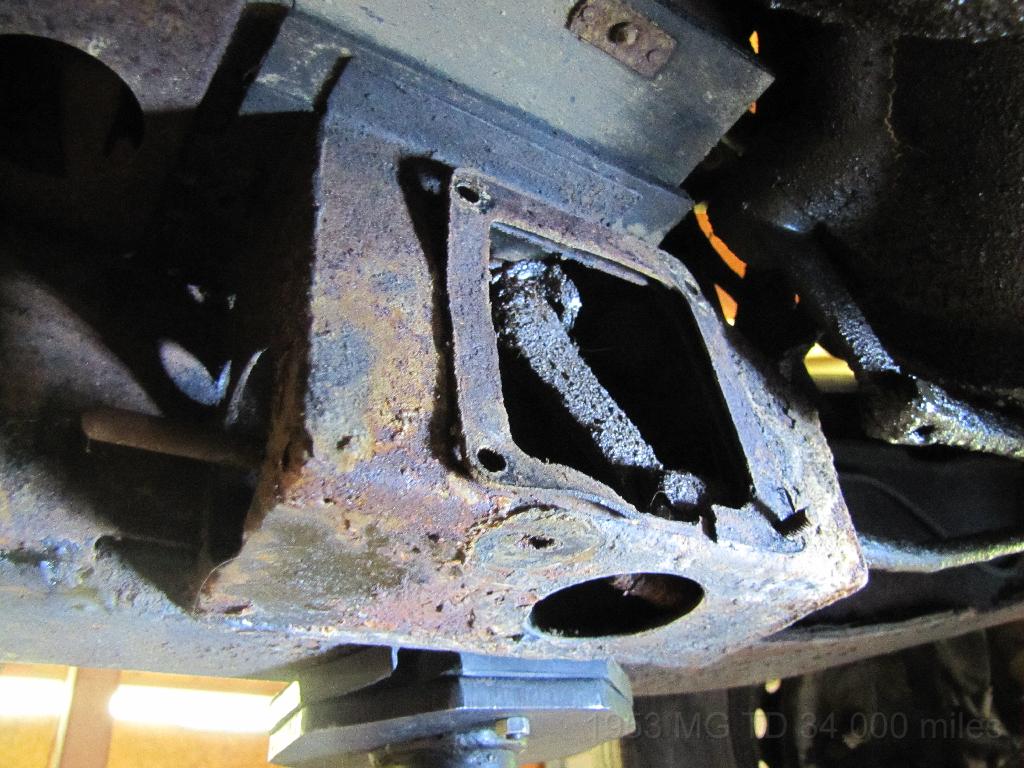

Pedal Box Cover 3   3/16 W 1/4 BSF ¾" Black S       There was a cork gasket for the cover camera
Pedal Box Cover 1             3/16 S Black 1 out of 4 fasteners was a nut camera
Master Cylinder 2 BEES 5/16 W 3/8 BSF 3" Black S Cap       camera
Clutch Rod 2     1/4 BSF   Black   3/16 W     One Nut Is Elongated And Dished camera

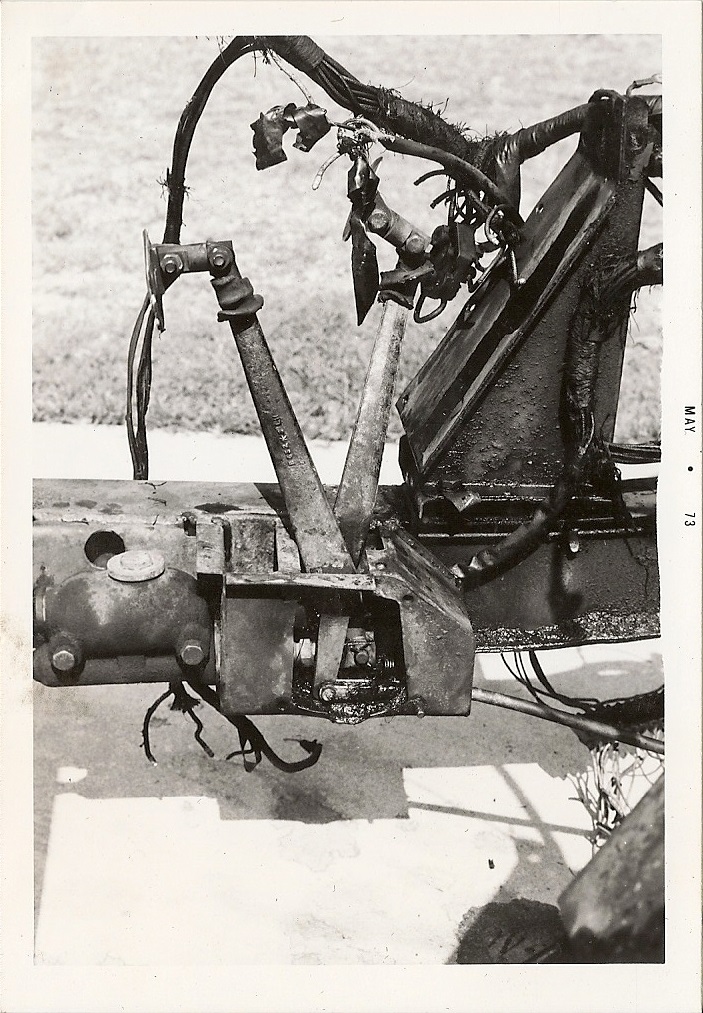

Stiffener Bracket (firewall to frame) 8 Newton R 5/16 W 1/4 BSF 9/16" Black   5/16 W S Black   camera

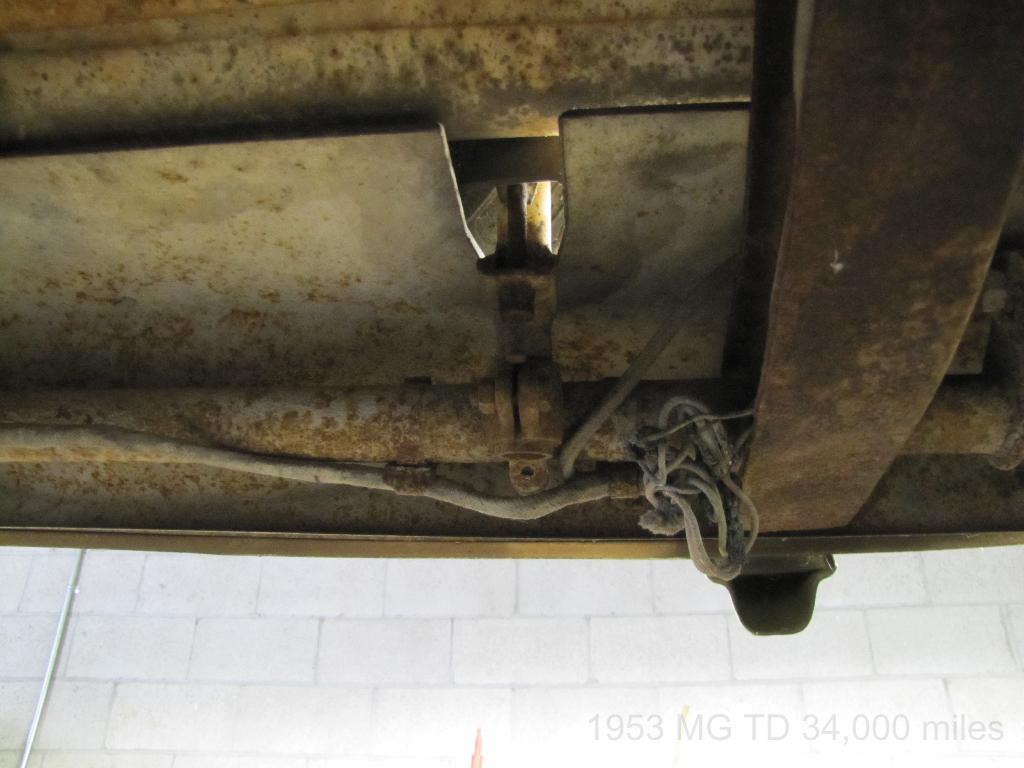

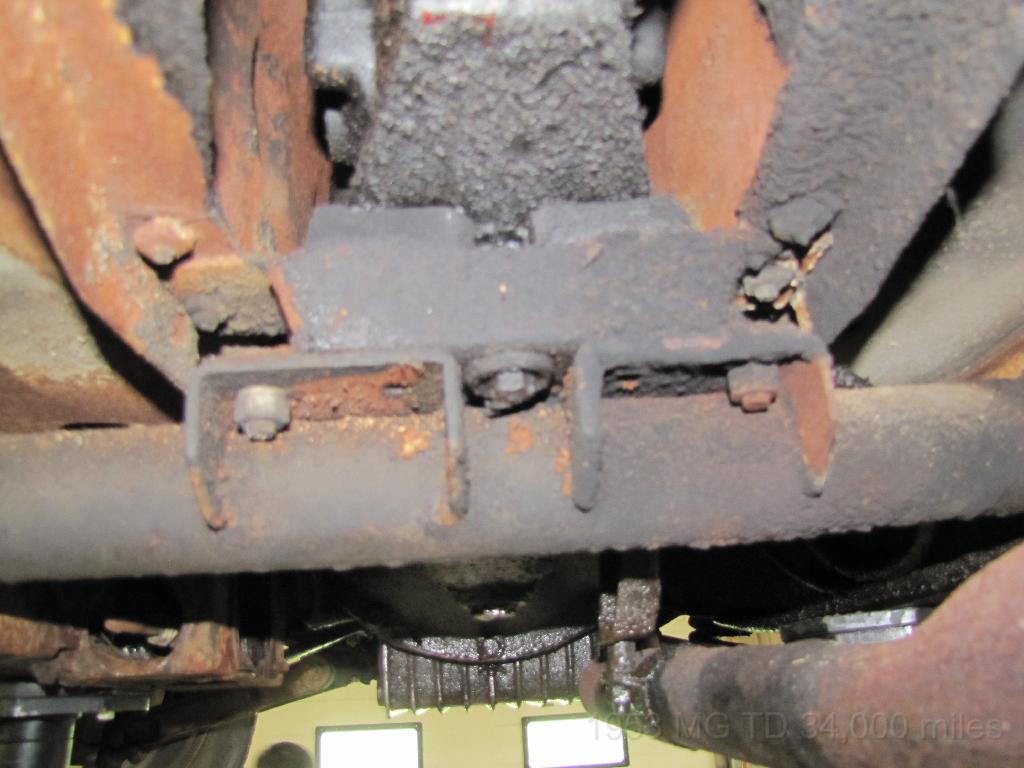

Support for Tailpipe 4 BEES 3/16 W 1/4 BSF ½" Black   3/16 W S Black Two supports, one mid and one rear camera
Tailpipe Support Clamps 2   3/16 W 1/4 BSF 2 ½" F Cad 3/6 W F,S Cad There is some evidence that there was probably asbestos packing around the tailpipe in the clamp camera

Steering

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Ball Joint Nut 2     3/8 BSF       5/16 W   Black Castle nut with cotter pin

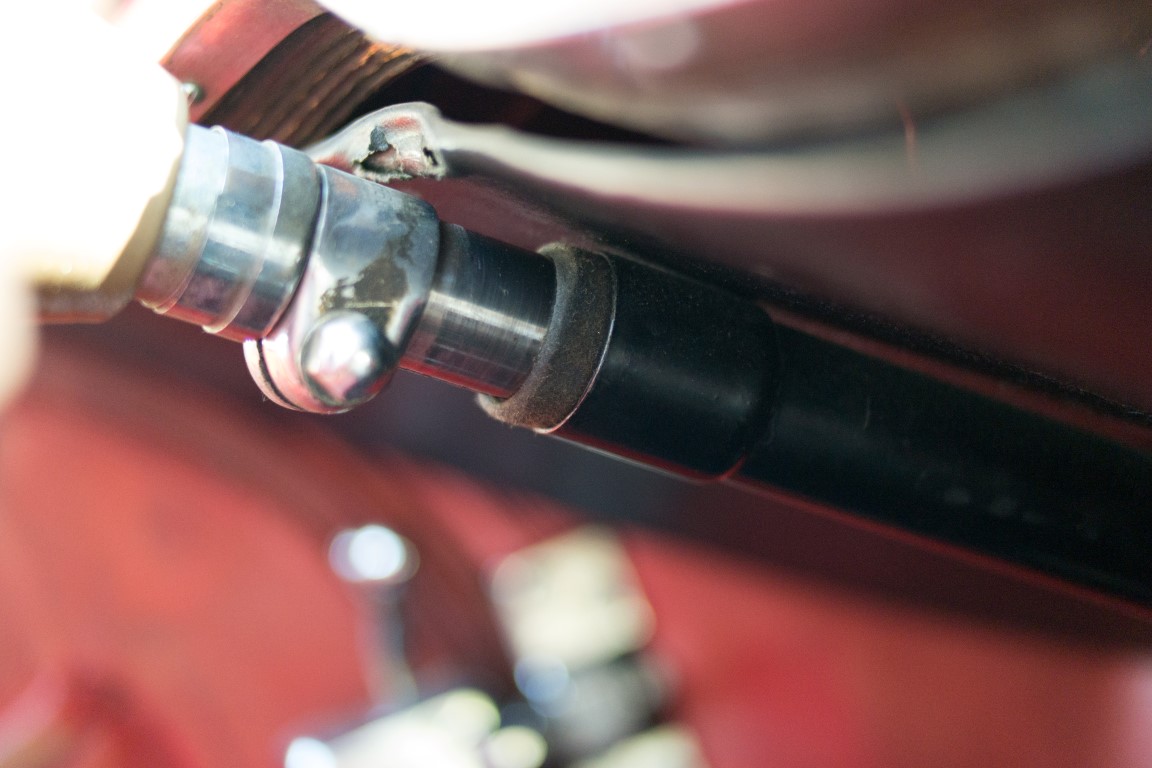

Steering Column Coupler 3   5/16 W 1/4 BSF     F 3/16 W F Black These are specialized castle nuts and bolts. See pictures and parts books. camera
Steering Column Excluder Plate 3   1/4 W 5/16 BSF ⅞" Cad F         camera
Steering Column Packing Ring 3 Round Slot 0 BA ⅜" Cad or Black   0 BA S Cad or Black Nuts to bottom camera
Steering Column Support Bracket 2   1/4 W 5/16 BSF ⅞" Cad   1/4 W S Cad
Steering Column Support Bracket Clamp Engine Compartment 1   1/4 W 5/16 BSF 2 ½" Cad F 1/4 W S Cad Long and short spacers. Nut to the outside. camera

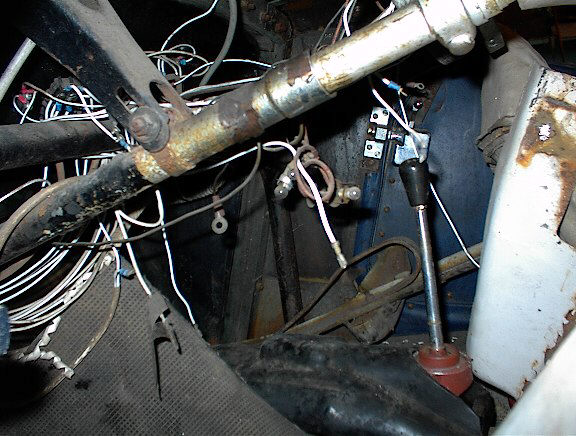

Steering Column Upper Adjusting Clamp 1   Carriage 5/16 BSF 1 ½" Chrome   1/4 W S Chrome Acorn Nut. camera
Steering Rack 4   1/4 W 5/16 BSF 1 ¼" Black   1/4 W S Black See photos for bolt orientation camera
Steering Rack Tail Bearing Cap 2   1/4 W 5/16 BSF ⅝" Black S         camera
Steering Wheel Nut 1                 Cad
Steering Column Support Clamp 1   1/4 W 5/16 BSF 2 ½" Cad F 1/4 W S Cad   camera

Radiator

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera

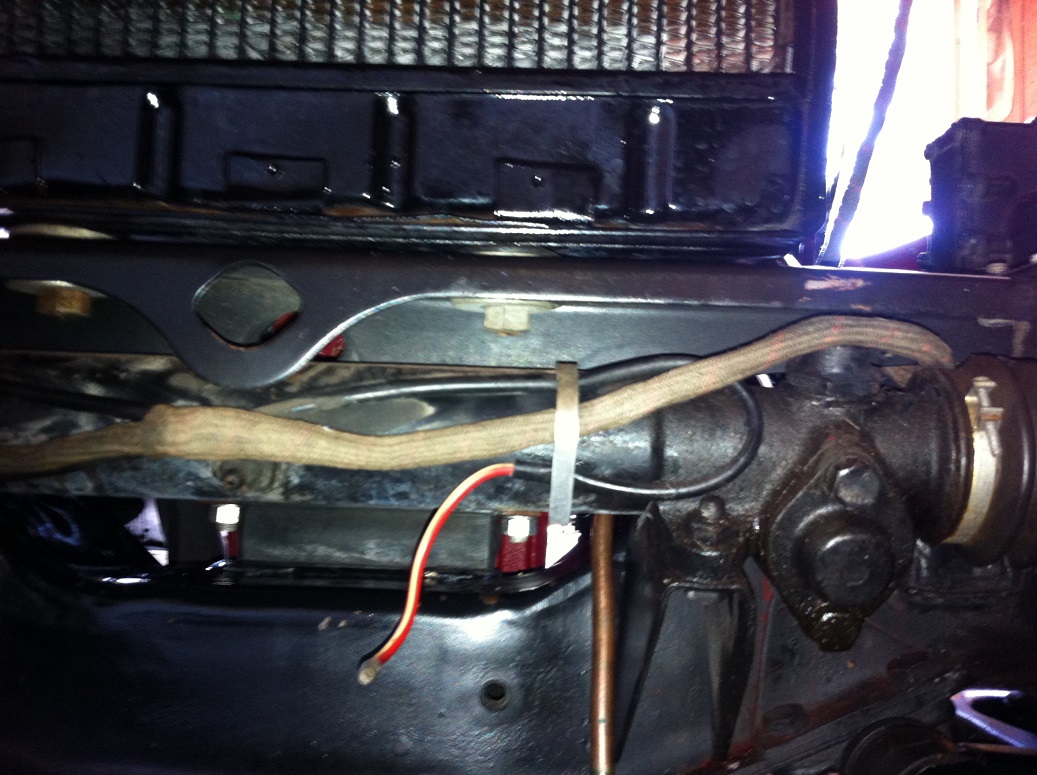

Radiator Support 4   1/4 W 5/16 BSF 3/4" Black   1/4 W S Black Nuts up camera
Bottom Mounting Nuts 2     3/8 BSF       5/16 W FW Black Two rubber pads with rings on each camera

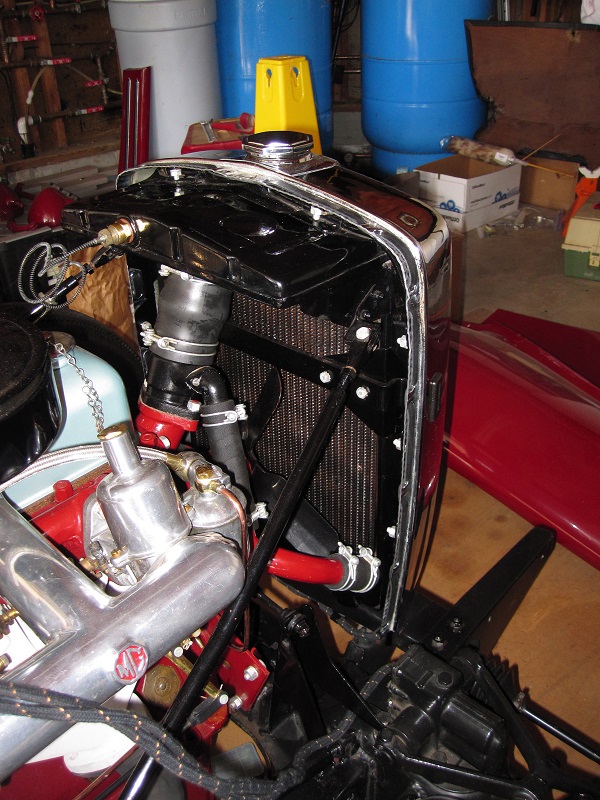

Shell Attachment 8 Flat Slot 1/4 BSF 1/2 Cad   3/16 W S Cad   camera

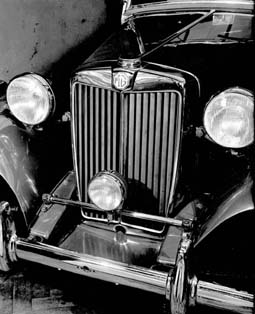

Grill Slats and MG Emblem 11     2 BA F       S Cad Slats are secured with soldered on T studs
Light arm to radiator cross bracket 4 BEES 3/16 W 1/4 BSF 3/4             camera

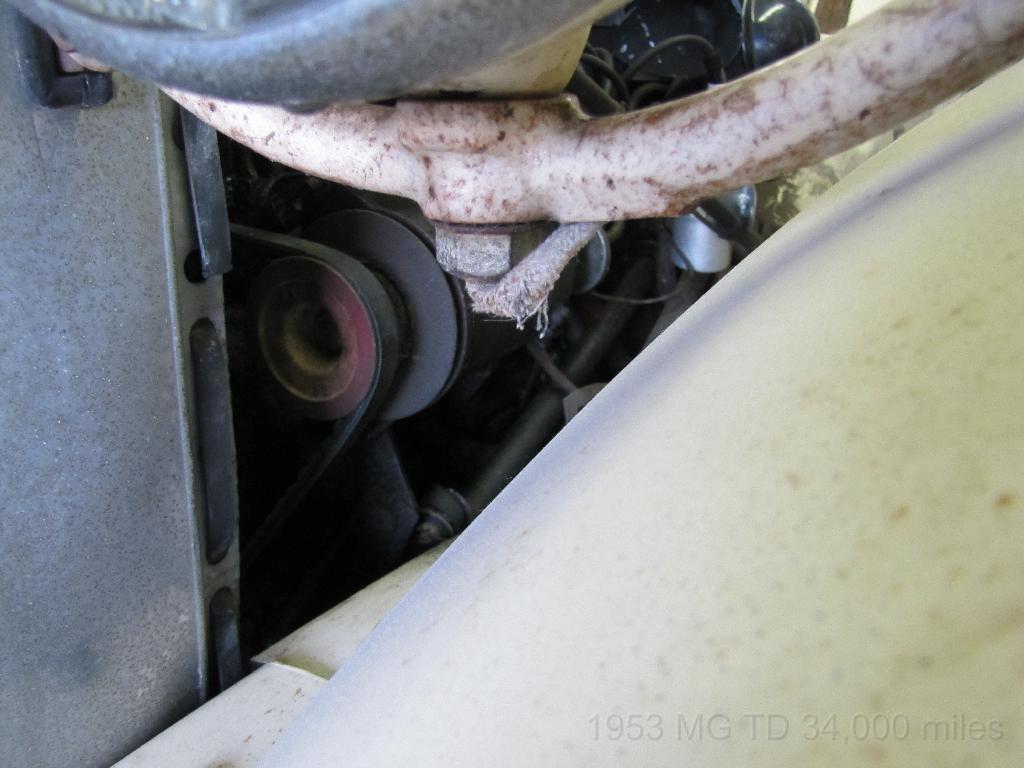

Light arm to bracket 2   7/16W 1/2 BSF 1 1/4 Body Color   7/16W S Cad Bolts are special with rounded head and smooth finish. camera
Stay Tube Radiator Bracket 4   2 BA 2 BA ⅝" Black   2 BA   Black   camera

Wheels and Brakes

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Axle Spindle Nut Front Early 2     5/8 BSF       9/16 W   Natural Castle nut with cotter pin
Axle Spindle Nut Front 2     3/4-16 NF       9/16 W   Natural From 4251. Castle nut with cotter pin
Backing Plate To Stub Axle Front 8   5/16 W 3/8 BSF 7/8” Black   5/16 W S Black
Brake Slave Cylinder 12     5/16 BSF       1/4 W S Black
Brake Hub to Drum (early 2 piece) 20   1/4W 5/16 BSF 1/2" Black         Slot head counter sunk machine screw

Powertrain

Engine

This list compiled with the help of Dave DuBois.

Note: The engine and transmission are French Standard Metric (NOT ISO Metric), with Whitworth heads:5 x 0.75 mm, 6 x 1.0 mm, 8 x 1.0 mm, 10 x 1.5 mm and 12 x 1.5 mm. reflecting their being built in the Hotchkiss Machine Gun Factory.

Note: See the pages on engine fasteners for more details.

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
CAMSHAFT THRUST PLATE 2   2BA
3/16W		 5 - 0.80MM
6 - 1mm		 5/8           ACTUALLY FOUND IN 2 ENGINES
FAN TO PULLEY 4   1/8 W 5 - 0.75 mm 1 9/16
UPPER REAR MAIN SEAL 3   3/16W 6 - 1mm ½
ROCKER COVER SIDE BOSSES 3   3/16W 6 - 1mm ½
OIL PICKUP TO BAFFLE 2   3/16W 6 - 1mm 5/8
BAFFLE TO SUMP 4   3/16W 6 - 1mm 5/8
OIL PICKUP COVER 1   3/16W 6 - 1mm 5/8           (LATE TD)
OIL PICKUP TO SUMP, 2   3/16W 6 - 1mm 1 ½           DRILLED FOR SAFETY WIRE
TIMING CHAIN TENSIONER 2   3/16W 6 - 1mm 1 ½           DRILLED FOR SAFETY WIRE
OIL PUMP TO BLOCK EARLY
LATE		 4
2		   3/16W 6 - 1mm 2 5/8
OIL PUMP TO BLOCK EARLY
LATE		 2
4		   3/16W 6 - 1mm 3 5/16           DRILLED FOR SAFETY WIRE
OIL PUMP TO BLOCK 2   3/16W 6 - 1mm 3 ½           DRILLED FOR SAFETY WIRE
OIL GALLERY PLUGS 5   3/16W 8 - 1mm ½
FRONT BEARING PLATE TO BLOCK 2   3/16W 8 - 1mm 5/8
TIMING CHAIN COVER TO FRONT BEARING PLATE 2   3/16W 8 - 1mm 5/8
CAM BEARING DOWEL BOLTS 2   3/16W 8 - 1mm 5/8           DRILLED FOR SAFETY WIRE
CLUTCH TO FLYWHEEL 6   1/4W 8 - 1mm 3/4
ENGINE MOUNT CRADLE TO FRONT BEARING PLATE 4   1/4W 8 - 1mm 3/4
GENERATOR ADJUSTING LINK 1   1/4W 8 - 1mm 3/4
GENERATOR MOUNTING BRACKET TO BLOCK 2   1/4W 8 - 1mm 3/4
CLUTCH CABLE BRACKET TO SUMP 2   1/4W 8 - 1mm 3/4           (EARLY TD)
OIL FILTER SUPPORT BRACKET 3   1/4W 8 - 1mm 3/4           (EARLY TD)
TIMING CHAIN COVER TO FRONT BEARER PLATE 2   1/4W 8 - 1mm 3/4           (2 BOLTS FROM REAR OF BEARER PLATE)
WATER OUTLET ELBOW TO HEAD 4   1/4W 8 - 1mm 7/8
AIR CLEANER ELBOW TO CARBURETOR 4   1/4W 8 - 1mm 7/8
WATER PUMP 1   1/4W 8 - 1mm 7/8           (SHORT BOLT)
SUMP TO BLOCK 10   3/16W 8 - 1mm 7/8           (CENTER BOLTS)
SUMP TO TIMING CHAIN COVER 2   3/16W 8 - 1mm 7/8           (DEEP HEAD)
WATER PUMP (LONG BOLT) 1   1/4W 8 - 1mm 1

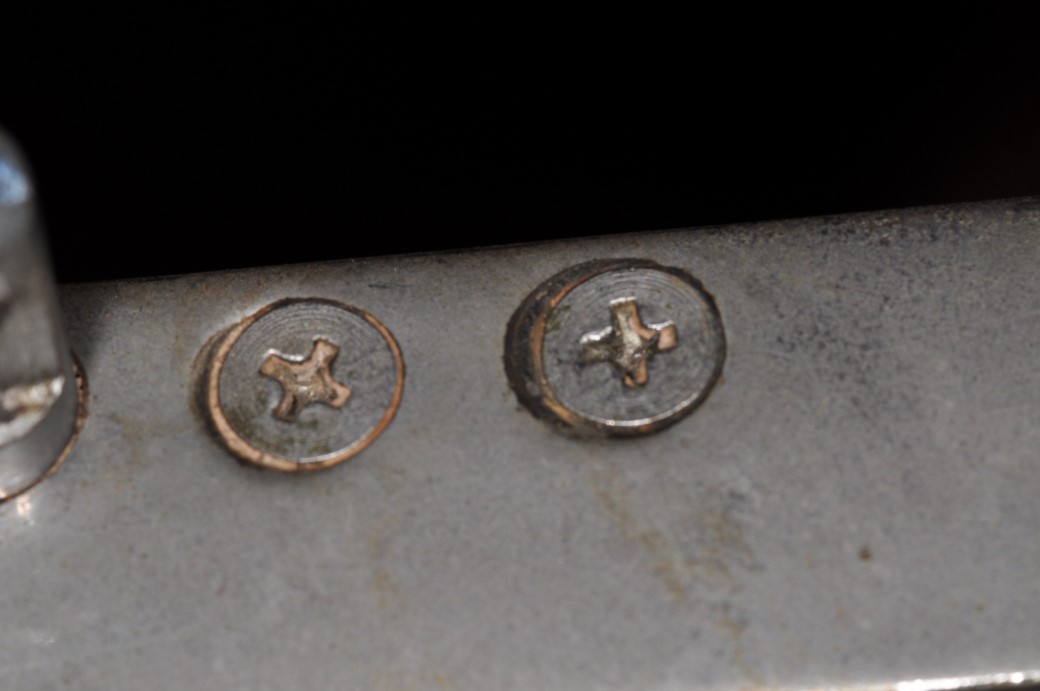

REAR PLATE TO HEAD 4   Phillips 8 - 1mm 1           (* SCREW HEAD)
BELL HOUSING TO ENGINE 10   1/4W 8 - 1mm 1
BOTTOM GENERATOR MOUNTING 2   1/4W 8 - 1mm 1
SUMP TO BLOCK 2   3/16W 8 - 1mm 1 1/8           (DEEP HEAD SLOTTED - REAR 2 BOLTS)
GUDGEON PIN CLAMP BOLTS 4   13mm 8 - 1mm 1 1/4           (ORIGINAL BOLTS HAD 1/4W HEADS)
TIMING CHAIN COVER TO ENGINE 3   1/4W 8 - 1mm 1 7/8
TIMING CHAIN COVER TO ENGINE (2 LOWER BOLTS) 2   1/4W 8 - 1mm 2
ROD BIG END BOLTS 8   13mm
1/4W		 8 - 1mm 2 1/4           (WITH SELF LOCKING NUTS) (DRILLED FOR COTTER PIN)
ROCKER TOWER 4   1/4W 8 - 1mm 3 5/16
CARBURETOR TO MANIFOLD 4   5/16W 10 - 1.5mm 3/4
FLYWHEEL TO CRANKSHAFT 4   3/8W 10 - 1.5mm 7/8           DRILLED FOR SAFETY WIRE
STARTER TO BLOCK 2   5/16W 10 - 1.5mm 1
ROCKER TOWER 4   5/16W 10 - 1.5mm 3 ½
CRANKSHAFT PULLEY BOLT/STARTING DOG 1   5/8W 12 - 1.5mm 7/8           (CAN USE 1 1/8 SAE WRENCH)
TIMING GEAR TO CAMSHAFT 1   3/8W
19mm		 12 - 1.5mm 1           (SOME BOLTS COME WITH THIS LARGER HEAD)
ENGINE BREATHER PIPE CLAMP BOLT 1   3/16W 1/4 - 26 BSF 1 1/4           (SOME OF THESE MAY BE 6 - 1mm)
DISTRIBUTOR CLAMP PINCH BOLT 1   1/4W 1/4 - 20 W 1 3/8           (EARLY TD)
CLUTCH RETURN SPRING BRACKET TO SUMP 1   1/4W 5/16 -22 BSF 3/4
AIR CLEANER TO CARBURETOR 4   1/4W 5/16 -22 BSF 3/4           (TD MKII)
TOP GENERATOR MOUNTING BOLT 1   1/4W 5/16 - 18 W 5/8           (5/16 - 18 SAE BOLT FITS)
OIL FILTER HOUSING 1   5/16W 3/8 - 20 BSF 4 ½
Exhaust Manifold Nuts 3                   These are special nuts in unfinished brass camera

Rear Differential and Driveshaft

Note: Late TDs and TFs rear axles have Unified Threads instead of BSF, these are the same as ANF (American National Fine or SAE threads).

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Differential To Backing Plate 8   5/16 W 3/8 BSF 1 1/4" Black   5/16 W   Black Philidas nuts, chamfered heads

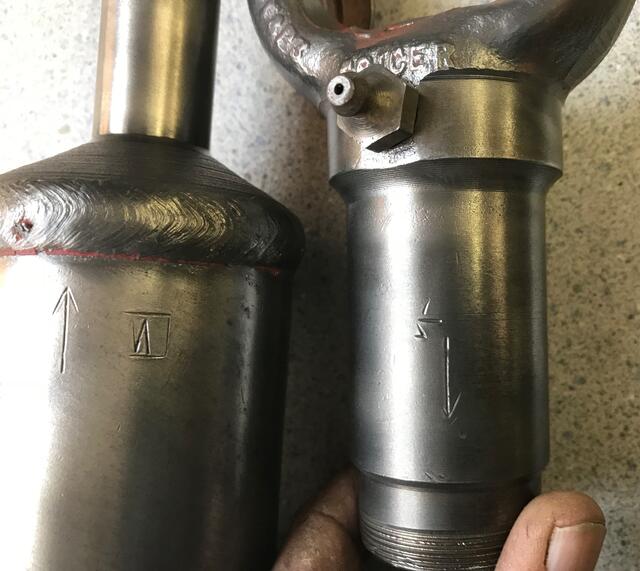

Driveshaft (Front and Rear) 8 Newton R 1/4 W 5/16 BSF 1 1/4" Black   1/4 W Black   Philidas Nut

Transmission

Name Qty Logo Wrench Thread Length Finish Washer Nut Washer Finish Comment camera
Transmission Mount 2 GKN D 5/16 W 3/8 BSF ¾" Black   5/16 W S Black   camera
Exhaust Pipe Bracket Front 2   3/16 W 1/4 BSF ½" Black S       Secured to transmission
Exhaust Pipe Bracket Clamp 1   1/4 W 5/16 BSF 1 1/2" Cad   1/4 W S Cad Spacer between clamp and bracket. Bolt from top. camera

Home | History | Details | Myths and FAQs | Literature | Entertainment | Gallery | Links | Map

© 1999 - 2023 by Christopher C. Couper Page last modified: 2023/09/05
