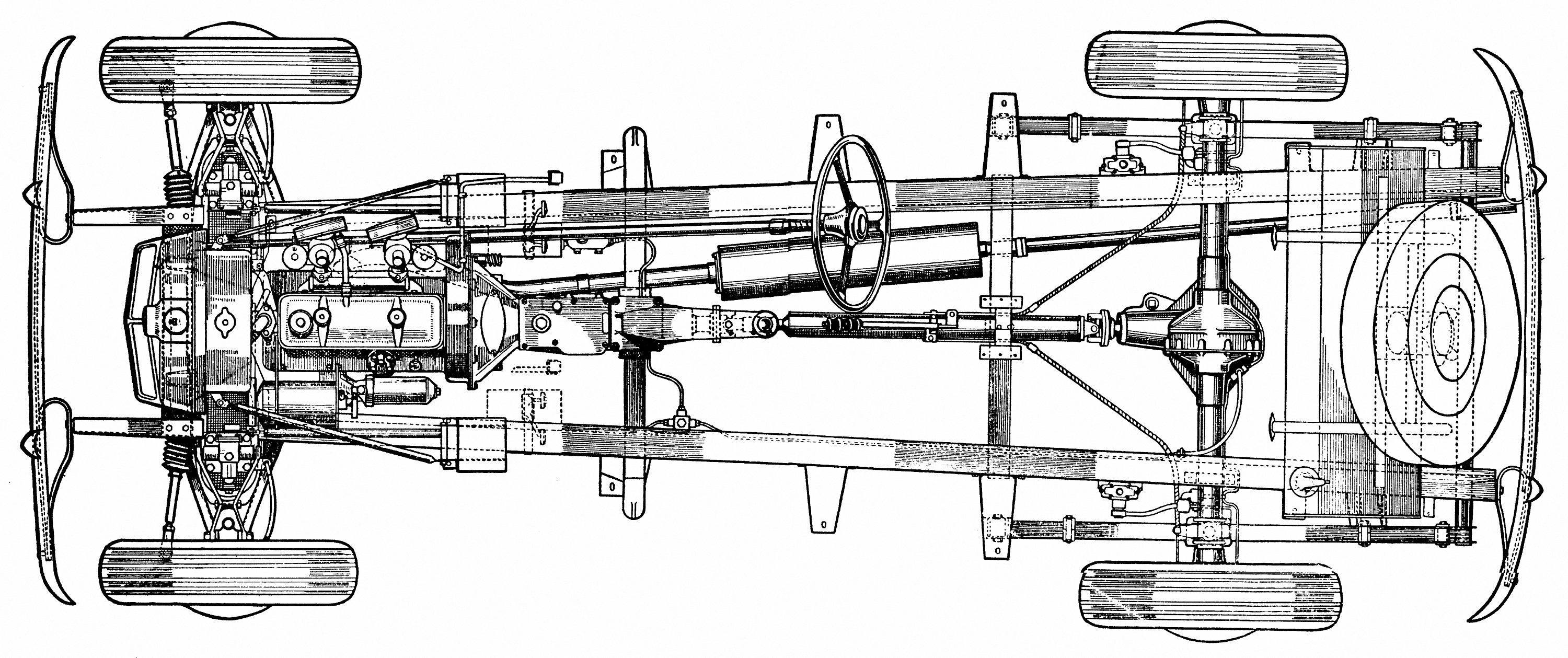

MGTF Chassis Diagram

Edited by Lonnie Cook from the TF Lube Chart

Frame Clip Detail

THE FRAME AND CLIP DETAIL (BY PAUL PROBST) SHOW A METAL CLIP ON TOP OF THE LT. FRAME MEMBER TO HOLD THE LOOM. ANOTHER CLIP ATCH. TO THE TUBE. BLACK PLASTIC COVER OVER THE LOOM TO PREVENT WEAR FROM STEERING SHAFT. LOOM ATTACHED TO STEERING RACK.
