Exhaust Manifold Clearance

Click on the images for a larger version

Greg Williams

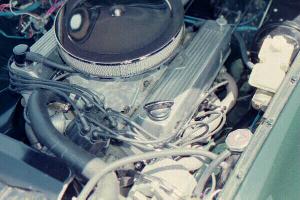

This picture shows the general lack of room for exhaust and steering.

Erich Hovley

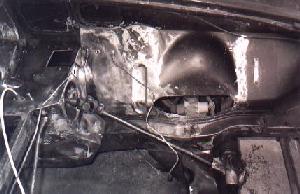

View of the inner fender showing where a portion of the fender has been cut away to make room for the exhaust manifold. A patch panel needs to be fabricated to cover the hole.

John Bourke

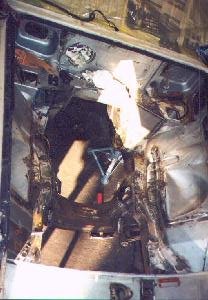

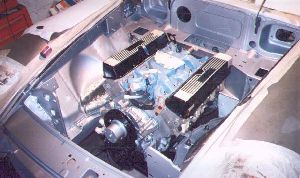

Shows the engine bay during modification - the new engine mounts are in position and the inner wing mods are complete

Index

Fitting a V8 engine into an MGB
