We often get asked questions on technical matters relating to basic specification data on the MG Y Type, so it seems sensible to make available a printed sheet with all the usual data on it.
Source: Maintenance Manual and Instruction Book for the MG One and a Quarter Litre (Series 'YB') - available as a reprint in full from the MG Octagon Car Club - see Links page. While every effort has been made to carefully copy and reproduce the data shown accurately, your attention is drawn to our DISCLAIMER.
NB This data is correct for the MG YB only - not the MG YA or YT! Download this sheet as a PDF file here.
MG YB only
ENGINE: |
Type: XPAG/SC2. Four cylinders, water cooled, with overhead valves, push-rod operated, with detachable head. |
Bore |
66.5 mm (2.62 in.). |
Stroke |
90 mm (3.54 in.). |
Capacity |
1250 c.c. - (76.28 cu. in.). |
Bore/stroke ratio |
1.353 to 1 |
Compression ratio |
7.2/7.4. |
Depth of head |
45.5 c.c. |
Cylinder head gasket |
0.045 in (1.14mm.) thick copper and asbestos |
RAC Rating |
10.97 hp. |
CONNECTING ROD: |
Type |
Steel |
Length |
178 mm with loose steel shell white-metal bearings. |
Bore at big-end |
48.658 mm — 48.671 mm |
Bore at small end |
18 mm. +.03 mm —.01 mm |
Width at big-end |
27.865 mm — 27.890 mm |
Width at small end |
19 mm |
Gudgeon pin |
Type: Clamp. Dia.: 18 mm. - .015mm. Length 58.5mm. - .010mm. |
CRANKSHAFT: |
Diameter |
Width |
Radius |
Main journal (front) |
52 mm — .035 mm. — .015 mm. |
38 mm. |
2.5 mm.±.15 mm |
Intermediate journal |
52 mm — .035 mm. — .015 mm. |
38 mm — .02 mm. — .01 mm. |
2.5 mm.±.15 mm |
Main journal (rear) |
52 mm — .035 mm. — .015 mm. |
40 mm. |
2.5 mm.±.15 mm |
Crankpin journal |
45 mm — .035 mm. — .015 mm. |
28 mm — .015 mm. — .010 mm. |
2.5 mm.±.15 mm |
Minimum regrind |
43.75 mm. |
MAIN BEARINGS: |
|
|
|
Bore size of crankcase for main bearings |
|
56.34 mm. ± .02mm. |
|
Diameter |
Width |
|
Main bearing (front) |
52.020 mm 52.005 mm |
35.12 mm. 34.88 mm. |
|
Main bearing (inter.) |
52.020 mm 52.005 mm |
37.955 mm. 37.925 mm. |
Radius 2.75 mm. U/cut .25 mm. |
Main bearing (rear) |
52.020 mm 52.005 mm |
35.12 mm. 34.88 mm. |
|
Main bearing clearance on crankshaft diameter |
.020 mm .055 mm. |
Main bearing (inter.) end-float on crankshaft |
.035 mm. .095 mm. |
BIG-END BEARING: |
Diameter |
Width |
Thickness |
|
45 mm. |
22.46 mm. 22.21 mm. |
1.825 mm. 1.831 mm |
Big-end clearance on crankshaft diameter |
|
.011 mm. .056 mm. |
CRANKSHAFT REGRIND |
Bearing and crankshaft dia. undersize |
Reference |
Crankshaft main journal std. and regrind sizes |
Crankpin journal std. and regrind sizes |
Main bearings std. and regrind sizes |
Standard |
Standard |
52 mm. |
45 mm. |
52.020 mm 52.005 mm |
.5 mm (.020 in.) |
R.2 |
51.5 mm. |
44.5 mm. |
51.520 mm. 51.505 mm. |
1.00 mm. (.040 in.) |
R.4 |
51.00 mm. |
44.00 mm. |
51.020 mm. 51.005 mm. |
CAMSHAFT DRIVING CHAIN: |
Renold chain number 114036 (duplex) Type: Roller 3⁄8 in. pitch. 60 pitches endless. |
CAMSHAFT BEARINGS: |
|
Front Bearing: White metal. Outside diameter 43.61 mm. Press fit in cylinder block. Inside diameter to be reamed in position in cylinder block to 41 mm.+.05 mm/+.08 mm. |
Centre and rear bearings: Zinc alloy |
Outside diameter 43.5 mm.+.00 mm. — .02 mm. Inside diameter 23 mm. +.015 mm. — .005 mm. |
Bore of cylinder block for bearings |
43.5 mm. +.02 mm. — .01 mm. |
CAMSHAFT: |
|
End-float: .005 in. — .013 in. (.125 mm. — .325 mm.). |
Diameter of shaft for bearing: |
Front: 41 mm. +.01 mm. — .02 mm. Centre and rear: 23 mm. +.05 mm. — .08 mm. |
Cam lift |
5.334 mm. = 8 mm. at valve. |
Cam Timing |
5 - 45 - 45 - 5 |
VALVES AND GUIDES |
|
Valve port throat diameter |
Inlet: 30 mm. Exhaust: 26 mm. |
Valve head diameter |
Inlet: 33 mm. Exhaust: 31 mm. |
Valve stem diameter |
8 mm.±.01 mm. |
Valve seat angle |
30˚. |
Valve guides |
Bore: 8.06/8.08 mm. Outside diameter: 14 mm. +.02 mm. +.04 mm. |
Valve guide length |
Inlet: 59 mm. Exhaust: 54 mm. |
Valve spring pressure |
Inner |
Outer |
Shut |
31 lb. (14.1 kg) |
62 lb (28.1 kg) |
Open |
43 lb (19.5 kg) |
82 lb (37.2 kg) |
Valve lift |
8.0 mm. |
|
Valve timing
|
|
Commencing Engine No. XPAG/SC/16831 |
Exhaust opens |
45˚ B.B.D.C. |
|
Exhaust shuts |
5˚ A.T.D.C. |
|
Inlet opens |
5˚ B.T.D.C. |
|
Inlet shuts |
45˚ A.B.D.C. |
|
Valve clearance (early models) |
.019 in. (.48 mm.). (engine hot) |
Valve clearance (commencing Engine No. XPAG/SC2/18097) |
.012 in. (.30 mm.). (engine hot) |
LUBRICATION: |
|
Oil pump speed |
Half engine speed, gear type. |
Oil pressure |
70 lb./sq. in. to 40 lb./sq. in. (5.0 kg./cm.2 to 2.8 kg./cm.2). |
Oil pump by-pass |
60 lb./sq. in. (4.2 kg./cm.2). |
Oil sump capacity |
9 Pints (5.1 litres). |
Oil sump capacity (commencing Engine No. XPAG/SC2/17383) |
10.5 Pints (6.0 litres). |
Oil filter |
Full-flow type. |
IGNITION: |
|
Ignition timing |
T.D.C. |
Order of firing |
1, 3, 4, 2. |
Sparking plugs |
Champion L.10.S. 14 mm. (Champion NAB on later models) |
Sparking plug gap |
.020 in. to .022 in. (.51 mm. to .56 mm.). |
Contact Breaker Gap |
.014 - .016 in. (.36 mm. - .40 mm.) |
PISTONS: |
|
|
Type: Aluminium alloy, tin coated, controlled expansion. |
|
|
Width |
Diameter |
Compression ring groove |
.0886 in. (2.250 mm.) .0087 in. (2.253 mm.) |
2.381 in. (60.477 mm.). 2.385 in. (60.579 mm.). |
Oil control ring groove |
.1576 in. (4.003 mm.) .1577 in. (4.006 mm.) |
2.389 in. (60.680 mm.). 2.393 in. (60.782 mm.). |
Side clearance of rings in grooves |
.001 in. (.025 mm.). .002 in. (.050 mm.). |
|
|
Width |
Radial thickness |
2 off. Compression rings |
.0885 in. (2.248 mm) |
.109 in. (2.768 mm.). .101 in (2.565 mm.). |
1 off Slotted oil control ring (8 slot) |
.1575 in. ( 4.0 mm.) |
.105 in. (2.667 mm.). .097 in. (2.464 mm.). |
Piston ring gap |
.006 in. to .010 in. (.15 mm. to .25 mm.). |
|
Gudgeon pin bore |
18 mm. — .0001 in (.0025 mm.). — .0003 in. (.0076 mm.). |
PISTON AND CYLINDER BORE SIZES (XPAG Engines)
REPLACEMENT CYLINDER BLOCKS (Normal Standard and Oversize Bores)
Cylinder bore oversize in thousandths of an inch |
Cylinder bore size in mm. |
Cylinder bore size in inches |
Piston size reference |
Standard |
66.50 |
2.6181 |
A...OK |
19.7 |
67.00 |
2.6378 |
C...OK |
39.4 |
67.5 |
2.6575 |
E...OK |
Note: After oversize "E" the cylinder bores are relined to standard. Bore sizes will be found stamped on the top front left-hand side of the cylinder block.
STANDARD AND OVERSIZE RANGES When fitting new pistons selective assemble is necessary, and to facilitate this the pistons are marked on their crowns with an indication of their bore size. Note particularly that the pistons markings indicate the correct size cylinder bore for which they are suitable, the correct working clearance having been allowed in the grading operation. The piston size should therefore correspond with the marking on top of the face of the cylinder block on the right-hand side, which indicates the actual size of each cylinder bore. The bores and pistons are graded in four sizes: — Bores of normal size ±.000 in. to +.00049 in.—marked "STD" Bores of normal size ±.0005 in. to +.00099 in.—marked +.0005. Bores of normal size ±.0010 in. to +.00149 in.—marked +.0010. Bores of normal size ±.0015 in. to +.00199 in.—marked +.0015.
The piston clearance is .0021 in. minimum to .0029 in. maximum (.056 mm. to .073 mm), measured at the top of the skirt, immediately below the oil control ring, and across the thrust faces, i.e. at 90˚ to the gudeon pin axis. This is important as the piston skirt is tapered and oval, and the extreme edge of the skirt and clearance can only be measured in this one position. There is .005 in. (.127 mm.) ovality at the extreme bottom edge of the skirt and the clearance measures at 90˚ to the gudeon pin centre line at the bottom of the skirt should be .00125 in. (.0317 mm.) less than that at the top. To facilitate correct measurement of the bores and pistons, the actual sizes of the various gradings are given at the top of page v (sic see below). The markings on the top face of the
cylinder block will indicate these sizes clearly. Oversize bores on reconditioned engines supplied under the M.G. reconditioned engine scheme are limited to two oversizes: — +.020 in. graded in 4 sizes as the standard settings +.040 in. graded in 4 sizes as the standard settings The actual sizes of these pistons and bores are provided in the tables on the following page (sic see below).
Note : Badly worn cylinder bores which will not clean up at the maximum oversize bore must be relined to "standard" size and limits.
STANDARD PISTON SIZES Production engines with bores .002 in. oversize or over are made into +.010 in. bores and graded in the same steps are the standard bore engines
Piston size (across thrust faces below oil rings) |
Piston marking |
Suitable fore bore size
|
in. |
mm. |
in. |
mm. |
2.6156 2.6160 |
(66.436) (66.446) |
To suit "STD" bore |
2.6181 2.6185 |
(66.500) (66.510) |
2.6161 2.6165 |
(66.449) (66.459) |
To suit +.0005 bore |
2.6186 2.6190 |
(66.513) (66.523) |
2.6166 2.6170 |
(66.462) (66.472) |
To suit +0010 bore |
2.6191 2.6195 |
(66.525) (66.535) |
2.6171 2.6175 |
(66.474) (66.484) |
To suit +0015 bore |
2.6196 2.6200 |
(66.538) (66.548) |
OVERSIZE PISTON SIZES (+.020 in. RANGE)
Piston size (across thrust faces below oil rings) |
Piston marking |
Suitable fore bore size
|
in. |
mm. |
in. |
mm. |
2.6356 2.6360 |
(66.944) (66.954) |
To suit +0200 bore |
2.6381 2.6385 |
(67.008) (67.018) |
2.6361 2.6365 |
(66.957) (66.967) |
To suit +.0205 bore |
2.6386 2.6390 |
(67.021) (67.031) |
2.6366 2.6370 |
(66.970) (66.980) |
To suit +0210 bore |
2.6391 2.6395 |
(67.033) (67.043) |
2.6371 2.6375 |
(66.982) (66.992) |
To suit +0215 bore |
2.6396 2.6400 |
(67.046) (67.056) |
OVERSIZE PISTON SIZES (+.040 in. RANGE)
Piston size (across thrust faces below oil rings) |
Piston marking |
Suitable fore bore size
|
in. |
mm. |
in. |
mm. |
2.6556 2.6560 |
(67.453) (67.463) |
To suit +0400 bore |
2.6581 2.6585 |
(67.516) (67.526) |
2.6561 2.6565 |
(67.465) (67.475) |
To suit +.0405 bore |
2.6586 2.6590 |
(67.529) (67.539) |
2.6566 2.6570 |
(67.478) (67.488) |
To suit +0410 bore |
2.6591 2.6595 |
(67.541) (67.551) |
2.6571 2.6575 |
(67.490) (67.500) |
To suit +0415 bore |
2.6596 2.6600 |
(67.554) (67.564) |
PROPELLER SHAFT: |
|
Type |
Hardy Spicer needle bearing (balanced). |
Length |
Face to face 45 5/16 in. (1.151 m.). |
Tubular shaft |
2½ in. diameter (6.35 cm.). |
Joint size |
KR—1111. GB 22/1118—GB 65. |
CLUTCH: |
|
Type |
Single dry plate—Borg & Beck |
Diameter |
8 in. (20.3 cm.). |
Facings |
RYZ |
Thrust springs |
150 to 160 lb./in. (26.8 to 28.6 kg./cm.). Colour "Brown" |
Clutch plate damper springs |
6 off (Black/Green) |
GEARBOX: |
|
|
|
Four speed, synchromesh second, third, and fourth gears |
|
Oil capacity |
|
|
1¼ pints (0.7 litre) |
Gearbox ratios |
Overall ratios |
|
|
Top |
1 to 1 |
5.143 to 1 |
|
Third |
1.385 to 1 |
7.121 to 1 |
|
Second |
2.07 to 1 |
10.646 to 1 |
|
First |
3.50 to 1 |
18.000 to 1 |
|
Reverse |
350 to 1 |
18.000 to 1 |
|
INSTRUMENTS: |
|
Speedometer |
British Jaeger Model 58597. Type SC.52 |
Reduction gear for speedometer |
6/15 ratio |
HYDRAULIC DAMPERS: |
|
Girling piston type front and rear |
|
Type: Front Rear |
Luvax Girling PVA6X. Luvax Girling PVA6. |
COOLING SYSTEM: |
|
Cooling by radiator, pump and fan with thermostat
control |
Total capacity of system |
13½ pints (7.7 litres). |
Capacity of radiator |
7½ pints (4.3 litres). |
Circulation |
By pump fitted in front of cylinder block. |
Drain taps |
1. Bottom of radiator 1. Front end of cylinder block below exhaust manifold |
FUEL SYSTEM: |
|
Fuel tank capacity (level
checked by electric gauge on instrument panel) |
8 gals. (36 litres) |
Fuel delivery |
S.U. electric pump. 12-volt. Type "L". |
Carburetter |
Type H.2 Spec. 456. |
Carburretter needles |
Standard Richer Weaker "F.I." "D.K." "E.F." |
STEERING: |
|
Rack and pinion |
2.625 turns from lock to lock. |
Steering wheel |
Adjustable for length 3 in. (76.2 mm.). |
FRONT AXLE: |
|
Camber of wheel |
1˚ Neg. ±1˚. |
Castor angle |
1˚ ±½˚. |
King-pin angle |
10˚. |
Toe-in |
Nil. |
Knuckle angle |
10˚. |
FRONT SUSPENSION: Independent, with coil springing.

WIRE DIA.(GROUND) |
.538" |
MEAN COIL DIA. |
3.238" |
RATE |
435 LB/INCH |
No OF EFFECTIVE COILS |
7.34 |
FREE LENGTH |
9.82" ± 1/16" |
TO CARRY 1023 LB. AT:- |
7.47" ± 1/32" |
TO CARRY 1390 LB AT:- |
6.63" ± 1/32" |
SOLID HEIGHT |
5.025 |
REAR AXLE: |
|
Type |
Semi floating. |
Crown wheel and pinion |
Hypoid. |
Oil capacity |
2¾ pints (1.3 litre). |
Axle tooth ratio |
5.125 to 1 (8/41). |
Crown wheel and pinion backlash |
By spacers and special tools. |

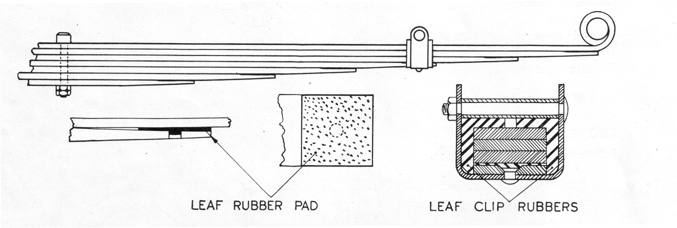

No OF LEAVES |
7 x ¼" x ½" |
WORKING LOAD |
650 LBS |
STATIC DEFLECTION |
3" |
MEAN RATE |
216.6 LBS/INS |
FREE CAMBER |
4" |
MAX. DEFLECTION |
6¼" |

WHEELS: |
|
Type |
Dunlop No. CDM.317 Ventilated disc. |
Wheel size |
4J X 15. |
Tyre size |
5.50–15. |
Tyre pressures |
Front: 22 lb. per sq. in. (1.5 kg./cm.2). Rear: 24 lb. per sq. in. (1.68 kg./cm.2). |
BRAKES: |
|
Type |
Lockheed hydraulic. Hand brake cable to rear only. |
Linings |
Ferodo M.R.19. |
Brake-drums |
9 in. diameter +.005 in./ - .000 in. (22.9cm. diameter +.127mm./ - .000mm.). |
Length of lining |
8¾ in. (22.22 cm.). |
Width |
1½ in. (3.81 cm.). |
Thickness |
3⁄16 in. (4.76 mm.). |
Number per car |
8. |
Rivets |
Hollow countersunk head (brass). |
Number of rivets per lining |
12. |
GENERAL DIMENSIONS: |
|
Wheelbase |
8 ft. 3 in. (2.515 m.). |
Track: Front Rear |
3 ft 11 3⁄8 in. (1.203 m.). 4 ft. 2 in. (1.270 m.). |
Overall length |
13 ft. 8 in. (4.165 m.). |
Overall width |
4 ft. 10 ¼ in. (1.480 m.). |
Overall height |
4 ft. 9 in. (1.448 m.). |
Ground clearance |
6 in. (15.2 cm.). |
Turning circle |
33 ft. (10.21 m.). L/H and R/H lock. |
WEIGHTS: |
|
Complete car |
20 cwt. 3 qr. (1054 kg.). |
Front |
10 cwt. (506 kg.). |
Rear |
10 cwt. 3 qtr (508 kg.). |
Chassis |
10 cwt. 2 qr. 22 lb (543 kg.). Bumpers fitted, less wings and lamps. |
Power unit (with gearbox) |
3 cwt. 2qr. 5lb. (180 kg.). |
PERFORMANCE: |
|
Brake horse-power |
46 b.h.p. at 4,800 r.p.m. |
Maximum torque |
702 lb. in. (8.1 kg.). at 2,400 r.p.m. |
Litres per ton-mile |
2480.-Top gear. |
M.p.h per 1,000 r.p.m. |
14.5. Top gear. |
K.p.h. per 1,000 r.p.m. |
23.33. Top gear. |
Engine speed per 10 m.p.h. |
689 r.p.m. Top gear. |
*Petrol consumption |
36.5 m.p.g. at 30 m.p.h. (13 km. per litre at 48 k.p.h.) 32.7 m.p.g. at 40 m.p.h. (11.5 km. per litre at 64 k.p.h.) 29.0 m.p.g. at 50 m.p.h. (10.3 km. per litre at 80 k.p.h.) |
*ACCELERATION: |
|
0—30 m.p.h. (0—40 k.p.h.) in 7.5 seconds 0—50 m.p.h. (0—80 k.p.h.) in 18.8 seconds 0—60 m.p.h. (0—100 k.p.h.) in 29.5 seconds |
|
Brake horse-power per litre capacity |
36.8. |
Maximum speed |
69 m.p.h. (100 k.p.h.) average. |
*BRAKING. DRY CONCRETE: |
30 m.p.h. (48.2 k.p.h.) 31 feet (9.45 m.). 50 m.p.h. (80.4 k.p.h.) 92 feet (28.04 m.). 70 m.p.h. (112.6 k.p.h.) 227 feet (69.19 m.). |
Hand brake braking. Dry tarmac. 30 m.p.h. (48.2 k.p.h.) 45 feet (13.7 m.). |
* Extracts from Motoring Press |
ELECTRICAL: |
|
12-volt ignition and equipment; coil ignition controlled by automatic advance and retard mechanism, incorporated in the distributor. Dynamo output controlled by automatic compensated voltage control unit. |
Starter type |
Lucas Model M.35.G1 |
Starter switch |
Lucas Model ST.18. Type L/15. |
Distributor type |
Lucas Model DKYH.4A. (Part No. 40089). Later models are Part No. 40058F. Rotation - anti clock. |
Dynamo* |
Lucas Model CP.39.PV2. |
Dynamo speed |
1.16 engine speed. |
Coil type |
Lucas Model Q12—8. Type L/O. |
Control unit* |
Lucas Model RF.95/2. Type L/2, 12 volt. |
Battery |
Lucas 12-volt, 51-amp.-Type GTXW.9A. |
Windscreen wiper |
Lucas Model CR.2.DA.36. |
*It is important that control box Lucas Model RF.95/2 is used in conjunction with the Lucas Model CP.39 type dynamos |
LAMPS: |
|
Headlamps |
Lucas Model MBD.140. |
Sidelamps |
Lucas Model 1130. |
Fog-lamp |
Lucas Model FT.57. Type L/1. |
Stop and tail-lamp |
Lucas Model ST.50. |
Reverse and tail-lamp |
Lucas Model RT.50 |
Reprints of the full Maintenance Manual And Instruction Book for the MG YA can be obtained from the MG Octagon Car Club. See the Links page for contact details. Also, full sets of all the manuals for MG Y, Y/T and YB are available on CD from YZ Publications Inc.
|
